A26 INVADER
Instruction Manual
28

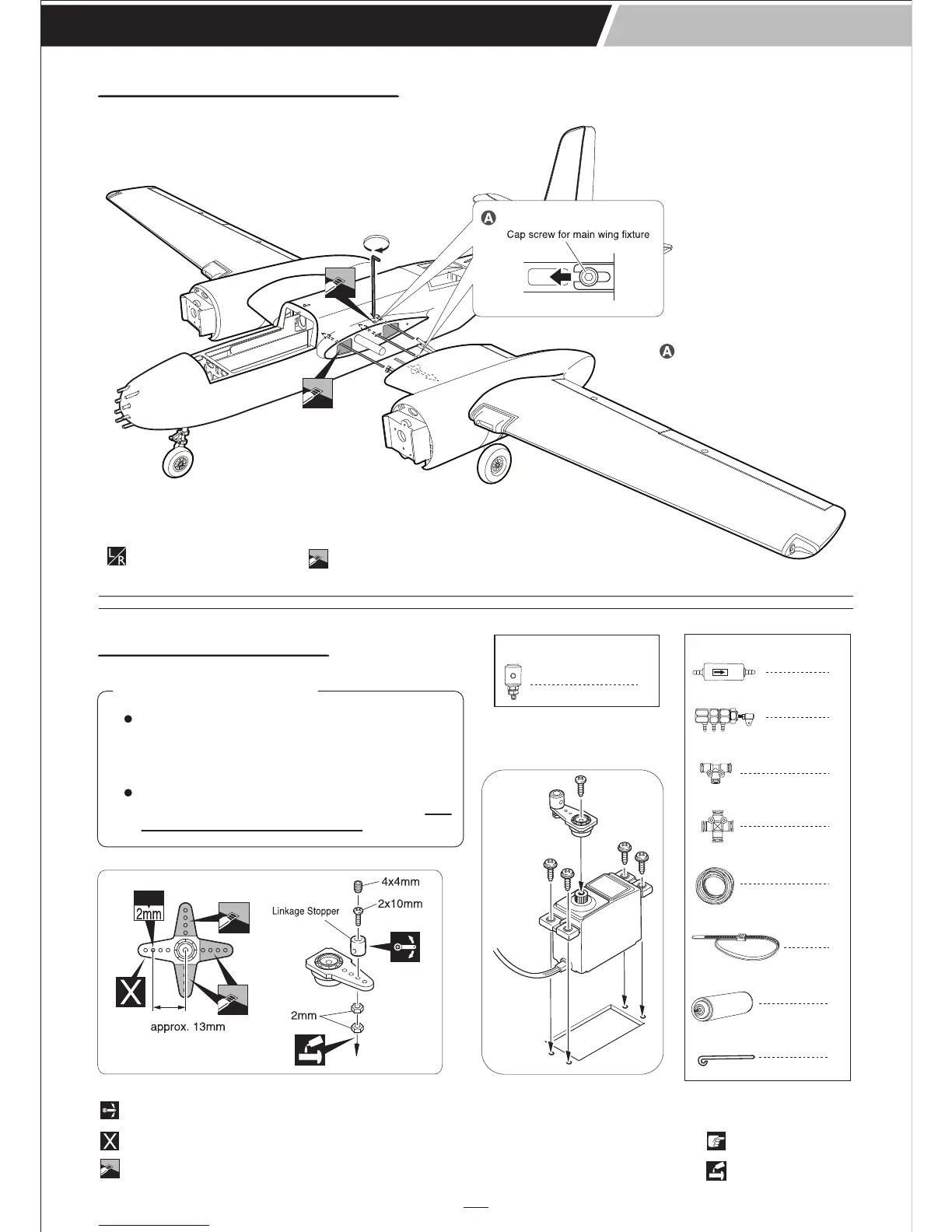

SECURE The Wing To The Fuselage
Attach the wings to the fuselage and secure the
wing panels.
Assemble left and right
sides the same way.
Pay close attention
Must be purchased separately!
Cut off shaded portion
Connector
1
INSTALLING THE AIR VALVE
IMPORTANT SUGGESTION
Please note that you must use the high torque
servo for controlling the air valve. The
minimum torque of servo is 7kg.
Before installing the air valve, please test the
valve how does it work. If it doesn’t move
smoothly, please clean the air valve as showing
at the end of the manual.
Apply threadlocker
(screw cement).
Control Valve
Retract Control Valve
3 Way connector
3.8x4500mm Air Hose
Air Tank Big
1.7x70mm Push Rod
1
1
1
1
1
1
4 Way connector
2
Zip Tie
2
Ensure smooth, non-binding
movement when assembling
Cut off shaded portion
Main wing must be inserted and
attached completely before fixing
with screw.
To Next Page
