EXTRA 300S
Instruction Manual
43
Control horn
42
Remove the covering
40
95mm
22mm
22mm
120mm
22mm
22mm

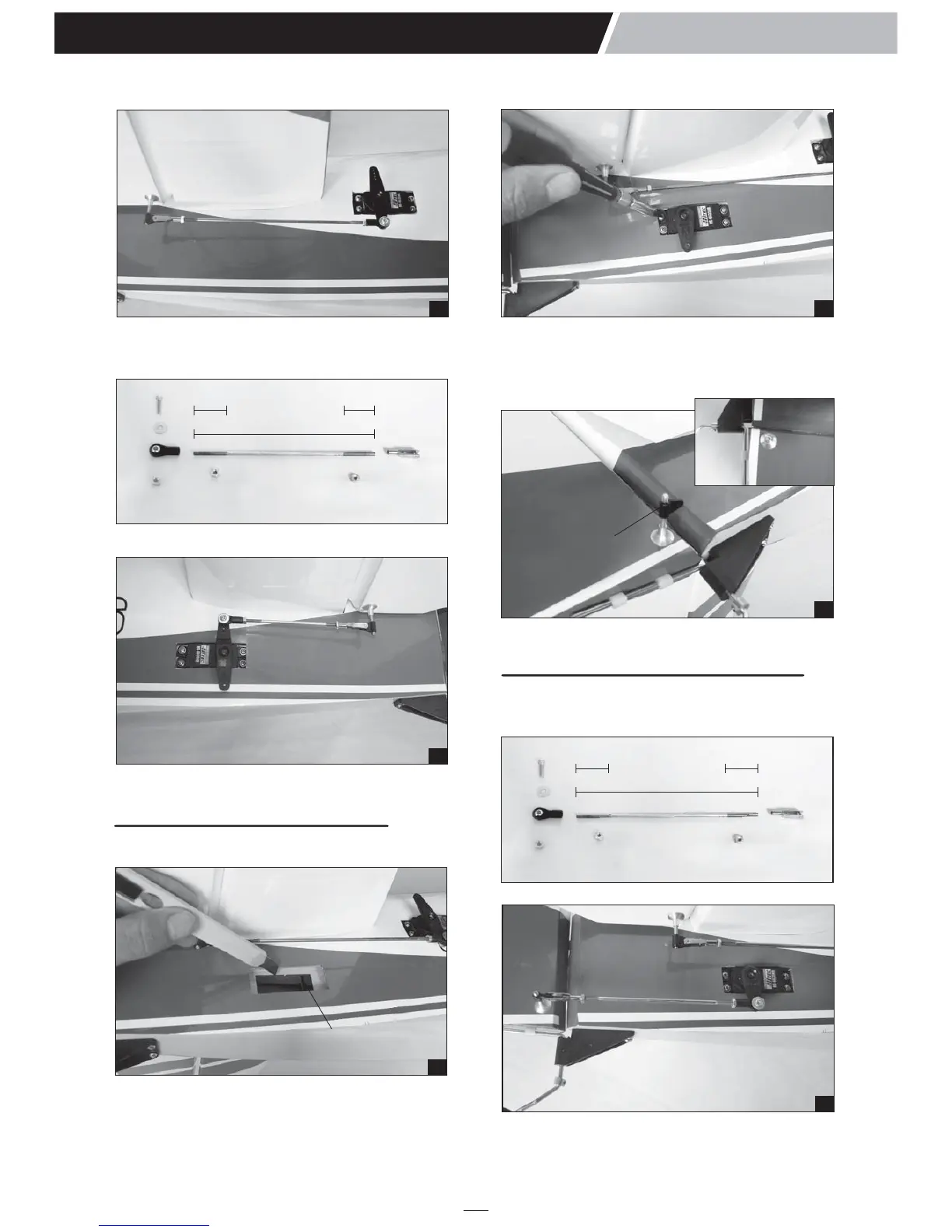

The elevator linkages are assembled as shown below
INSTALLING THE RUDDER SERVO
1. Remove the covering from the fuselage.
2. Install the rudder servo to the fuselage as
shown.
3. The control horn should be mounted on the
right side of the rudder at the leading edge, in
line with the rudder pushrod.
INSTALLING THE RUDDER LINKAGES
. Repeat these step as installing the aileron
linkages (Page 4 and page 5).
To Next Page
