SEE E-STOP
SEE CONTOL PANEL
#16 1 INLET
#24 1 OUTLET
#27 2 INLET
#26 TO AIRLOCK POPPET PILOT
#25 TO SHUTTLE POPPET PILOT
#40 FROM TRIGGER FILTER OUTLET
#38 TO TRIGGER SUPPLY
BULKHREAD FITTING
#47 TO AUGER MOTOR
POPPET VALVE PILOT
#21 TO BALL VALVE
ACTUATOR
#10 FROM CONTROL REG
#51 FROM TIMING CYLINDER
ELBOW
#49 TO TIMING CYLINDER
WYE
#37 FROM ARM VALVE OUTLET
#36 TO ARM INDICATOR
#44-TO BLAST PILOT POPPET PILOT
#14 TO ARM VALVE INLET
#29 FROM DISARM VALVE OUTLET
SEE DISTRIBUTION
SEE SYSTEMS
SEE DISTRIBUTION
SEE FRAME MOUNTED COMPONENTS
ARM "OR" VALVE
ARM "YES" VALVE
TRIGGER "YES" VALVE
PURGE "YES" VALVE
ENABLE "YES" VALVE
VIBE "NOT" VALVE
VIBE INTERVAL TIMER
ETM SWITCH
PURGE DELAY SPEED CONTROL
ARM CONTROL VALVE
4-WAY ELBOW
SAFETY SCREEN VALVE
29
14
10
51
47
38
40
25 26
27
24
16
37
36,34
34
44
11 11 12 12
13 13 15
15
18 20
20
17
46
46
45
43
61
41
41
59
32
32
30
30
31
31 33
33,35
35
17 23
23 22
42 48
45
22
V2
AT1
FCV1
CV1
L1
L2
L3
L4
L5
L6
T1
PS1

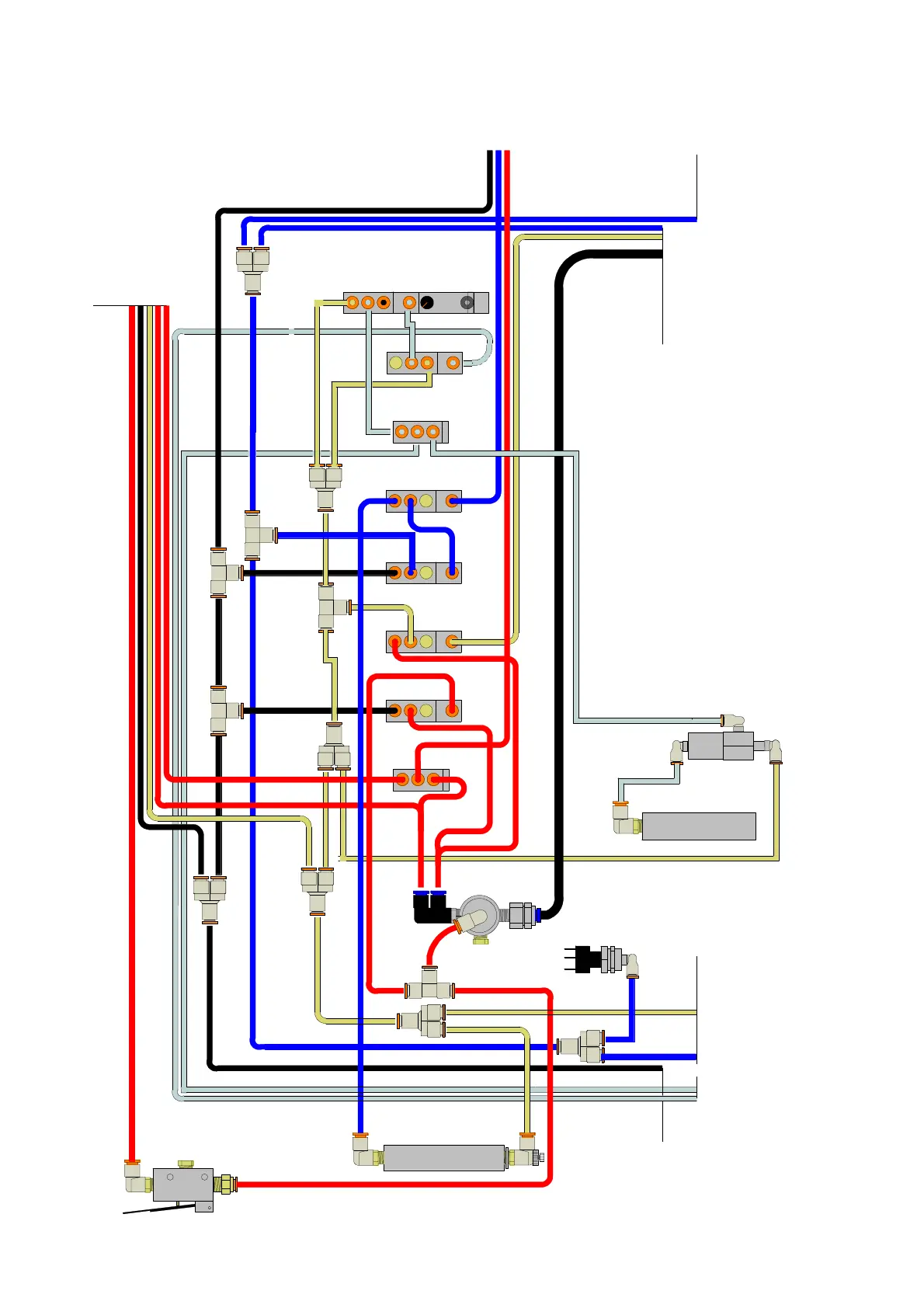

30140-TUBEC PHX-200 TUBE DIAGRAM SHEET 3 OF 4 CONTROL SHELF
a
A
X
b
a
A
b
60
42
59
62
43
61
1921
18
19
62
63
48 64
60
L7
VIBE "OR" VALVE
64
49 63
VIBE ON START VALVE
PV1
AT3
