Stonex S900 Receiver

Receiver Appearance


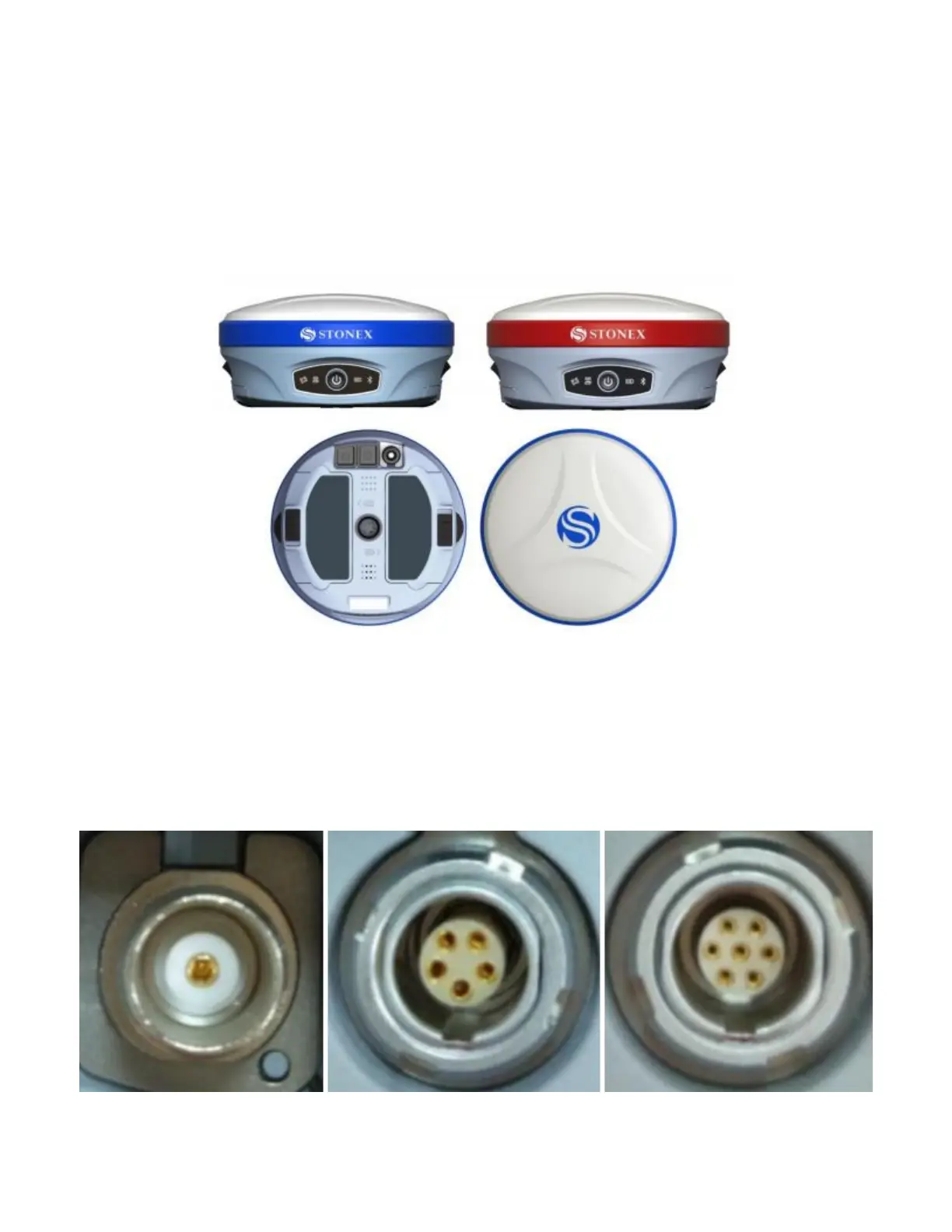

The S900 series receiver is cylindrical with a diameter of 156mm, a height of 76mm and a weight of 1.2kg. The front side of
the receiver is control panel, which consists of a power button and four indicators. The bottom are interfaces of UHF
antenna and cables. PUSH buttons on both sides of the receiver are used to open the bottom battery cover.


Interfaces

The bottom interface of the instrument is shown below, and the protective plug covered on it is used for the dustproof and
waterproof of the external interface. The TNC connector is used to connect to the built-in radio antenna (Left: UHF interface).
The five-pin LEMO connector (Middle) is used to connect external power supply or external radio. The seven-pin LEMO
connector (Right) is used for data communication (data communication between the receiver and the computer and the
handbook).




