7ICON 300/700

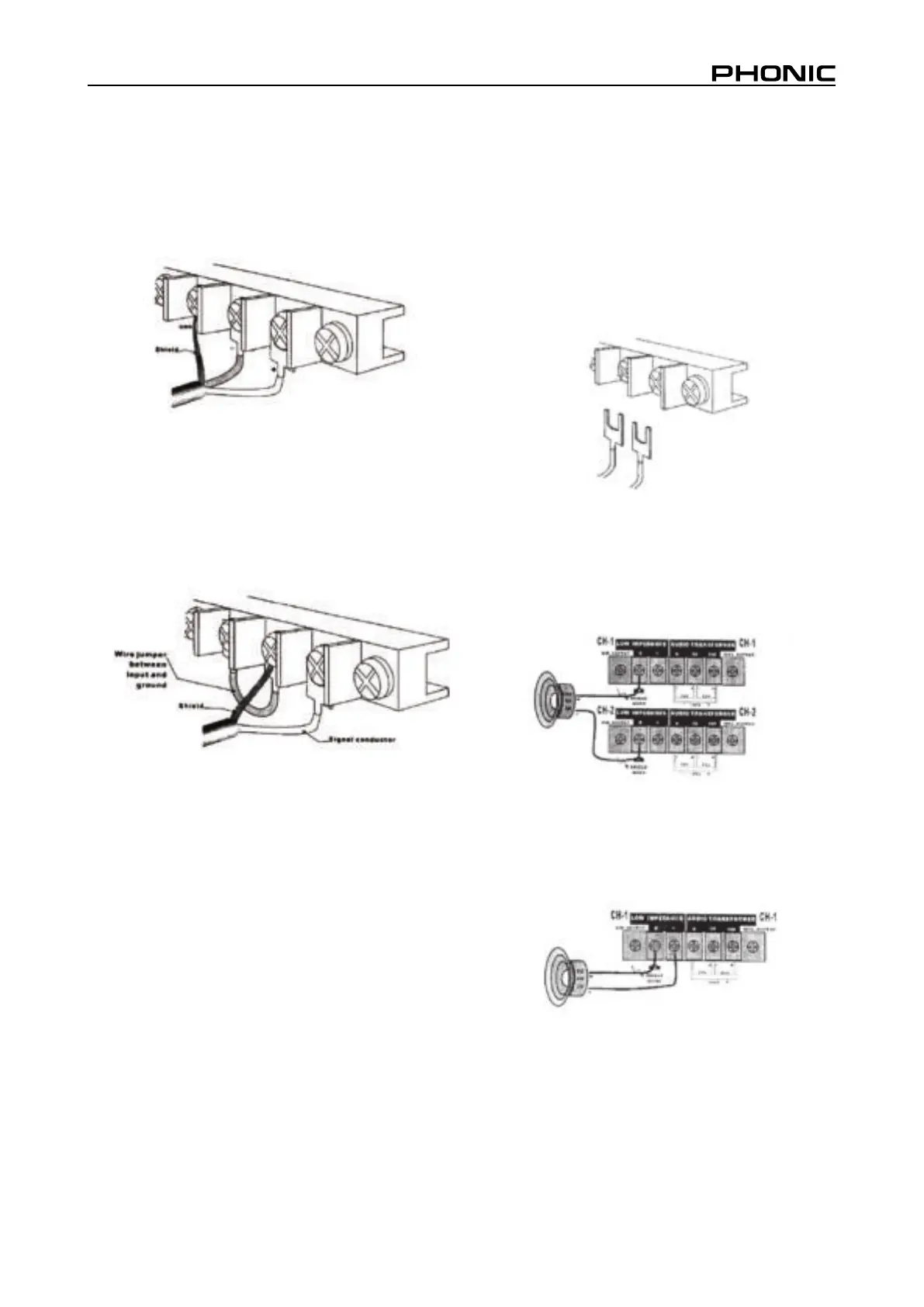

Balance Barrier Strip Input
Connections
Balanced connection - Attach as shown. Connect
the (+) wire and ground wire to terminal pins as
marked.
Unbalanced connection -
Attach input signal
wires as shown. Use the non-inverting (+) input
and the ground terminals of the header, and also
connect a wire jumper between the inverting (-)
input and the ground terminal. The wire jumper will
prevent a reduction in gain caused by a floating
unbalanced input.
Input sensitivities - Audio signals of these levels
will produce full rated output power at 8 ohms.
ICON 300 - 1.02Volts (+2.4dBu)
ICON 700 - 1.02Volts (+2.4dBu)
Barrier Strip Output Connections
Barrier strips located on the rear panel allow speaker
cable connections to the amplifier output. See the
diagrams for details on connecting speakers and/
or distributed (23-, 70-, or 100-volt) lines. Insulated
connectors of the type shown are recommended.
Always make sure the amplifier is turned off
before you change any output connections.
Loose screw terminals, insert wire connectors
under screws. Tighten screw terminals.
Direct low impedance:
Output connection for Icon 300/700,
bridge mono mode
Output connection for Icon 300/700,
direct low impedance
