5MAX 1000 | MAX 1500 | 2500
English
BRIDGE MONO
This mode is for those who need high level output. It combines the power of both channels to produce the maximum amount
of power the unit can handle. Make sure your speaker can handle higher wattage this mode oers. Remember, the minimum
impedance requirement is 4 ohm. When bridge mono, make sure only Channel 1 input is in use. When using speakon,
treat PIN 1+ as the
“
+
”
and PIN 2+ as the
“
-
”
; when using binding posts, treat Channel 1 + as the
“
+
”
and Channel 2 + as
the
“
-
”
. Do not use Channel 2
’
s speakon output in this mode. When bridge mono, the gain control of Channel 1 controls

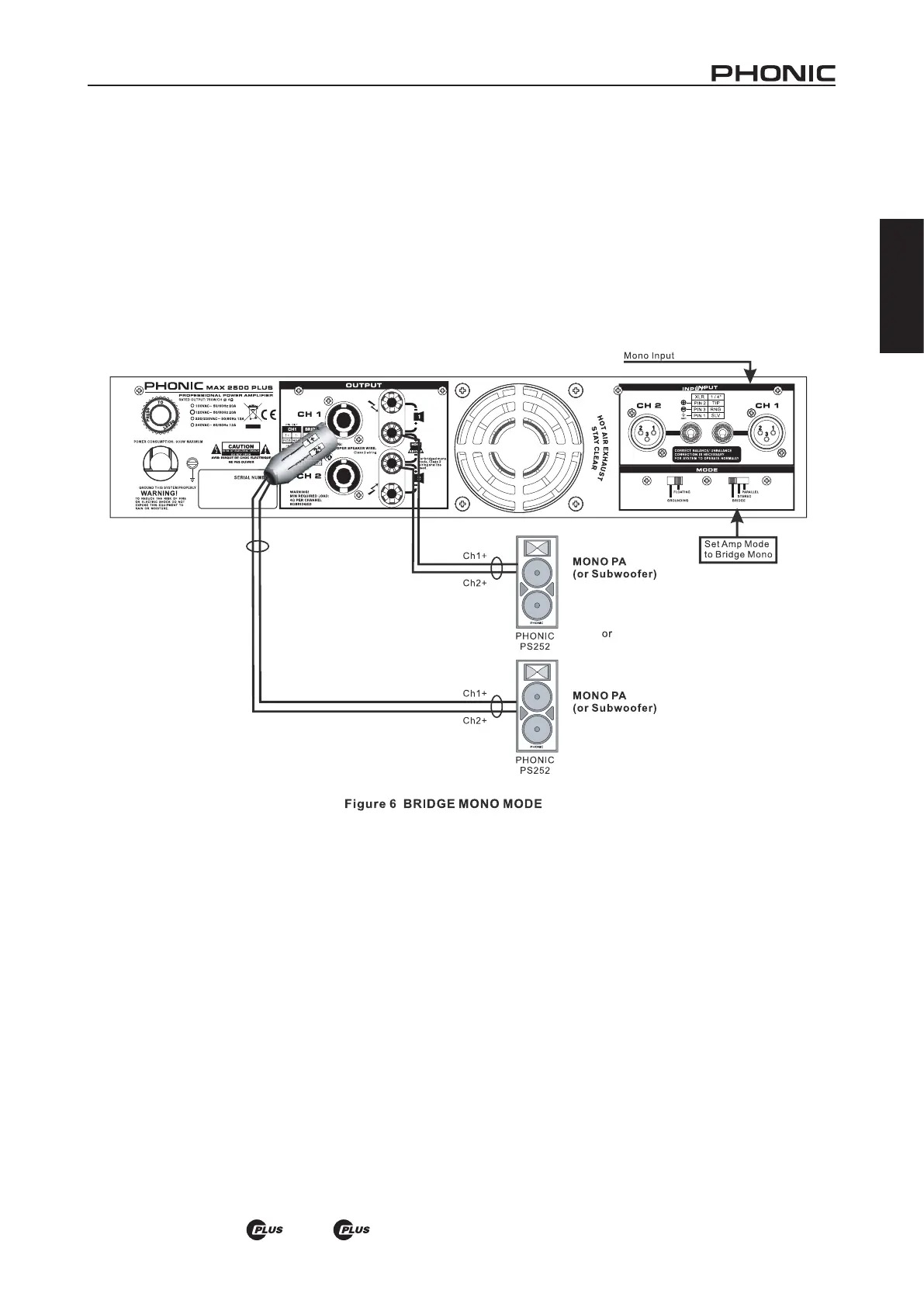

the total level output (See Figure 6).
WARNING: Bridge mono operation produces higher current output than the other two operations, thus make
sure the gain is set at the proper level and speakers being used can handle the wattage amplier produce.
Proper attention to wiring is greatly needed to prevent experiencing electric shock.
