PHONIC CORPORATION
Mm1002 SERVICE MANUAL

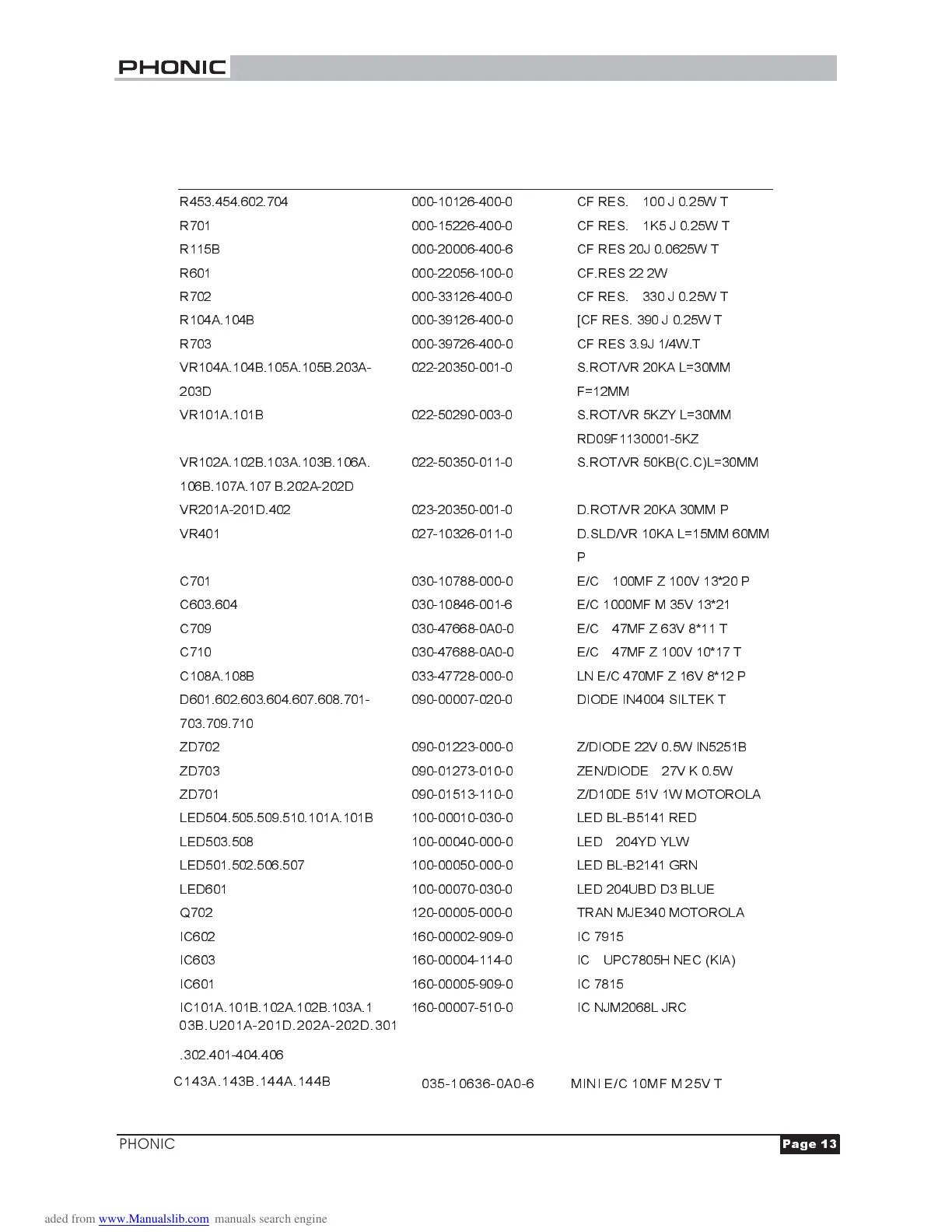

MAIN PCB-PART LIST
MAIN PCB-PART LIST
Ref. Phonic Part No. Specification
R453.454.602.704 000-10126-400-0 CF RES. 100 J 0.25W T
R701 000-15226-400-0 CF RES. 1K5 J 0.25W T
R115B 000-20006-400-6 CF RES 20J 0.0625 W T
R601 000-22056-100-0 CF.RES 22 2W
R702 000-33126-400-0 CF RES. 330 J 0.25W T
R104A.104B 000-39126-400-0 [CF RES. 390 J 0.25W T
R703 000-39726-400-0 CF RES 3.9J 1/4W.T
VR104A.104B.105A.105B.203A-
203D
022-20350-001-0 S.ROT/VR 20KA L=30MM
F=12MM
VR101A.101B 022-50290-003-0 S.ROT/VR 5KZY L=30MM
RD09F1130001-5KZ
VR102A.102B.103A.103B.106A.
106B.107A.107 B.202A-202D
022-50350-011-0 S.ROT/VR 50KB(C.C)L=30MM
VR201A-201D.402 023-20350-001-0 D.ROT/VR 20KA 30M M P
VR401 027-10326-011-0 D.SLD/VR 10KA L=15MM 60MM
P
C701 030-10788-000-0 E/C 100MF Z 100V 13*20 P
C603.604 030-10846-001-6 E/C 1000MF M 35V 13*21
C709 030-47668-0A0-0 E/C 47MF Z 63V 8*11 T
C710 030-47688-0A0-0 E/C 47MF Z 100V 10*17 T
C108A.108B 033-47728-000-0 LN E/C 470MF Z 16V 8*12 P
D601.602.603.604.607.608.701-
703.709.710
090-00007-020-0 DIODE IN4004 SILTEK T
ZD702 090-01223-000-0 Z/DIODE 22V 0.5W IN5251B
ZD703 090-01273-010-0 ZEN/DIODE 27V K 0.5W
ZD701 090-01513-110-0 Z/D10DE 51V 1W MOTOROLA
LED504.505.509.510.101A.101B 100-00010-030-0 LED BL-B5141 RED
LED503.508 100-00040-000-0 LED 204YD YLW
LED501.502.506.507 100-00050-000-0 LED BL-B2141 GRN
LED601 100-00070-030-0 LED 204UBD D3 BLUE
Q702 120-00005-000-0 TRAN MJE340 MOTOROLA
IC602 160-00002-909-0 IC 7915
IC603 160-00004-114-0 IC UPC7805H NEC (KIA)
IC601 160-00005-909-0 IC 7815
IC101A.101B.102A.102B.103A.1
03B.U201A-21D.202A-202D.301
.302.401-404.4060
160-00007-510-0 IC NJM2068L JRC
035-10636-0A0-6 MINI E/C 10MF M 25V T
C143A.143B.144A.144B
03B.U201A-201D.202A-202D.301
