PHONIC CORPORATION
Mm1002 SERVICE MANUAL

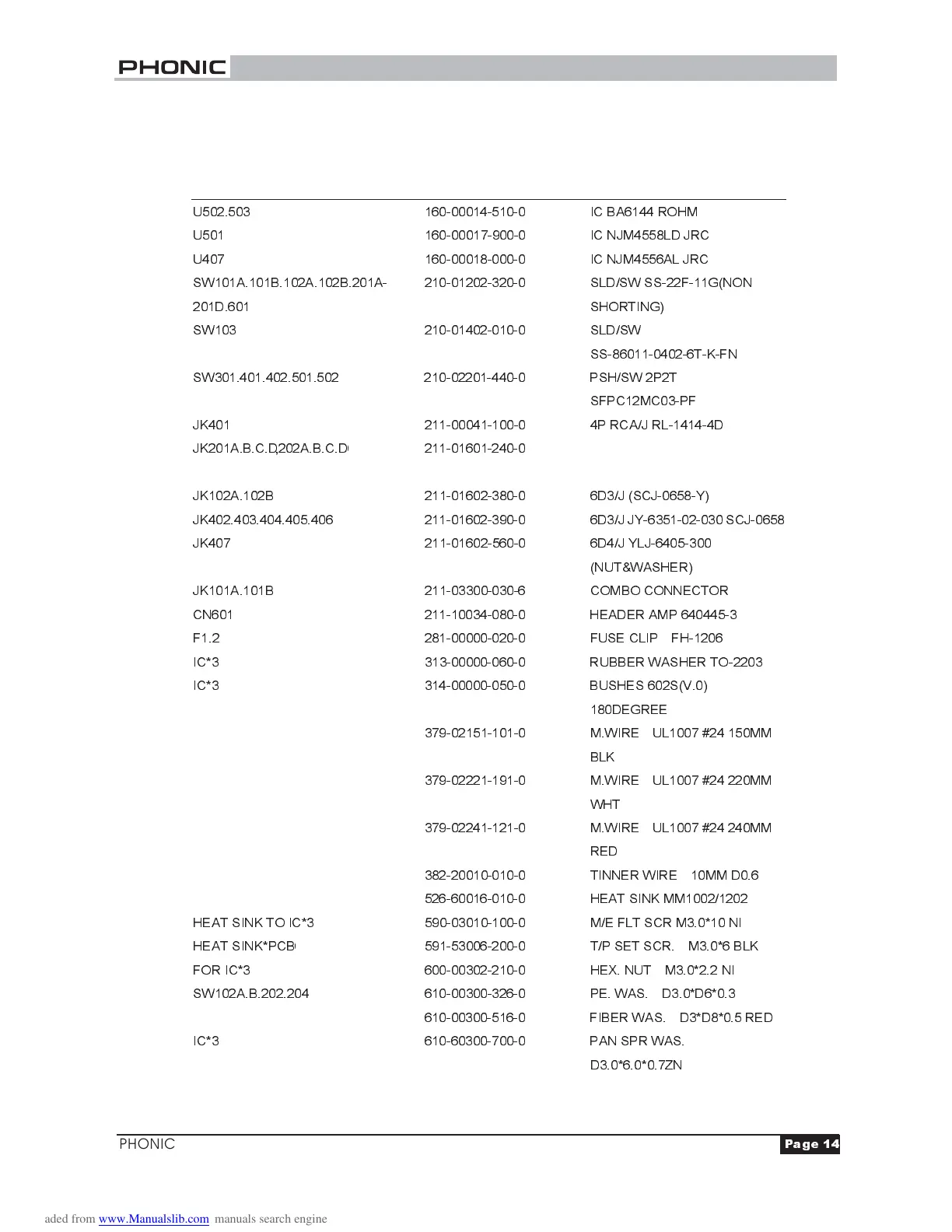

MAIN PCB-PART LIST
MAIN PCB-PART LIST
Ref. Phonic Part No. Specification
U502.503 160-00014-510-0 IC BA6144 ROHM
U501 160-00017-900-0 IC NJM4558LD JRC
U407 160-00018-000-0 IC NJM4556AL JRC
SW101A.101B.102A.102B.201A-
201D.601
210-01202-320-0 SLD/SW SS-22F-11G(NON
SHORTING)
SW103 210-01402-010-0 SLD/S W
SS-86011-0402-6T-K-FN
SW301.401.402.501.502 210-02201-440-0 PSH/S W 2P2T
SFPC12MC03-PF
JK401 211-00041-100-0 4P RCA/J RL-1414-4D
JK201A.B.C.D202A.B.C.D6D3/J
JY-6351-02-130 SCJ-0658
211-01601-240-0
JK102A.102B 211-01602-380-0 6D3/J (SCJ-0658-Y)
JK402.403.404.405.406 211-01602-390-0 6D3/J JY-6351-02-030 SCJ-0658
JK407 211-01602-560-0 6D4/J YLJ-6405-30 0
(NUT&WASHER)
JK101A.101B 211-03300-030-6 COMBO CONNECTOR
CN601 211-10034-080-0 HEADER AMP 640445-3
F1.2 281-00000-020-0 FUSE CLIP FH-1206
IC*3 313-00000-060-0 RUBBER WASHER TO-2203
IC*3 314-00000-050-0 BUSHES 602S(V.0)
180DEGREE
379-02151-101-0 M.WIRE UL1007 #24 150MM
BLK
379-02221-191-0 M.WIRE UL1007 #24 220MM
WHT
379-02241-121-0 M.WIRE UL1007 #24 240MM
RED
382-20010-010-0 TINNER WIRE 10MM D0.6
526-60016-010-0 HEAT SINK MM1002/1202
HEAT SINK TO IC*3 590-03010-100-0 M/E FLT SCR M3.0*10 NI
HEAT SINK*PCB66-748375 591-53006-200-0 T/P SET SCR. M3 .0*6 BLK
FOR IC*3 600-00302-210-0 HEX. NUT M3.0*2.2 NI
SW102A.B.202.204 610-00300-326-0 PE. WAS. D3.0*D6*0.3
610-00300-516-0 FIBER WAS. D3*D8*0.5 RED
IC*3 610-60300-700-0 PAN SPR WAS.
D3.0*6.0*0.7ZN
,
