PHONIC CORPORATION
Mm1002 SERVICE MANUAL

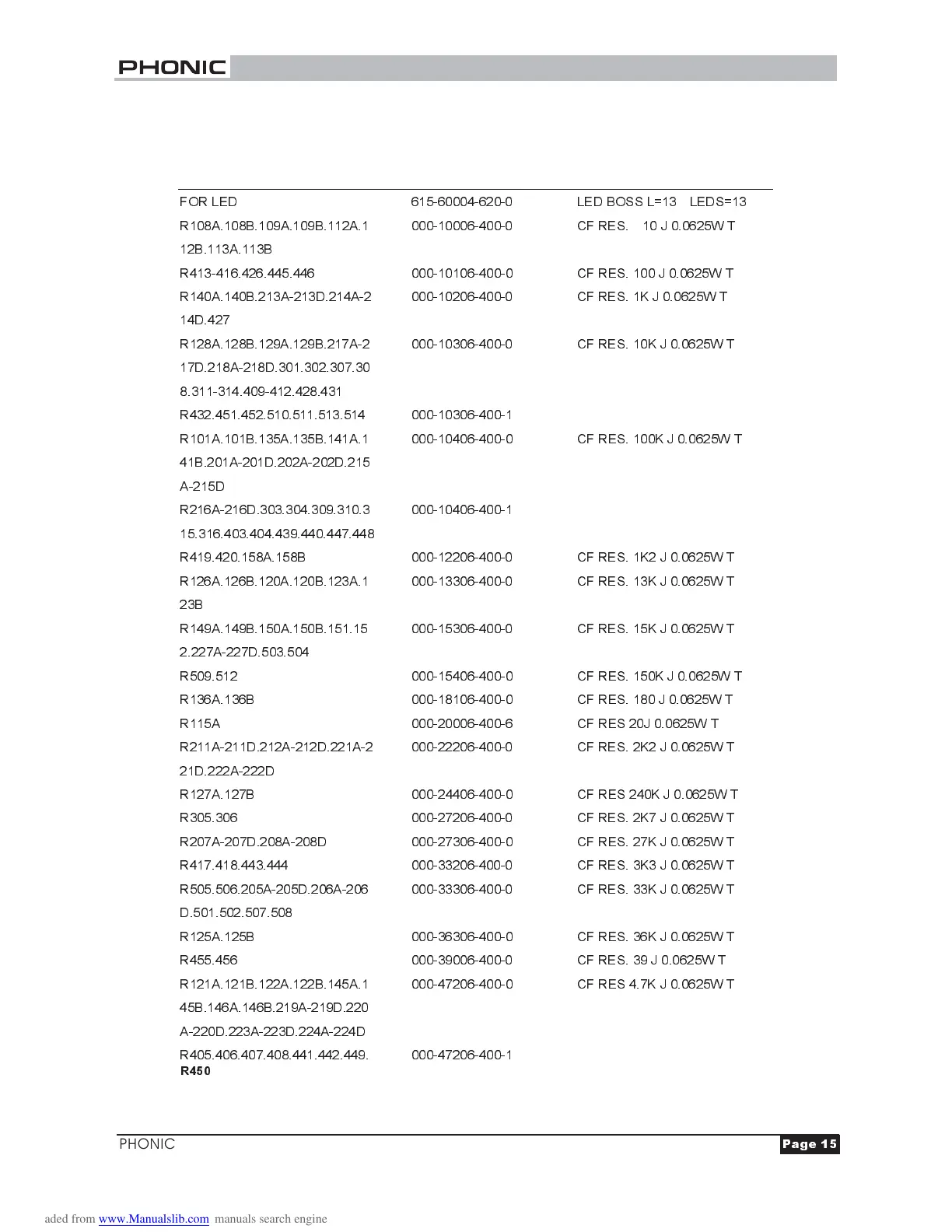

MAIN PCB-PART LIST
MAIN PCB-PART LIST
Ref. Phonic Part No. Specification
FOR LED 615-60004-620-0 LED BOSS L=13 LEDS=13
R108A.108B.109A.109B.112A.1
12B.113A.113B
000-10006-400-0 CF RES. 10 J 0.0625W T
R413-416.426.445.446 000-10106-400-0 CF RES. 100 J 0.0625W T
R140A.140B.213A-213D.214A-2
14D.427
000-10206-400-0 CF RES. 1K J 0.0625W T
R128A.128B.129A.129B.217A-2
17D.218A-218D.301.302.307.30
8.311-314.409-412.428.431
000-10306-400-0 CF RES. 10K J 0.0625W T
R432.451.452.510.511.513.514 000-10306-400-1
R101A.101B.135A.135B.141A.1
41B.201A-201D.202A-202D.215
A-215D
000-10406-400-0 CF RES. 100K J 0.0625W T
R216A-216D.303.304.309.310.3
15.316.403.404.439.440.447.448
000-10406-400-1
R419.420.158A.158B 000-12206-400-0 CF RES. 1K2 J 0.0625W T
R126A.126B.120A.120B.123A.1
23B
000-13306-400-0 CF RES. 13K J 0.0625W T
R149A.149B.150A.150B.151.15
2.227A-227D.503.504
000-15306-400-0 CF RES. 15K J 0.0625W T
R509.512 000-15406-400-0 CF RES. 150K J 0.0625W T
R136A.136B 000-18106-400-0 CF RES. 180 J 0.0625W T
R115A 000-20006-400-6 CF RES 20J 0.0625 W T
R211A-211D.212A-212D.221A-2
21D.222A-222D
000-22206-400-0 CF RES. 2K2 J 0.0625W T
R127A.127B 000-24406-400-0 CF RES 240K J 0.0625W T
R305.306 000-27206-400-0 CF RES. 2K7 J 0.0625W T
R207A-207D.208A-208D 000-27306-400-0 CF RES. 27K J 0.0625W T
R417.418.443.444 000-33206-400-0 CF RES. 3K3 J 0.0625W T
R505.506.205A-205D.206A-206
D.501.502.507.508
000-33306-400-0 CF RES. 33K J 0.0625W T
R125A.125B 000-36306-400-0 CF RES. 36K J 0.0625W T
R455.456 000-39006-400-0 CF RES. 39 J 0.0625W T
R121A.121B.122A.122B.145A.1
45B.146A.146B.219A-219D.220
A-220D.223A-223D.224A-224D
000-47206-400-0 CF RES 4.7K J 0.0625W T
R405.406.407.408.441.442.449. 000-47206-400-1
R450
