Mm1002 SERVICE MANUAL

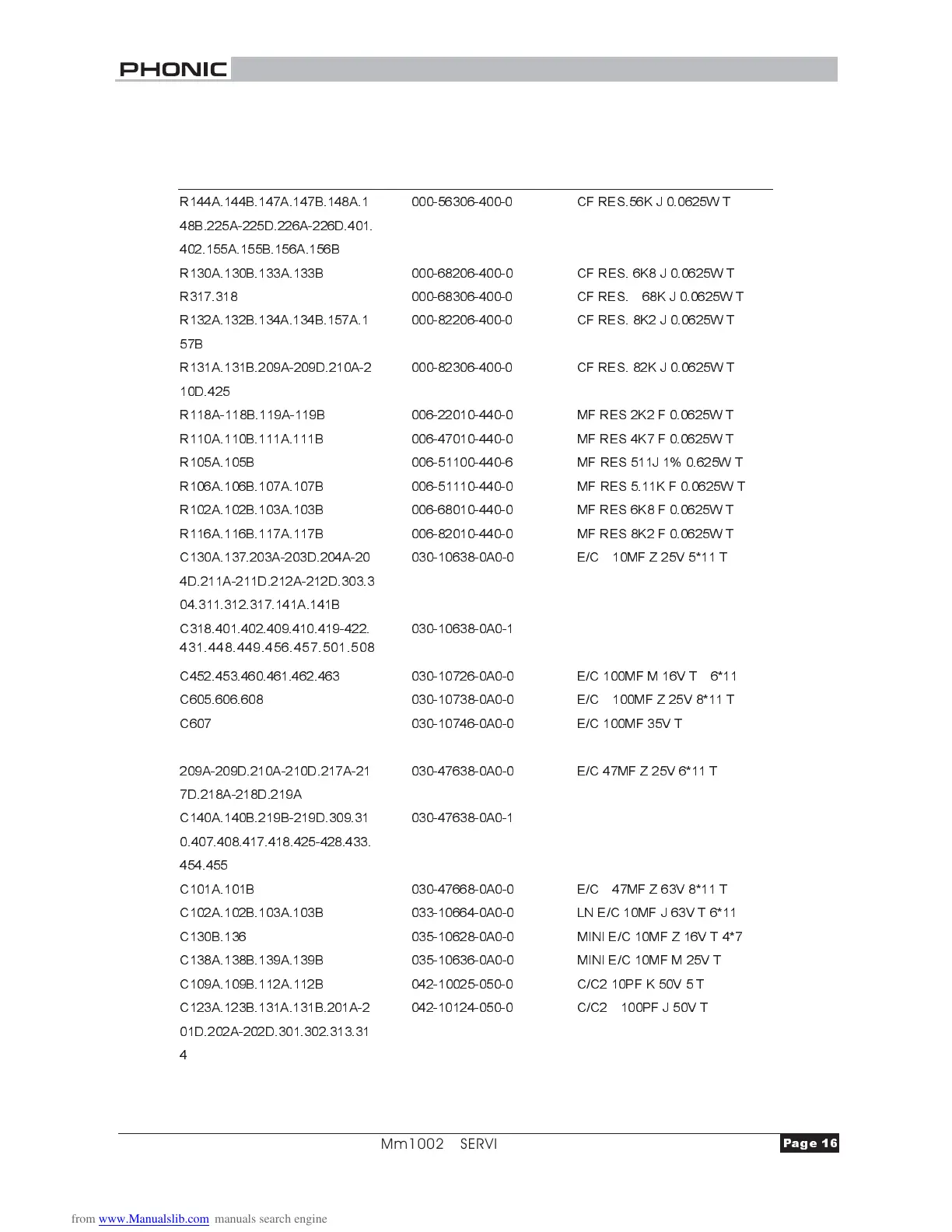

MAIN PCB-PART LIST
MAIN PCB-PART LIST
Ref. Phonic Part No. Specification
R144A.144B.147A.147B.148A.1
48B.225A-225D.226A-226D.401.
402.155A.155B.156A.156B
000-56306-400-0 CF RES.56K J 0.0625W T
R130A.130B.133A.133B 000-68206-400-0 CF RES. 6K8 J 0.0625W T
R317.318 000-68306-400-0 CF RES. 68K J 0.0625W T
R132A.132B.134A.134B.157A.1
57B
000-82206-400-0 CF RES. 8K2 J 0.0625W T
R131A.131B.209A-209D.210A-2
10D.425
000-82306-400-0 CF RES. 82K J 0.0625W T
R118A-118B.119A-119B 006-22010-440-0 MF RES 2K2 F 0.0625W T
R110A.110B.111A.111B 006-47010-440-0 MF RES 4K7 F 0.0625 W T
R105A.105B 006-51100-440-6 MF RES 511J 1% 0.625W T
R106A.106B.107A.107B 006-51110-440-0 MF RES 5.11K F 0.0625W T
R102A.102B.103A.103B 006-68010-440-0 MF RES 6K8 F 0.0625 W T
R116A.116B.117A.117B 006-82010-440-0 MF RES 8K2 F 0.0625 W T
C130A.137.203A-203D.204A-20
4D.211A-211D.212A-212D .303 .3
04.311.312.317.141A.141B
030-10638-0A0-0 E/C 10MF Z 25V 5*11 T
C318.401.402.409.410.419-422.
431.448.44956.457.501-508.4
030-10638-0A0-1
C452.453.460.461.462.463 030-10726-0A0-0 E/C 100MF M 16V T 6*11
C605.606.608 030-10738-0A0-0 E/C 100MF Z 25V 8*11 T
C607C115A.B119A.B126A.B128
A.B133A.B
030-10746-0A0-0 E/C 100MF 35V T
209A-209D.210A-210D.217A-21
7D.218A-218D.219A
030-47638-0A0-0 E/C 47MF Z 25V 6*11 T
C140A.140B.219B-219D.309.31
0.407.408.417.418.425-428.433.
454.455
030-47638-0A0-1
C101A.101B 030-47668-0A0-0 E/C 47MF Z 63V 8*11 T
C102A.102B.103A.103B 033-10664-0A0-0 LN E/C 10MF J 63V T 6*11
C130B.136 035-10628-0A0-0 MINI E/C 10MF Z 16V T 4*7
C138A.138B.139A.139B 035-10636-0A0-0 MINI E/C 10MF M 25V T
C109A.109B.112A.112B 042-10025-050-0 C/C2 10PF K 50V 5 T
C123A.123B.131A.131B.201A-2
01D.202A-202D.301.302.313.31
4
042-10124-050-0 C/C2 100PF J 50V T
431.448.449.456.457.501.508
To Next Page
