PHONIC CORPORATION
2=C A "2=CA %
Mm1002 SERVICE MANUAL

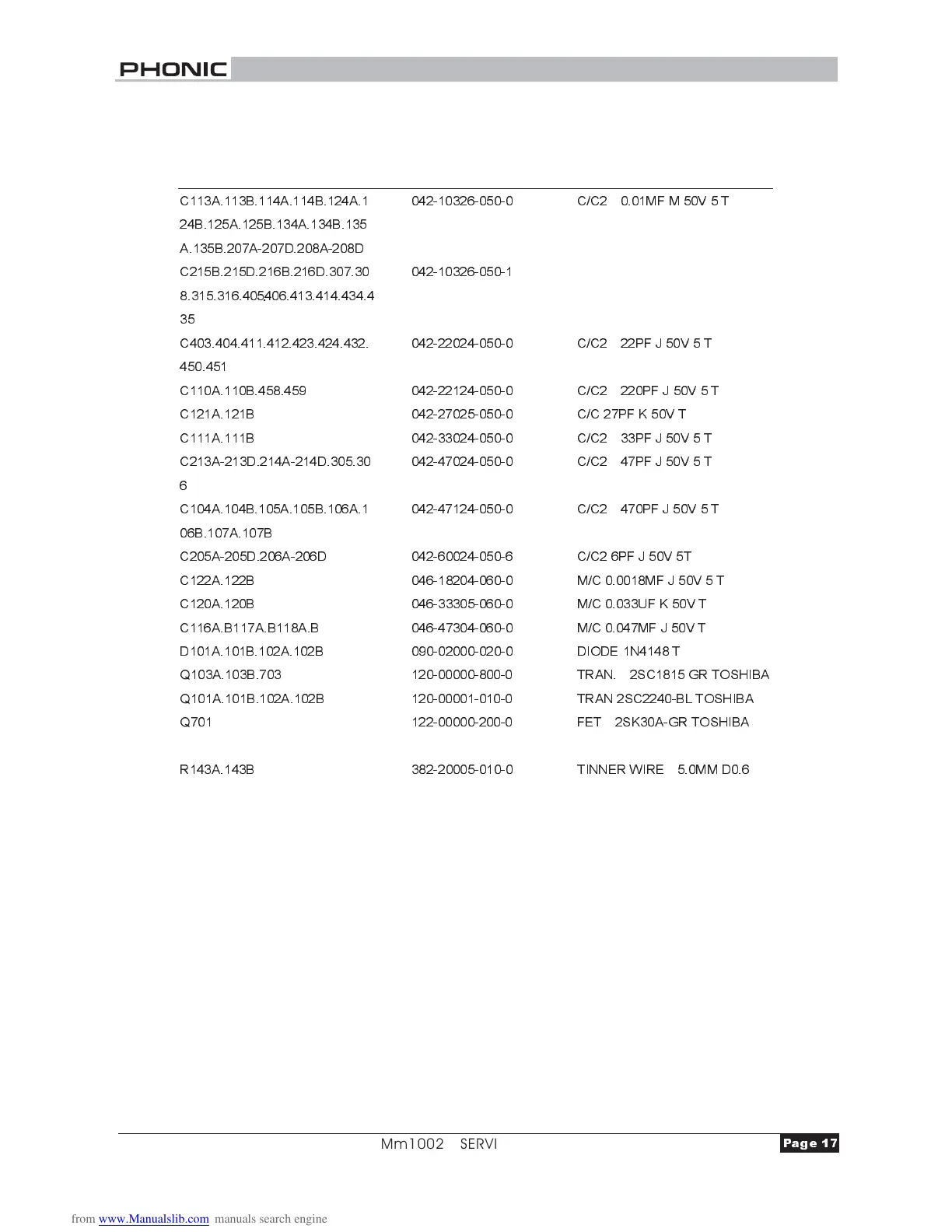

MAIN PCB-PART LIST
MAIN PCB-PART LIST
Ref. Phonic Part No. Specification
C113A.113B.114A.114B.124A.1
24B.125A.125B.134A.134B.135
A.135B.207A-207D.208A-208D
042-10326-050-0 C/C2 0.01 MF M 50V 5 T
C215B.215D.216B.216D.307.30
8.315.316.405406.413.414.434.4
35
042-10326-050-1
C403.404.411.412.423.424.432.
450.451
042-22024-050-0 C/C2 22PF J 50V 5 T
C110A.110B.458.459 042-22124-050-0 C/C2 220PF J 50V 5 T
C121A.121B 042-27025-050-0 C/C 27PF K 50V T
C111A.111B 042-33024-050-0 C/C2 33PF J 50V 5 T
C213A-213D.214A-214D.305.30
6
042-47024-050-0 C/C2 47PF J 50V 5 T
C104A.104B.105A.105B.106A.1
06B.107A.107B
042-47124-050-0 C/C2 470PF J 50V 5 T
C205A-205D.206A-206D 042-60024-050-6 C/C2 6PF J 50V 5T
C122A.122B 046-18204-060-0 M/C 0.0018MF J 50V 5 T
C120A.120B 046-33305-060-0 M/C 0.033UF K 50V T
C116A.B117A.B118A.B 046-47304-060-0 M/C 0.047MF J 50V T
D101A.101B.102A.102B 090-02000-020-0 DIODE 1N4148 T
Q103A.103B.703 120-00000-800-0 TRAN. 2SC1815 GR TOSHIBA
Q101A.101B.102A.102B 120-00001-010-0 TRAN 2SC2240-BL TOSHIBA
Q701 122-00000-200-0 FET 2SK30A-GR TOSHIBA
290-61002-002-0 MM1002A PCB
R143A.143B 382-20005-010-0 TINNER WIRE 5.0MM D0 .6
.
