CHANNEL STRIP DESCRIPTION

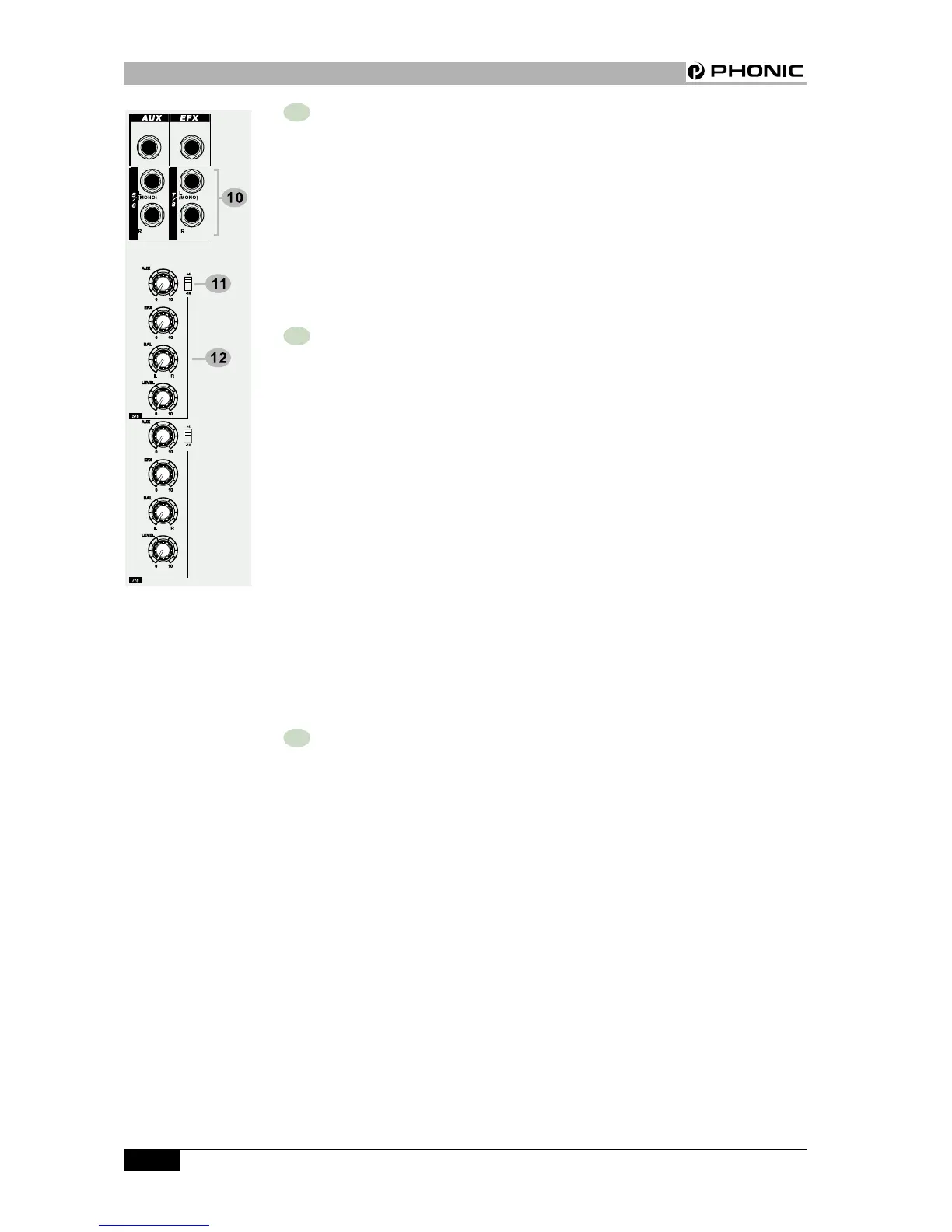

10 STEREO INPUT
These high impedance inputs ac-
cept 2-pole phone jacks. Use these
inputs for keyboards, drum
machines, synths, tape machine or
processing units. If the source sig-
nal is mono please plugs into the
left channel socket only.
11 +4/-10 SWITCH
The stereo input channel accept 1/
4“ phone jacks. It provides two in-
put sensitivities .The –10dBV
should be selected for amateur type
machine or HIFI systems, most
professional equipment uses input
and output levels of +4dBu. This
switch allows you to match the
sources connected to the stereo
input channel to either standard,
which is important to ensure the
best possible sound quality, start
with the switch +4, if you can‘t
achieve an enough signal level, se-
lect to –10dBV.
12 BAL (BALANCE) CONTROL
The BALANCE control sets the
amount of the channel signal feed-
ing the MAIN mix output, allows
you to balance the source in the
stereo image. When the control
knob turns fully to the left or right,
you send only that side of the sig-
nal to the mix.
