PHOTON Solar - Battery Pack and Receiver Unit; Solar Panel

5
F. Dry Contact Cable 30cm (Receiver kit)
G. 3.5mm mono to USB cable, 1m ((Receiver kit)
H. Cable clips with double sided tape (Receiver kit)
I. Crown & Drive wheel, 78mm (ordered separately)
J. Motor (Motor kit)
K. Extension cables 5m, 10m (order separately)
2.1 Battery Pack / Receiver Unit
The battery pack / receiver unit is what drives and controls the motor.
There are 2 components within this housing.
• Battery, this is where the power/charge is stored and supplies the motor with power to operate. The battery is
recharged via the solar panel and power management electronics
• Receiver unit, this contains the electronics that communicate with the motor, remote control and automation
system.

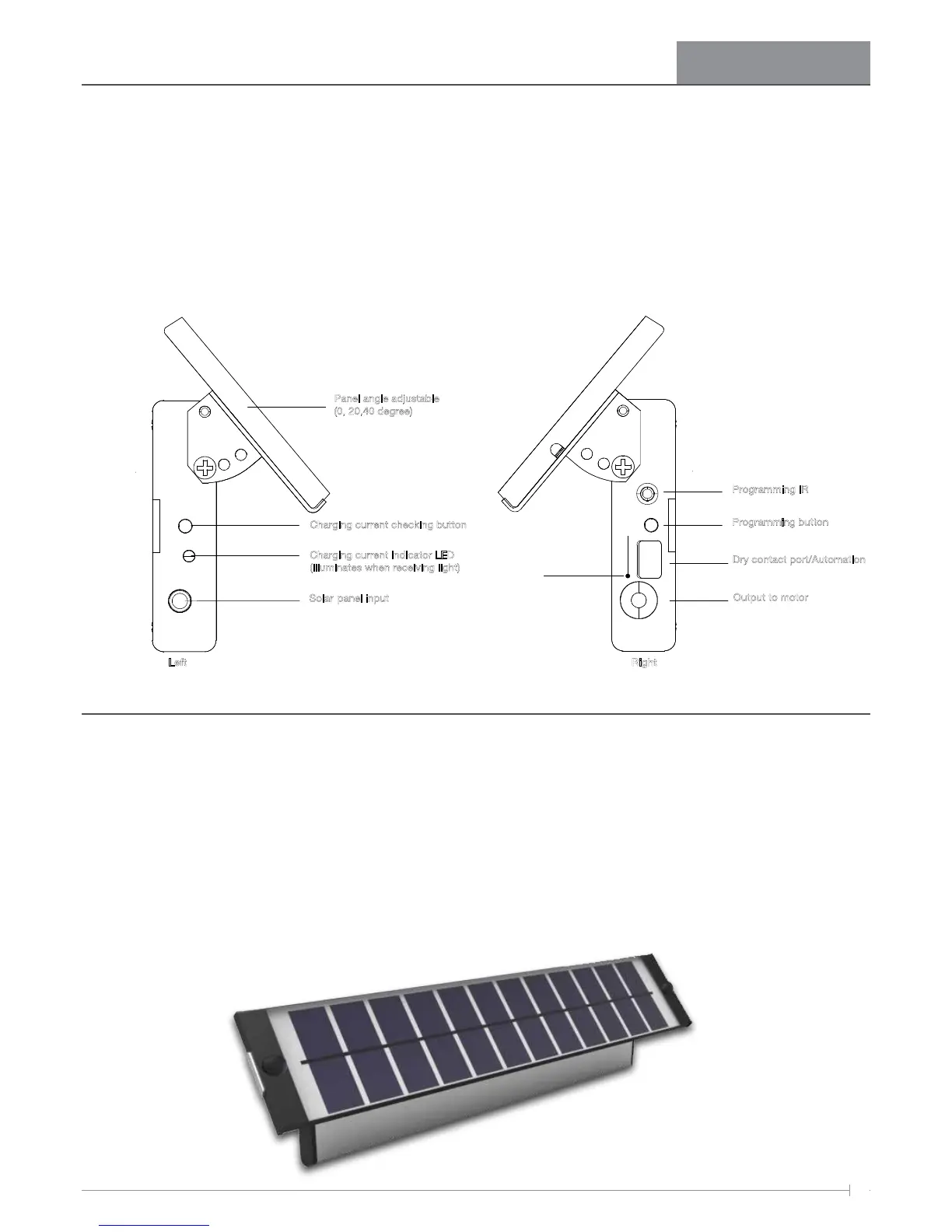

2. Parts Description
Panel angle adjustable
(0, 20,40 degree)
Charging current checking button
Charging current indicator LED
Solar panel input
Left Right
Programming
b
utton
Dry cont
act port/Automation
Output to motor
P
rogramming IR
(illuminates when receiving light)
2.2 Solar Panel
The solar panel is required to charge the integrated battery which powers the awning motor.
When mounting the solar panel, make sure it is located to capture as much direct sunlight as possible. This may not be
where the awning is located, in which case extension cables may be required.
Brackets have been designed to adjust at 0°, 20° & 40° to angle to the best position to capture direct sunlight
Image 1
Image 2
RF Antenna
