3.1 Inserting motor in tube
The following step is only required if you have not ordered a complete blind.

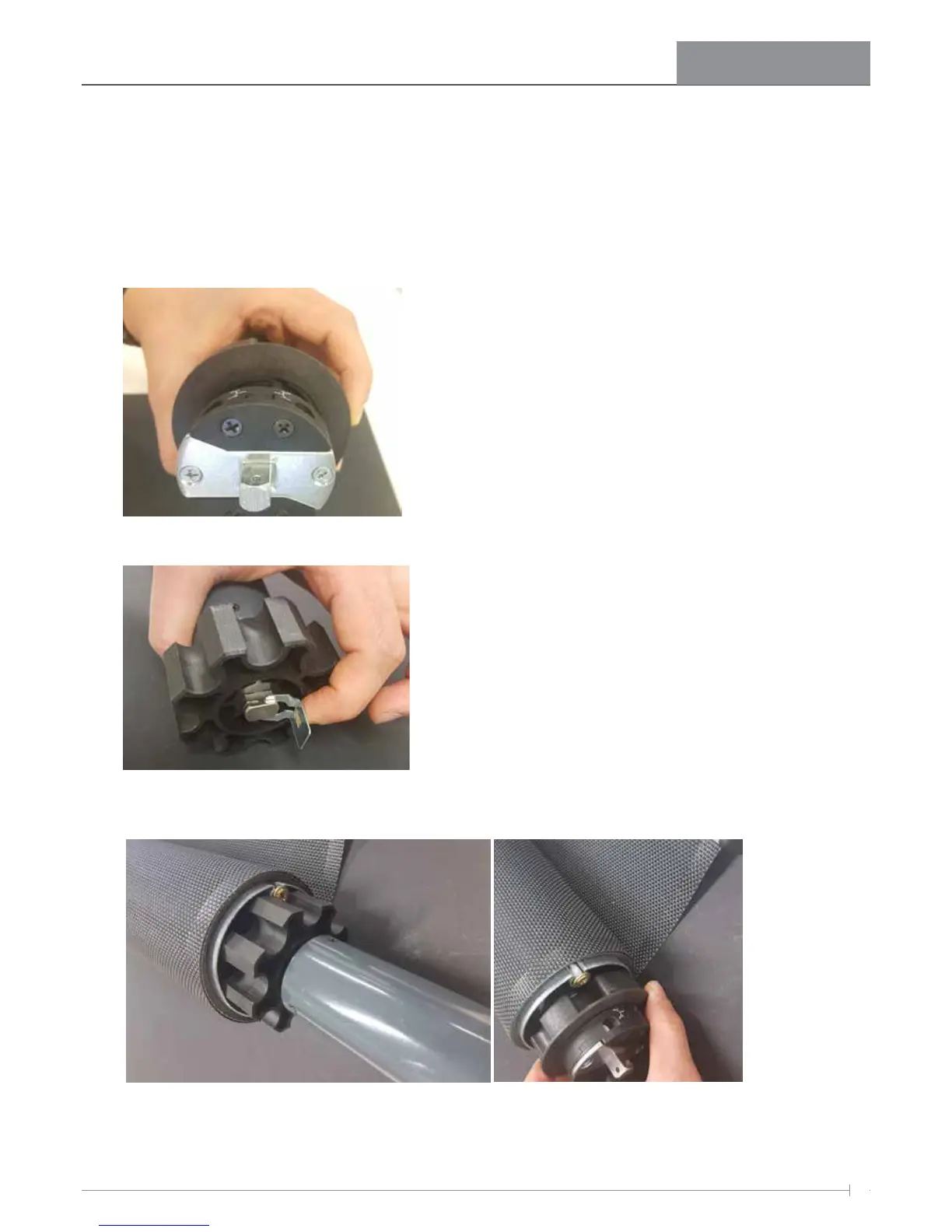

Before the motor is inserted into the Awning tube, both Crown and Drive wheels will need to be attached to the motor.
Firstly slide the Crown wheel over the motor and match up the notch on the Crown wheel with the spline on the motor
collar.
Attach the Drive wheel to the shaft of the motor and slide the lock-in clip onto the end of the shaft.
Once Crown and Drive wheel are attached to motor, slide the motor into the Awning Tube.
