3.2 Attaching Solar panel to Battery pack/receiver unit
The solar panel, brackets and battery pack/receiver all come as individual components that need to be assembled
together.
The solar panel brackets are mounted onto the battery pack/receiver in three different positions, 0°, 20° and 40°.
These three positions allow the solar panel to capture the maximum light emitted from the sun.

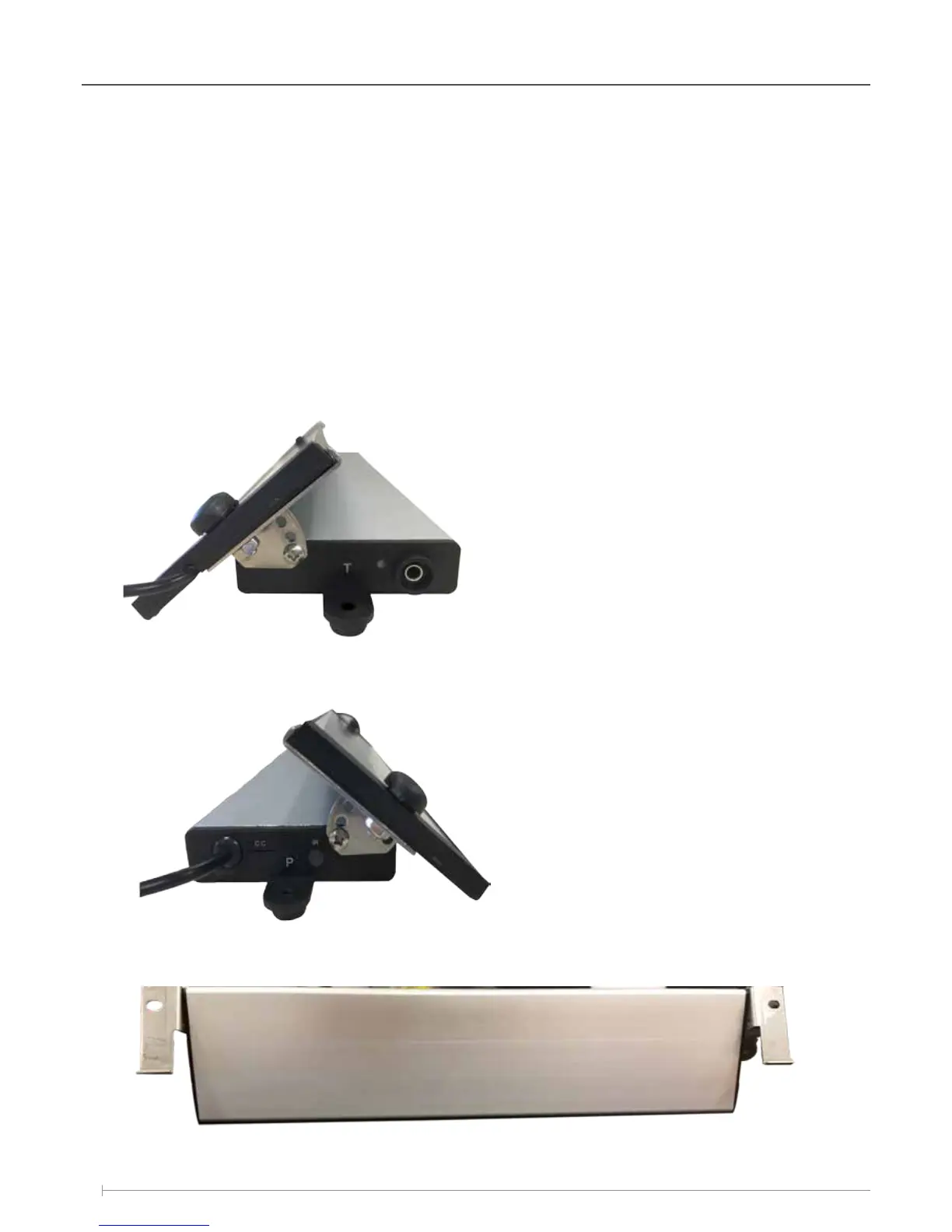

Step 1
Determine which angle the solar panel will sit at and attach the brackets to the battery pack/receiver; there are three
holes on the bracket (0°, 20° & 40°). Line up one of the three holes on the bracket with the battery pack receiver.
Make sure the tabs on the bracket face outwards from the battery pack/receiver.
Insert small screw to secure bracket.
Installation / Setup
