1) and the ground of the power supply to pin 9 or 10 on the DIN terminal block. Again, assuming the
DAQC2plate board is at address 0, type DAQC2.setDOUTbit(0,0) to turn the LED string on. Type
DAQC2.clrDOUTbit(0,0) to turn off the LED string.
Driving an Inductive Load

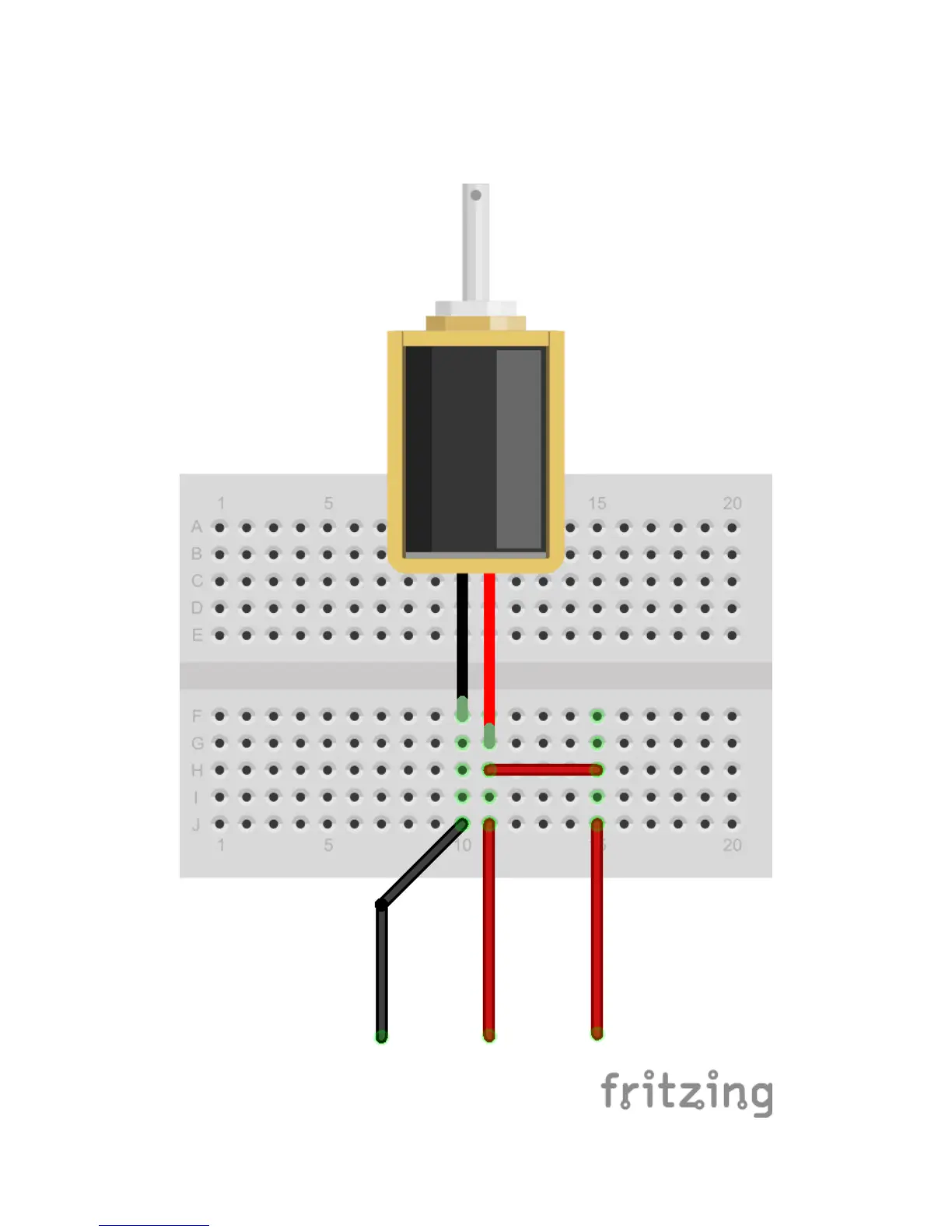

1. Use a simple breadboard to build up this 5V solenoid circuit.
2. Connect the red wire from the solenoid to a pair of red wires that route from the breadboard.
