terminal block. Assuming the DAQC2plate board is at address 0, type DAQC2.setDOUTbit(0,0) to turn the LED
on. Type DAQC2.clrDOUTbit(0,0) to turn off the LED.
A Short String of White LEDs

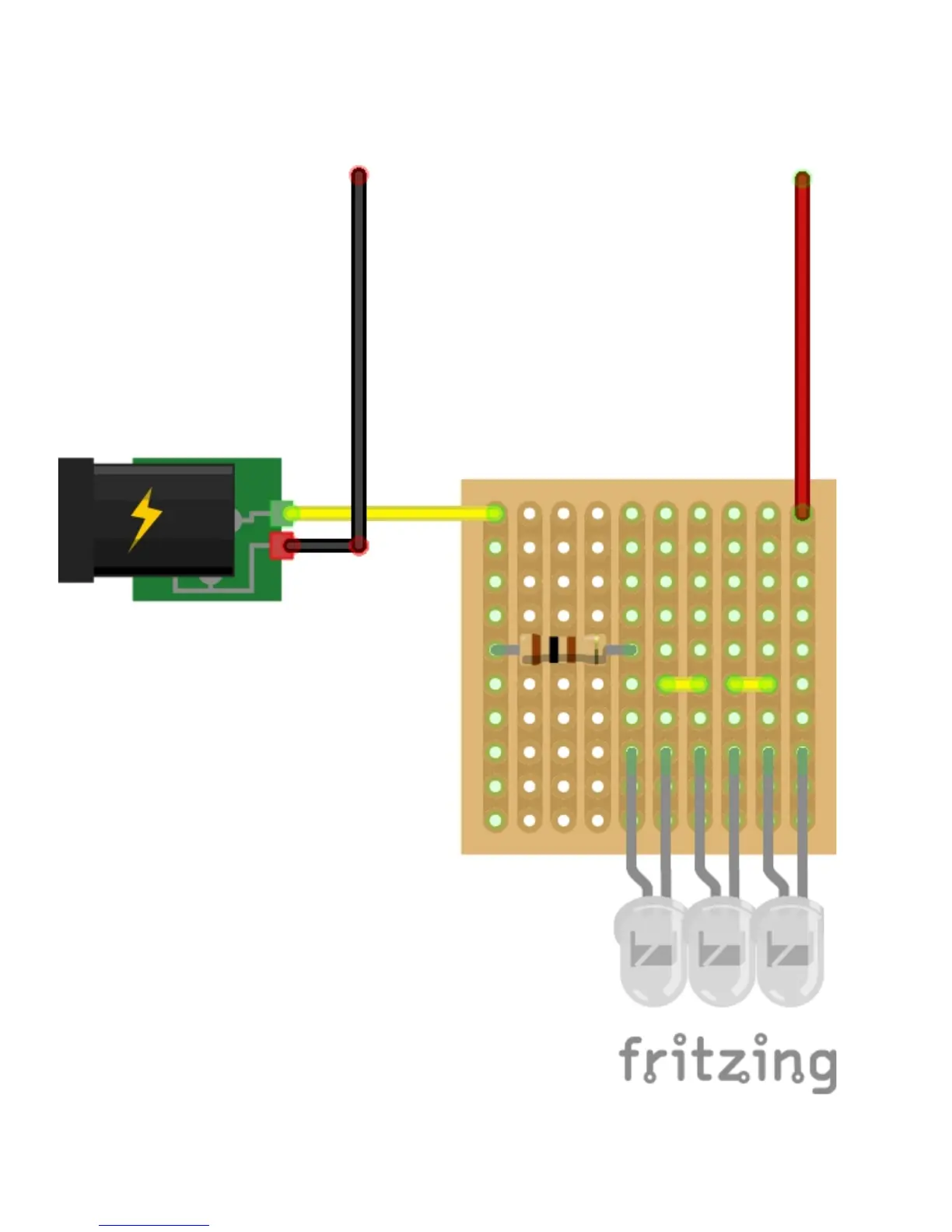

Control some under-counter lighting with this circuit. Connect three, high-bright white LEDs in series as shown
and then attach a 12VDC power supply with a center-positive connector. Then put a 100 ohm resistor between
the LEDs and the power supply. Attach the cathode of the rightmost LED to DOUT0 of the terminal block (pin
