Pi-Plates DAQC2plate - Examples; Simple External LED

Examples
Simple External LED

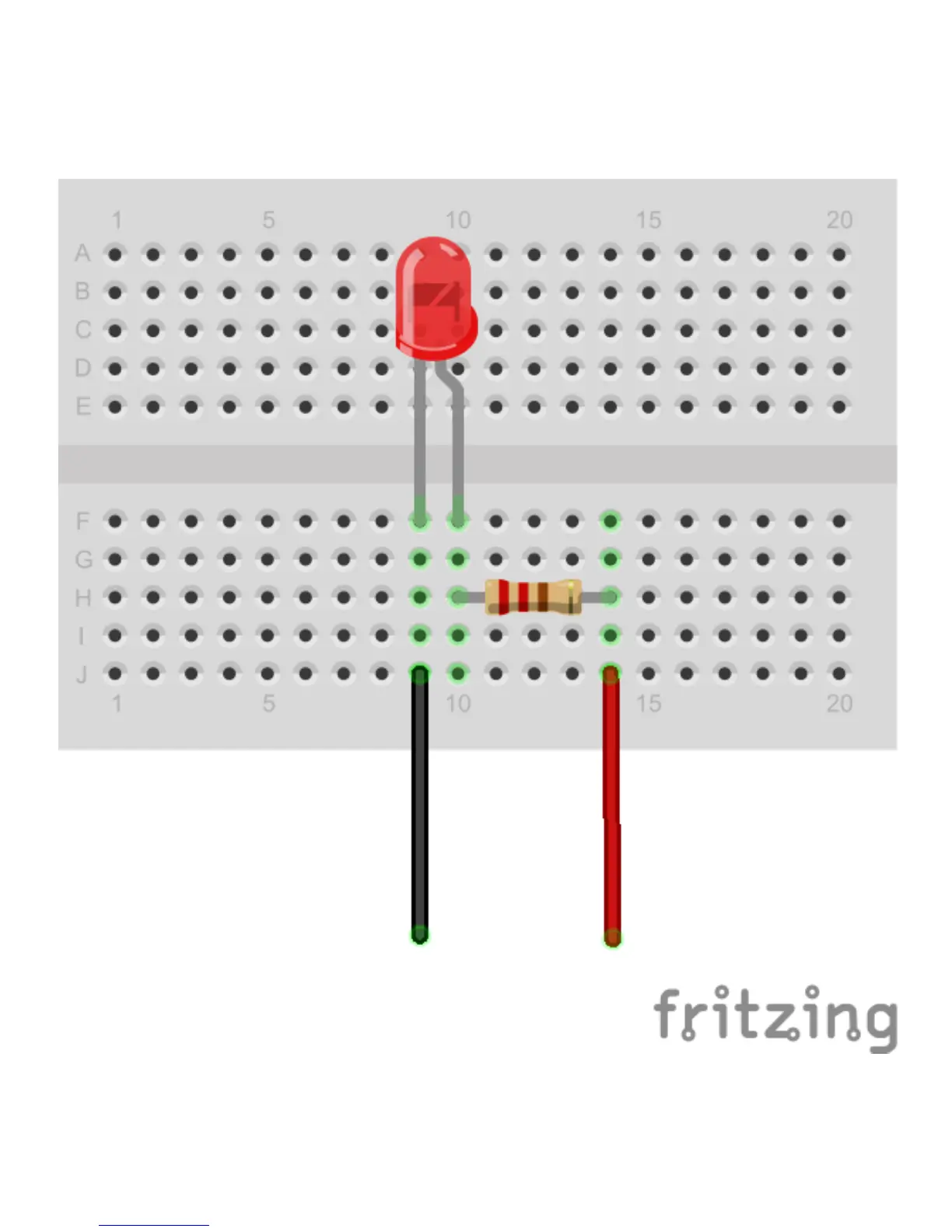

Use a simple breadboard to build up this LED circuit. Connect the anode of the LED (the long wire) to one end
of a 220 ohm resistor. Route a red wire from the other side of the resistor to the 5VDC terminal on the
DAQC2plate digital output terminal block. Route a black wire from the cathode of the LED to Output 0 of the
