Pi-Plates DAQC2plate - Board Layout Diagram

Board Layout

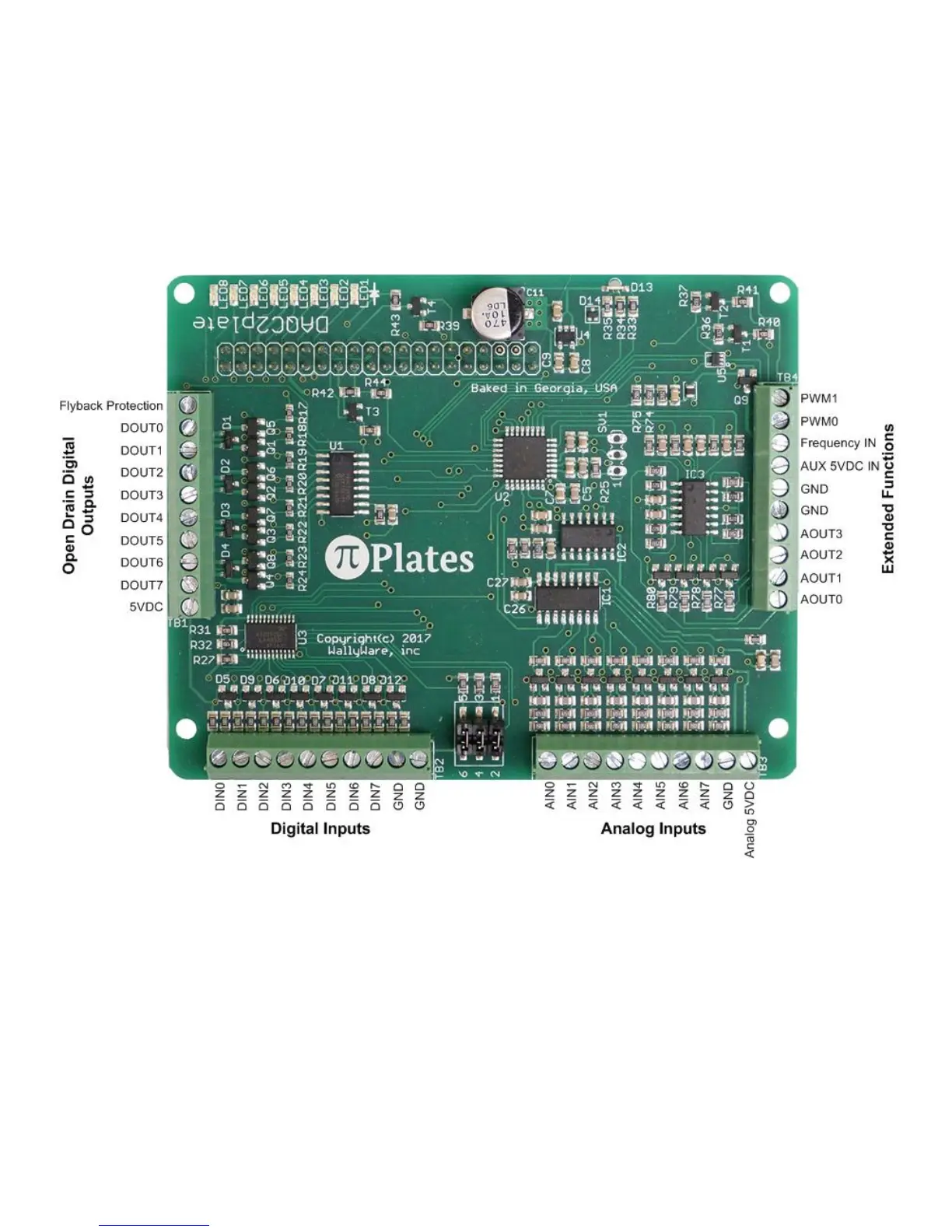

The terminal blocks and their functions are shown below. For convenience, the name of each terminal is
printed on the bottom of the board. If you are familiar with the original DAQCplate, note that Digital Inputs
Header and the Analog Inputs Header have been swapped. This was done to provide better signal to noise
performance on the analog inputs.
