03_02

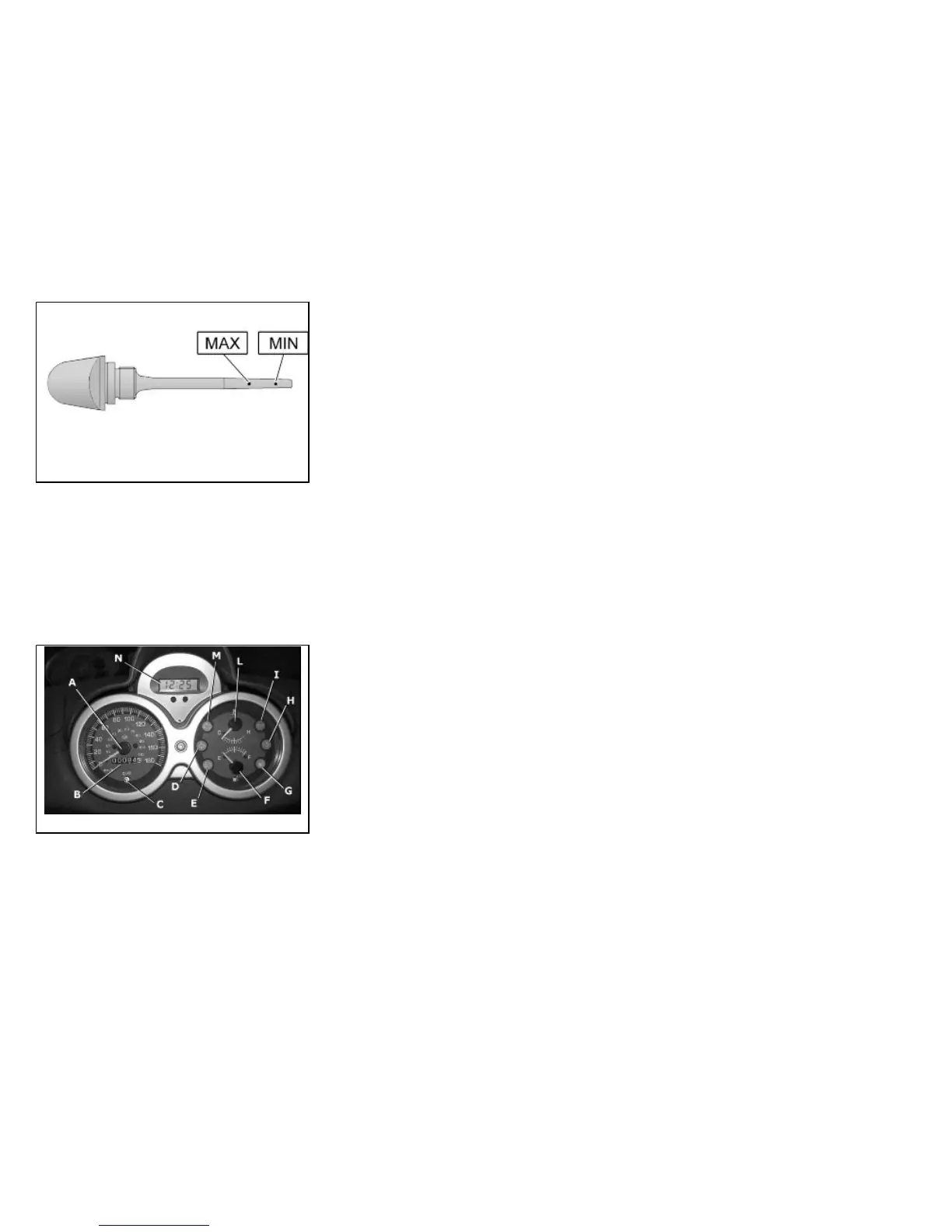

Engine oil top-up
Always check the oil level before carrying out top ups in order to avoid exceeding the
MAX. level. Getting an oil level between the MIN and MAX index marks requires ~
400 cc of oil. An oil check-up and top-up should be carried out every 5000 Km by
authorised personnel at any Authorised Piaggio-Gilera Service Centre.
03_03
Warning light (insufficient oil pressure) (03_03)
The scooter is equipped with a warning light "I" that lights up when the key is turned
to the "ON" position.
However, this light should switch off once the engine has been started.
If the light comes on during braking, at idling speed or while turning a corner,
it is necessary to check the oil level and top-up if required. If after having topped
up the oil, the warning light still turns on while braking, at idle speed or while
turning a corner, it will be necessary to turn to an Authorised Service Centre.
35
