BEFORE REPLACING A BLOWN FUSE, FIND AND SOLVE
THE FAILURE THAT CAUSED IT TO BLOW. NEVER TRY
TO REPLACE THE FUSE WITH ANY OTHER MATERIAL
(E.G., A PIECE OF ELECTRIC WIRE).
CAUTION
MODIFICATIONS OR REPAIRS TO THE ELECTRICAL SYS-
TEM, PERFORMED INCORRECTLY OR WITHOUT STRICT
ATTENTION TO THE TECHNICAL SPECIFICATIONS OF
THE SYSTEM, CAN CAUSE ERRORS IN FUNCTIONING
AND RISK OF FIRE.

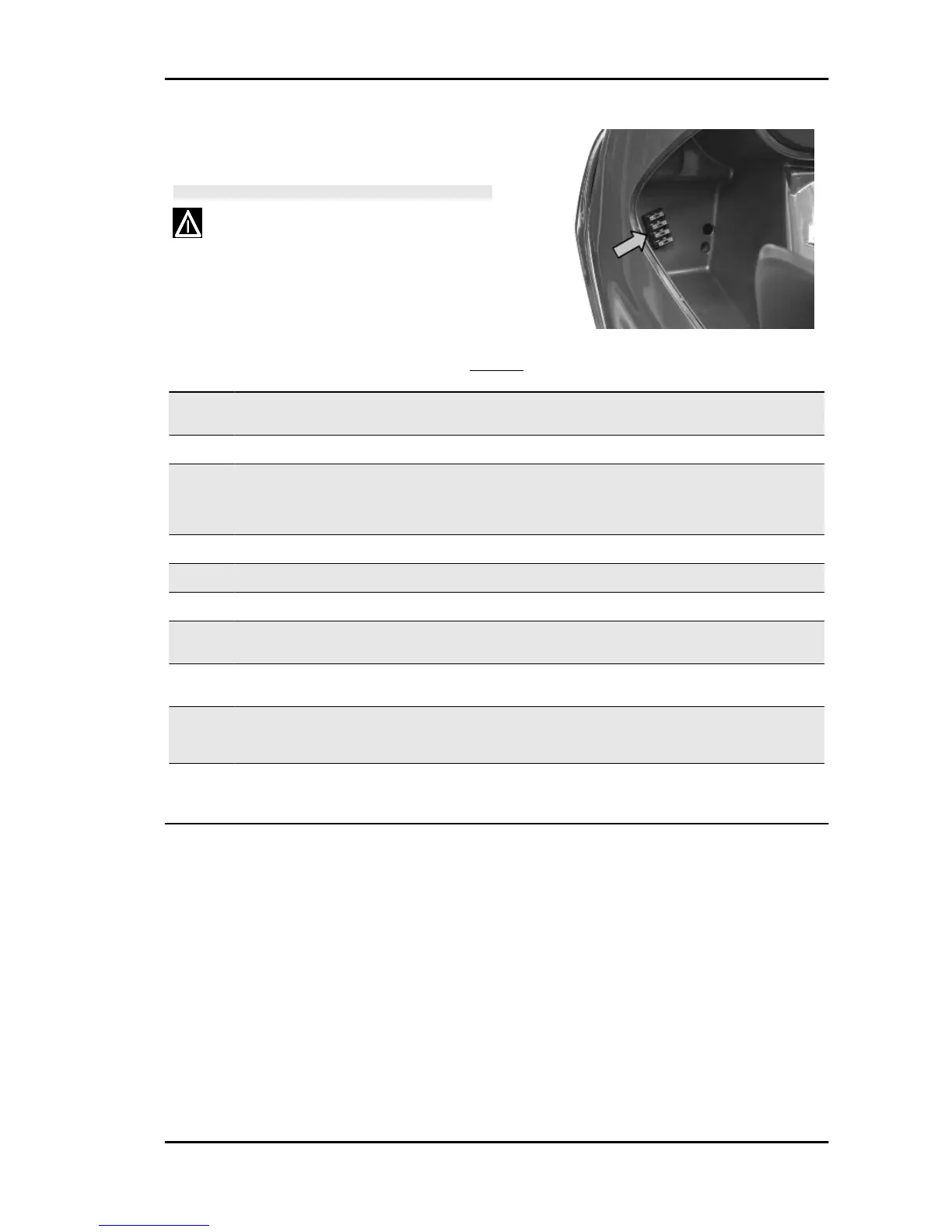

FUSES
Specification Desc./Quantity
1 Fuse No. 1 Capacity:30 A
Protected circuits:Battery recharge circuit.
Live:Fuses No. 7-8-9-10.
2 Fuse No. 2 Capacity:5A
Protected circuits:Clock, Immobilizer.
3 Fuse No. 3 Capacity:15A
Protected circuits:Plug socket, helmet compartment
light, electric fan (via remote control), pre-installation for
anti-theft device.
Live:Saddle opening actuator.
4 Fuse No. 4 Capacity:10 A
Protected circuits:Injection load (via remote control).
5 Fuse No. 5 Capacity:15A
Protected circuits:Light switch (via remote control).
6 Fuse No. 6 Capacity:7.5 A
Protected circuits:Injection electronic control unit.
7 Fuse No. 7 Capacity:7.5 A
Protected circuits:Headlight remote control, stop
lights, start-up circuit.
8 Fuse No. 8 Capacity:7.5 A
Protected circuits:Tail lights, license plate light, panel
lighting, horn.
9 Fuse No. 9 Capacity:7.5 A
Protected circuits:Electric fan remote control, injection
load remote control, immobilizer aerial, injection elec-
tronic control unit.
10 Fuse No. 10 Capacity:7.5 A
Protected circuits:Pre-installation for anti-theft device,
turn indicators, instrument panel.
Beverly Tourer 250 i.e. Electrical system
ELE SYS - 77
