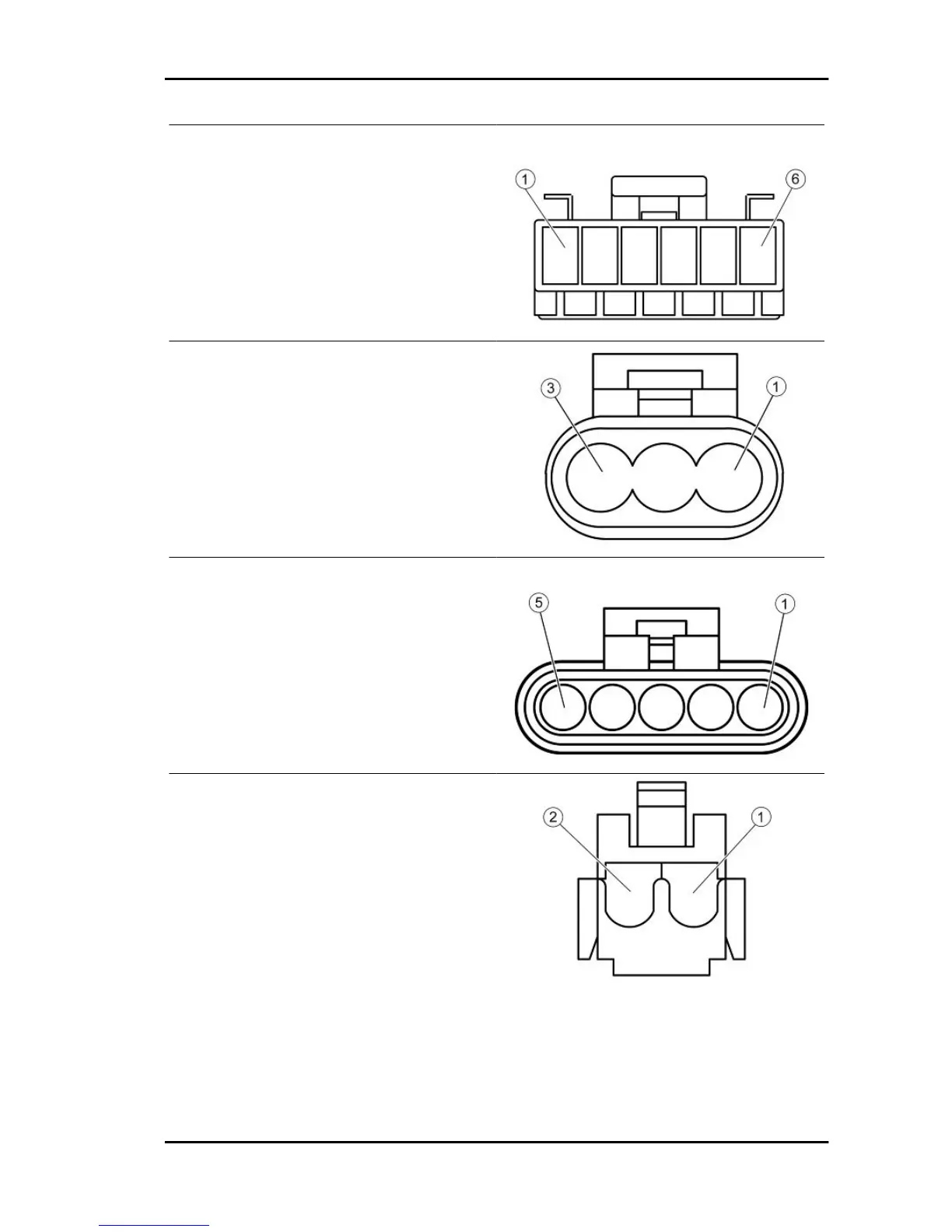

CONNETTORE GRUPPO STRUMENTI «B»
1. Spia luci abbaglianti (Viola)
2. Massa (Nero)
3. Spia iniezione (Marrone-Nero)
4. Sensore pressione olio (Rosa-Bianco)
5. Alimentazione sotto chiave (Bianco)
6. Illuminazione strumento (Giallo-Nero)
IMMOBILIZER AERIAL CONNECTOR
1. Live supply (Red-White)
2. Ground (Black)
3. Injection ECU (Orange-White)
FUEL PUMP CONNECTOR
1. Not connected
2. Ground (Black)
3. Not connected
4. Not connected
5. power via remote control (Black-Green)
ELECTRIC FAN CONNECTOR
1. Ground (Black)
2. Power via remote control (Red)
Beverly Tourer 250 i.e. Electrical system
ELE SYS - 83
