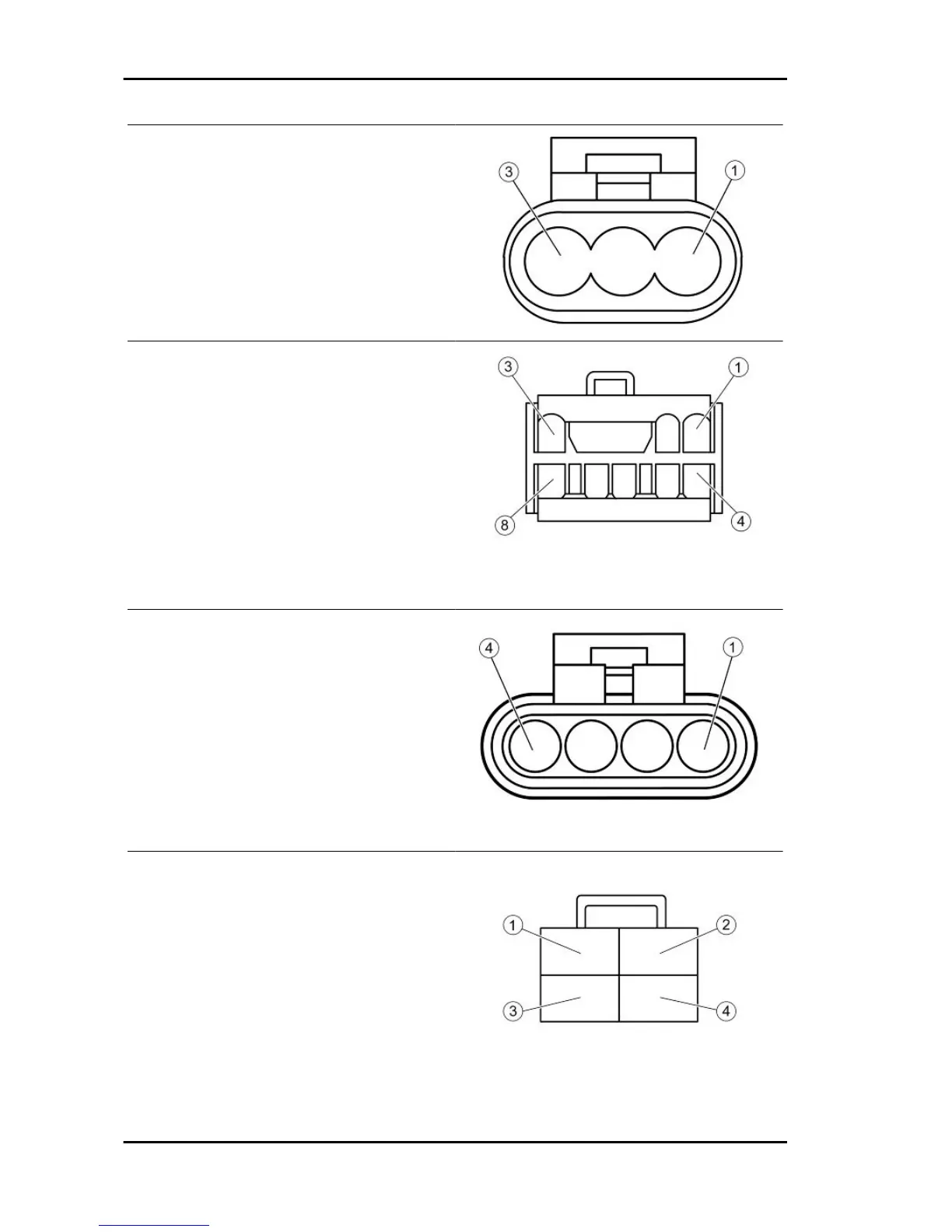

CONNETTORE PICK-UP

1. Positivo da centralina sensore giri motore (Ros-

so)

2. Negativo da centralina sensore giri motore

(Marrone)

3. Sensore pressione olio (Bianco-Rosa)

ANTITHEFT DEVICE PRE-INSTALLATION

CONNECTOR

1. LHS Turn indicator bulbs (Pink)

2. RHS Turn indicator bulbs (White-Blue)

3. Ground (Black)

4. Battery-powered (Blue)

5. Power permanent supply (White)

6. Helmet compartment light bulb (Red-Yellow)

7. Not connected

8. Not connected

CONNETTORE SONDA LAMBDA

1. Positivo da centralina sonda lambda (Azzurro-

Nero)

2. Negativo da centralina sonda lambda (Bianco-

Verde)

3. Negativo da centralina riscaldatore (Verde-Gial-

lo)

4. Alimentazione riscaldatore tramite teleruttore

(Nero-Verde)

VOLTAGE REGULATOR CONNECTOR

1. Battery positive (Red-Black)

2. Ground (Black)

3. Battery positive (Red-Black)

4. Ground (Black)

Electrical system Beverly Tourer 250 i.e.

ELE SYS - 84
