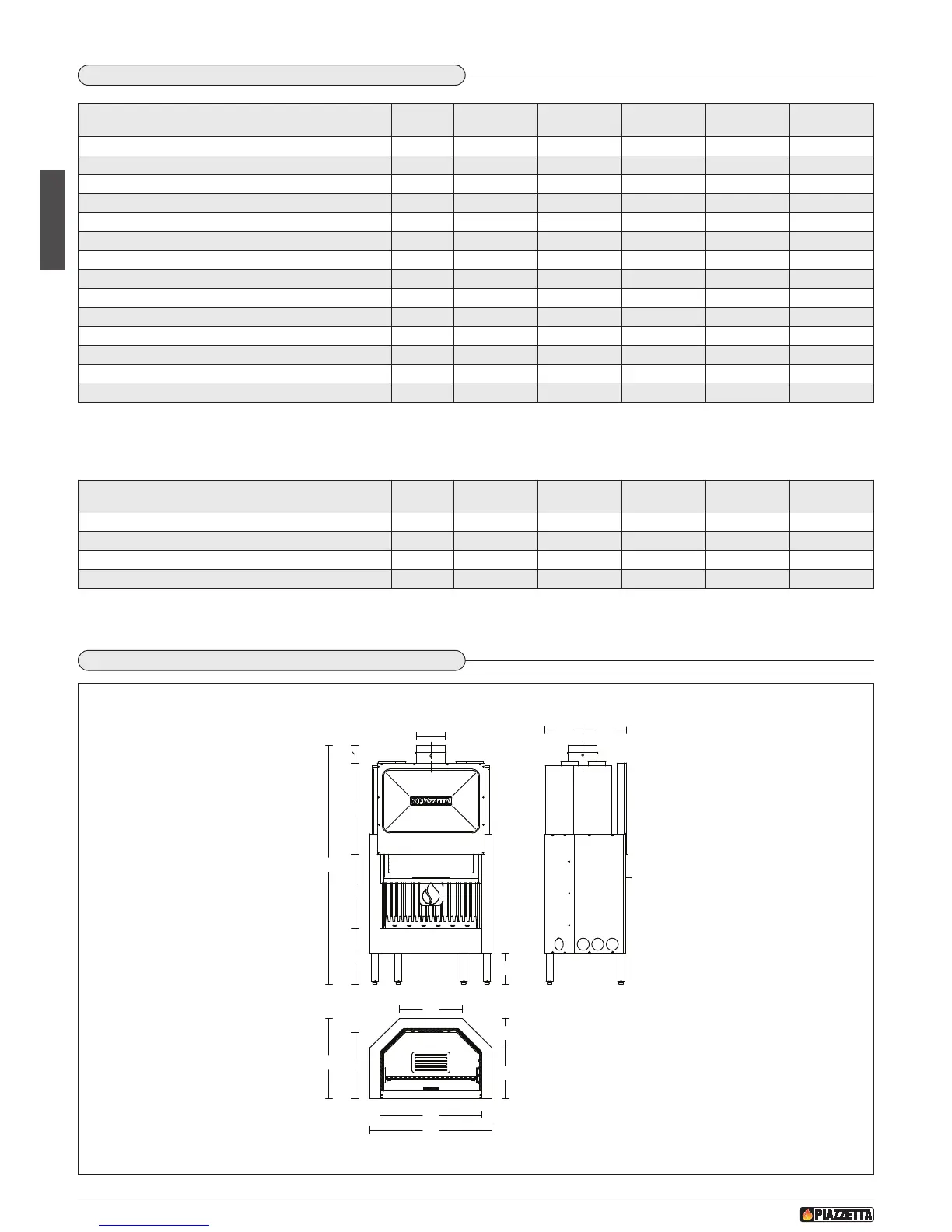

2.5 TECHNICAL DATA
DT2010628-00
2.6 FIREBOX DIMENSIONS
These data are obtained using beech wood with moisture content below 20% and with intervals between stoking-up of approximately one hour.
Appliance for intermittent use.
Technical data with closed grate for flue calculations
The above values correspond approximately to a flue with section Ø 25 cm up to 4.5 m in height and Ø 20 over 4.5 m.
For model 610 HT: Ø 30 cm up to 4.5 m in height and Ø 25 over 4.5 m.
U.M. 600 HT 610 HT 650 HT 655T HT 655E HT
Rated heat output
kW 10 12.5 8 8 8
Consumption at rated heat output
kg/h 3.55 4.05 2.94 2.94 2.94
Thermal efficiency
% 74 75 72.5 72.5 72.5
CO content (with 13% O2)
% 0.18 0.17 0.18 0.18 0.18
Approved in accordance with standard
- EN 13229 EN 13229 EN 13229 EN 13229 EN 13229
T
est report No.
- C
S-06-081
C
S-07-056
C
S-06-080
C
S-06-080
C
S-06-080
Flue diameter
cm 20 25 20 20 20
Hearth opening (WxH)
cm 68x43 77x47 48x31 48x31 48x31
Grate surface area
cm
2
1900 2550 1100 1100 1100
Weight
kg 190 200 190 190 190
S
ize of packaging (WxDxH)
c
m 88x62x176 97x65x183 72x50x186 72x65x186 72x65x186
Fresh air intake (recommended minimum section)
cm
2
200 300 200 200 200
Combustion air flow rate with open intake
m
3
/h 93 - 93 93 93
Convective air inlet/outlet (recommended minimum section)
cm
2
350/350 350/350 350/350 350/350 350/350
U.M. 600 HT 610 HT 650 HT 655T HT 655E HT
Rated heat output
kW 10 12.5 8 8 8
Smoke flow rate
g/s 13.72 13.3 11.24 11.24 11.24
Average temp. of smoke in the flue
°C 290 304 280 280 280
Minimum draught
Pa 12 10 12 12 12
