4. GENERAL DESCRIPTION
4.1 SENSOR INFORMATION
The proximity-sensor (1F) is used for automatic switching from Send to Search mode. The sensor detects whether
it is covered or not. This feature also works in darkness.
To prevent accidental switching back to Send mode during the search, Search mode is blocked (SEARCH-LOCK, 2G)
as soon as you take the MICRO out of its carrying system. The MICRO remains in Search mode even if you return it
to the carrying system during probing or digging. To return to send mode, release the SEARCH-LOCK (1C) and
place the unit in the carrying system. See also chapter 4.7 & 4.8.

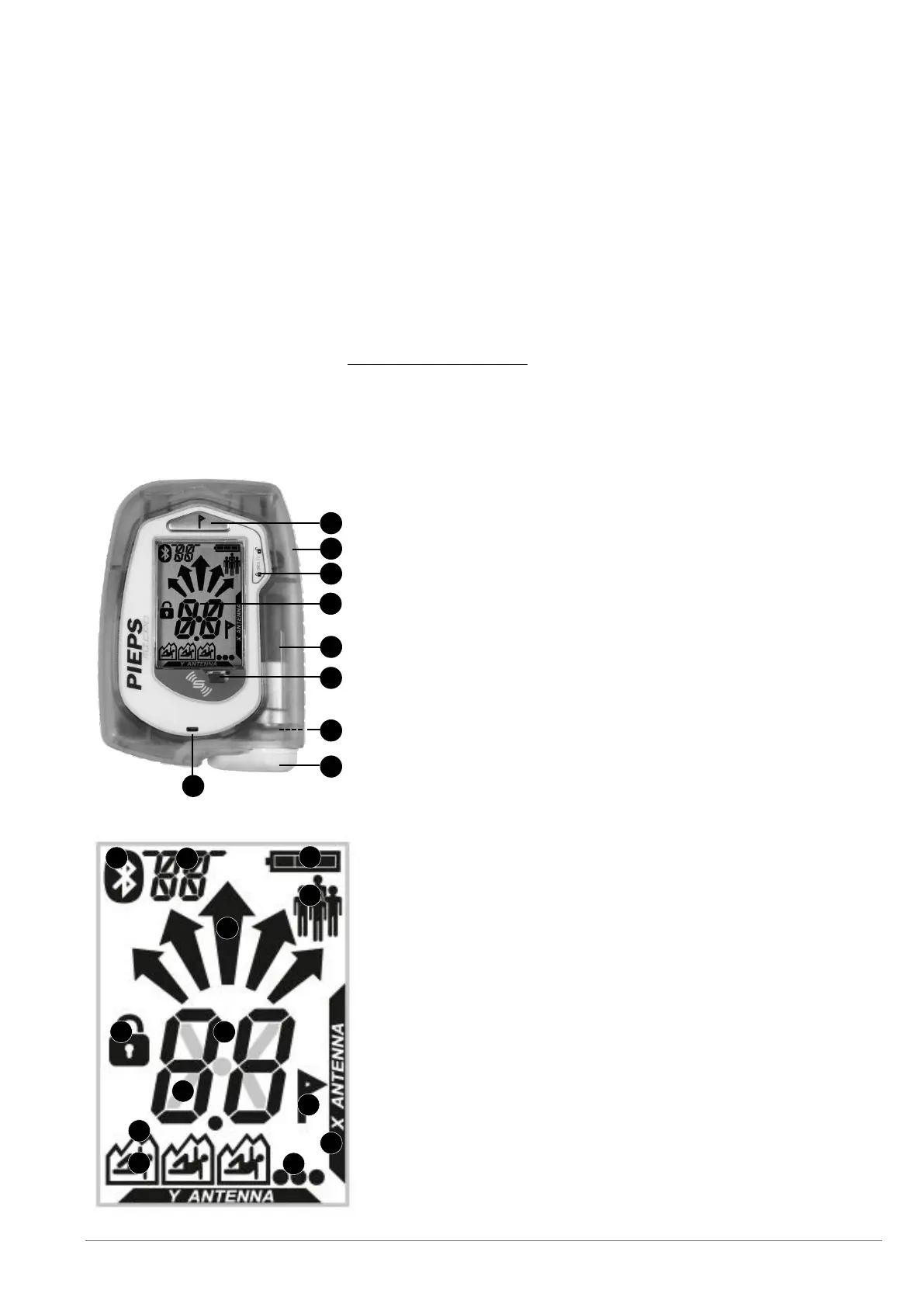

4.2 STRUCTURE
(1A)
MARK button
(1B)
LCD display (backlit)
(1C)
“Release SEARCH-LOCK ” info symbol
(1D)
Send check LED
(1E)
Loudspeaker
(1F)
Proximity sensor
(1G)
Main ON/OFF switch, access to battery
compartment
(1H)
Battery compartment
(1J)
Battery polarity
(2A)
Bluetooth® active
(2B)
Auxiliary display
(2C)
Battery capacity
(2D)
Group check
(2E)
Direction indicator
(2F)
Distance indicator
(2G)
SEARCH-LOCK (search mode blocked)
(2H)
Send indicator
(2J)
MARK (marking possible)
(2K)
Current sending antenna
(2L)
Number of burials (1-3)
(2M)
Number of burials (4 or more)
(2N)
Sender marked
1A
1D
1C
1H
1B
1F
1J
1G
1E
2A
2B
2C
2D
2E
2F
2G
2H
2J
2K
2L
2M
2N
