PSEN cs4.1n
Operating Manual PSEN cs4.1n
22180-EN-06
| 17

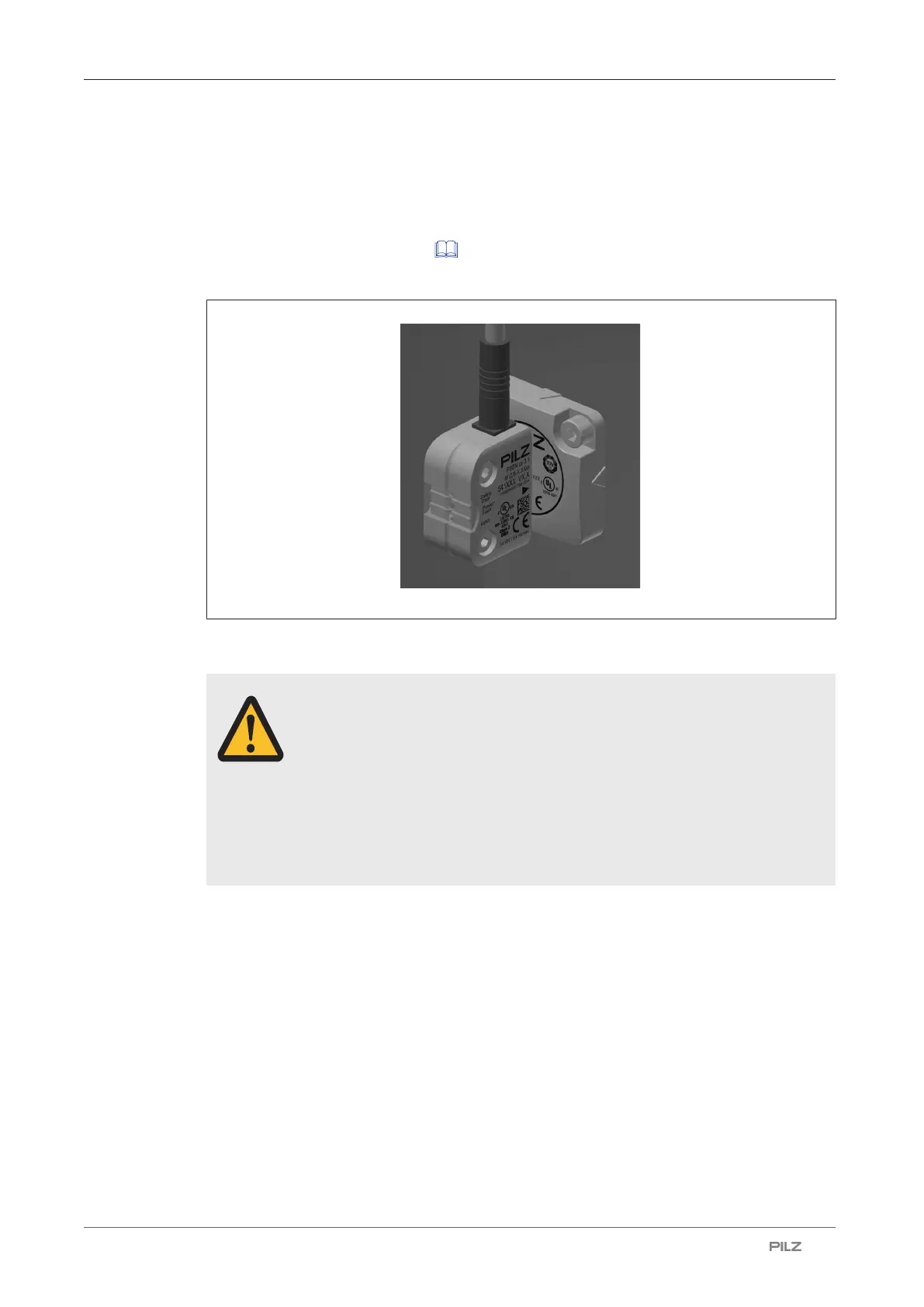

Procedure actuator PSEN cs2.1:
1. Use permanently secured M5 safety screws with a flat head (e.g. M5 cheese-head or
pan head screws).
Provide the mounting surface with two drill holes for the screw connection of the actu-
ator (see Dimensions in mm [ 23]).
2. Use two screws to fix the actuator in place. Align the actuator and tighten the screws.
Actuator cs3.1 low profile
WARNING!
Loss of the manipulation protection by inadequate environmental con-
ditions
The loss of the manipulation protection can allow manipulation of the inter-
locking device and it may lead to serious injury or death.
– Make sure that the actuator has no direct or repetitive contact with
materials such as methyl ethyl ketone (MEK), petrol or isopropanol.
} The actuator is secured against unauthorised removal, and against contamination by the
sealing. The seal should be regarded as equivalent to using permanent fastenings in ac-
cordance with ENISO14119.
} By removing the actuator, the actuator will be destroyed.
} The actuator’s adhesive force on the materials aluminium, stainless steel, polycarbonate
and glass was checked. For deviating surface materials check the adhesive force on the
surface.
} After a cure time of 24 hours, 90% of the final adhesive force are achieved. The harden-
ing must take place at min. 20°C. With lower temperatures the cure time is clearly exten-
ded.
} No continuous force must affect the actuator.
