Operating Manual PSEN cs4.1n
22180-EN-06
| 13
Connection to evaluation devices
Make sure that the selected evaluation device has the following property:
} OSSD signals are evaluated through 2 channels with plausibility monitoring
Please note:
} Information given in the Technical details [ 26] must be followed.

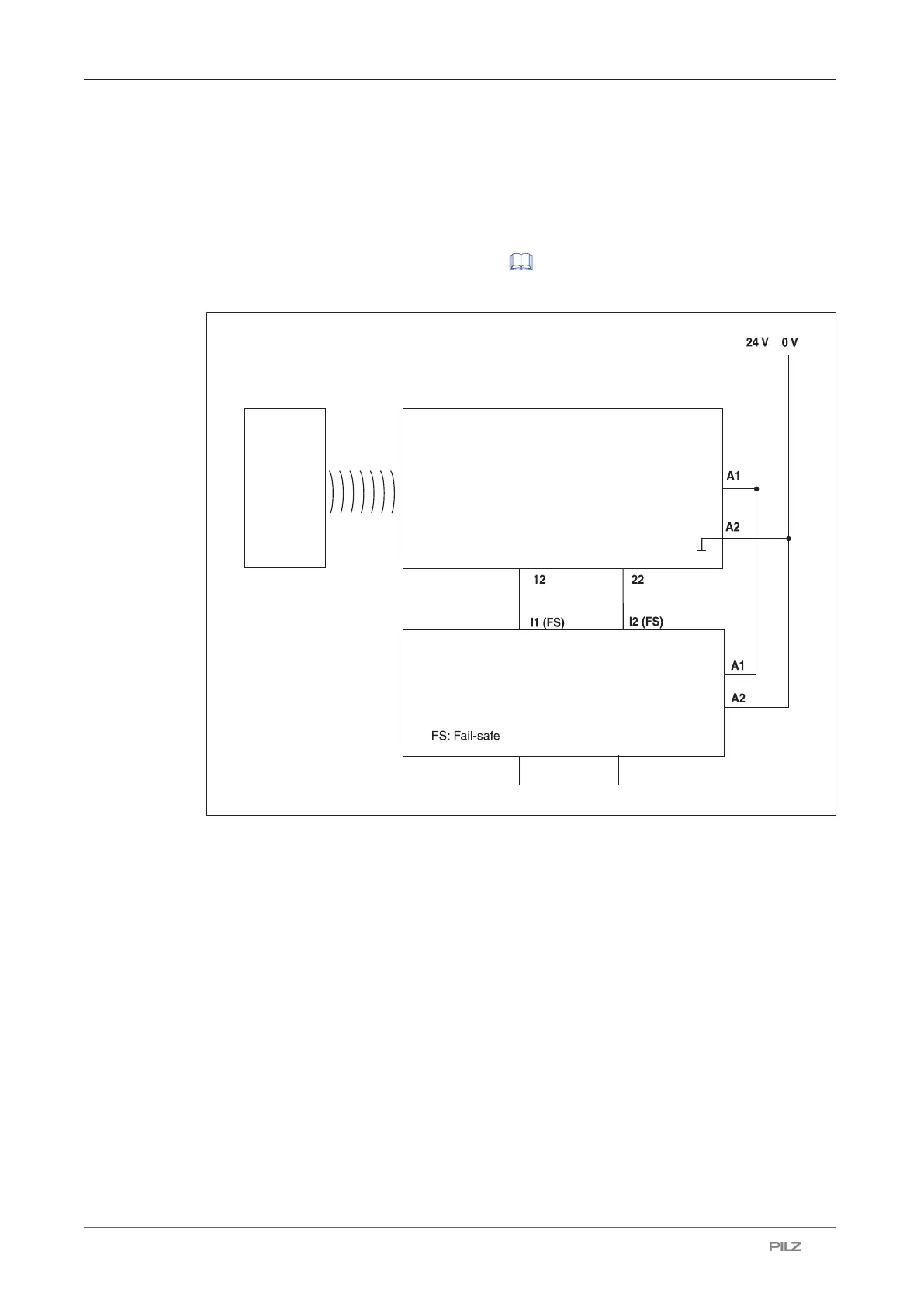

Connection diagram, single connection
Actuator
Evaluation device
Safety switch
Suitable Pilz evaluation devices are, for example:
} PNOZelog for safety gate monitoring
} PNOZpower for safety gate monitoring
} PNOZsigma for safety gate monitoring
} PNOZ X for safety gate monitoring
} PNOZmulti for safety gate monitoring
Configure the switch in the PNOZmulti Configurator with switch type 3.
} PSS for safety gate monitoring with standard function block SB064, SB066 or
FS_SafetyGate
} PSSuniversal PLC for safety gate monitoring with function block FS_SafetyGate
