Wiring
Please note:
} Information given in the "Technical details" must be followed.
} Switch off the supply voltage before disconnecting the plug-in connection.
} Make sure that when connecting or separating the connector the pollution degree 1 or 2
is maintained.
} The power supply must meet the regulations for extra low voltages with protective elec-
trical separation (SELV, PELV).
} The outputs of the safety switch must have a protective separation to voltages over 60 V
AC.
} The supply voltage to the safety switch must be protected with a 2 A to 4A quick-acting
fuse.
} Ensure the wiring and EMC requirements of EN 60204-1 are met.

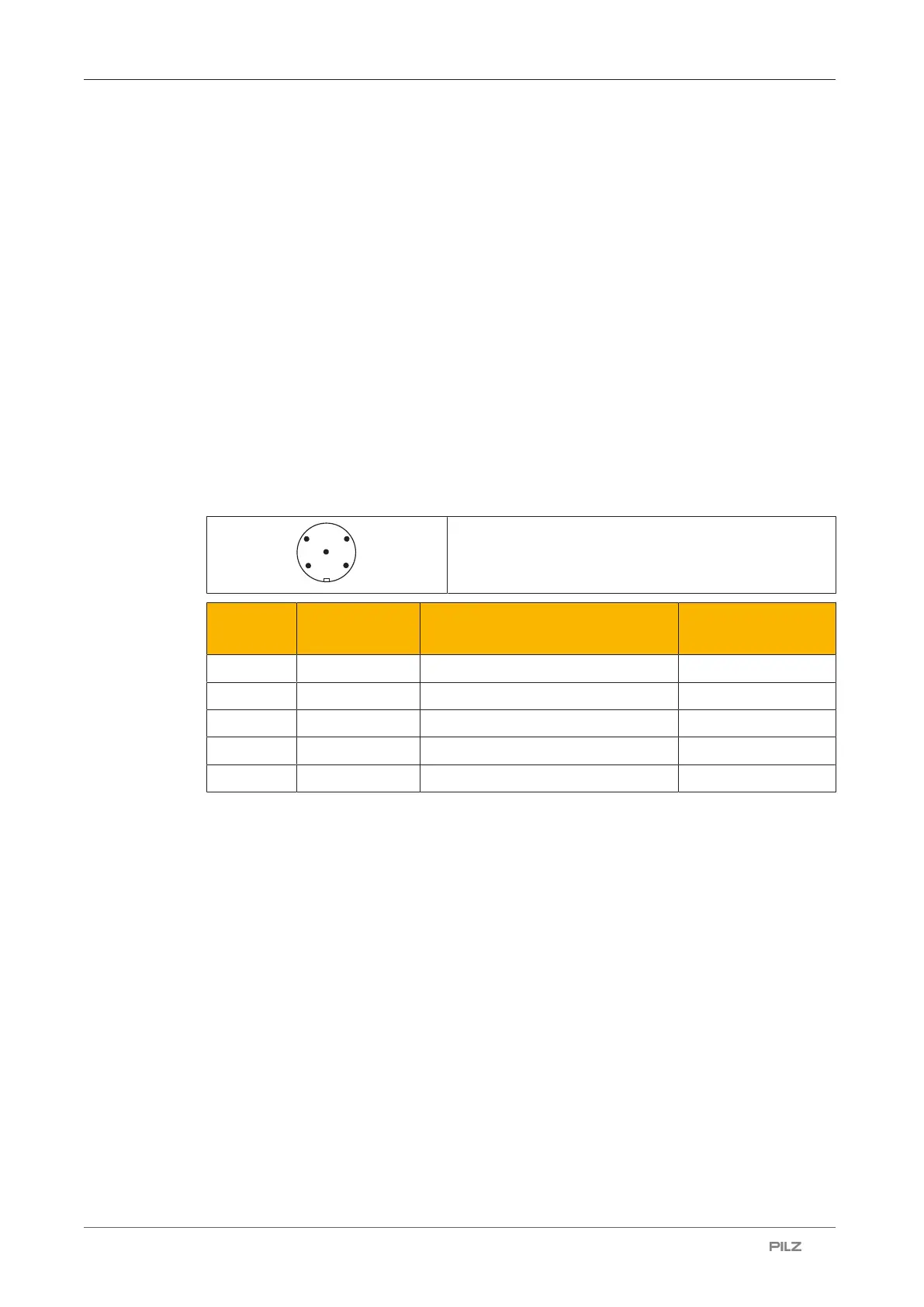

Pin assignment, connector and cable
1
2
3
5
4
5-pin M12 male connector
PIN Pin
designation
Function Wire colour
1 A1 +24 UB Brown
2 12 Output, channel1 White
3 A2 0 V UB Blue
4 22 Output, channel2 Black
5 - Do not connect Grey
The wire colour also applies for the cable available from Pilz as an accessory.
