10 Operating Manual: PSS SB ACTIVE JUNCTION BASIS
75 (2.95")
94 (3.70")
121 (4.76")
45
(1.77")
87 (3.42")
49,2
(1.94")
5
(0.196")
Installation
INFORMATION
Please refer also to the chapter entitled “Installation and Assembly” in the
“SafetyBUS p Installation Manual”.
The PSS SB ACTIVE JUNCTION BASIS is enclosed in a 45 mm P99 housing,
suitable for DIN rail mounting.
• The device should be installed in a control cabinet with a protection type of at
least IP54.
• There are two notches on the back of the unit for DIN rail attachment.
• If you are installing the unit on to a vertical DIN rail, ensure that it is mounted
securely by using a retaining bracket or an end angle.

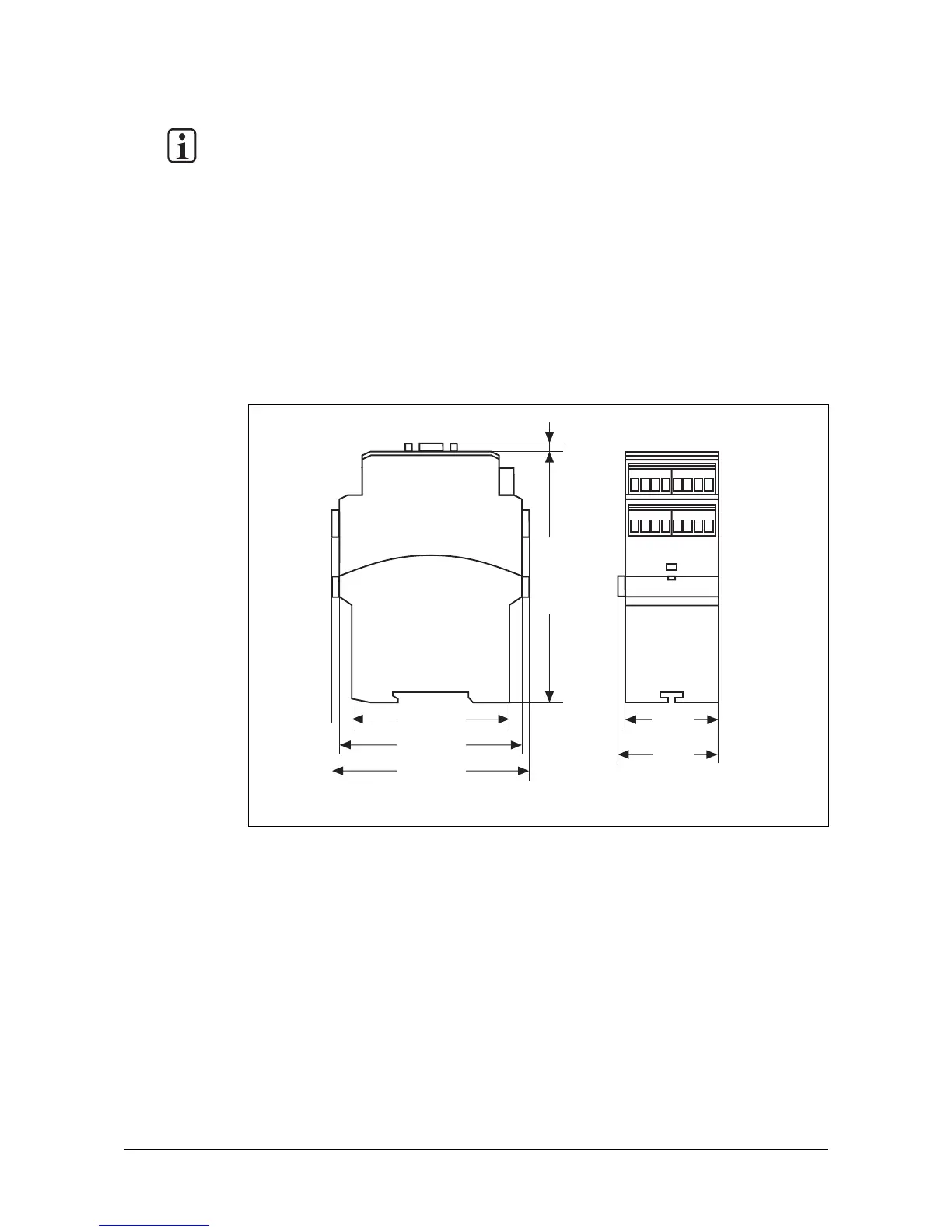

Fig. 6: Dimensions
