Pioneer CT-W701R Service Manual

CT-W801R, CT-W701R

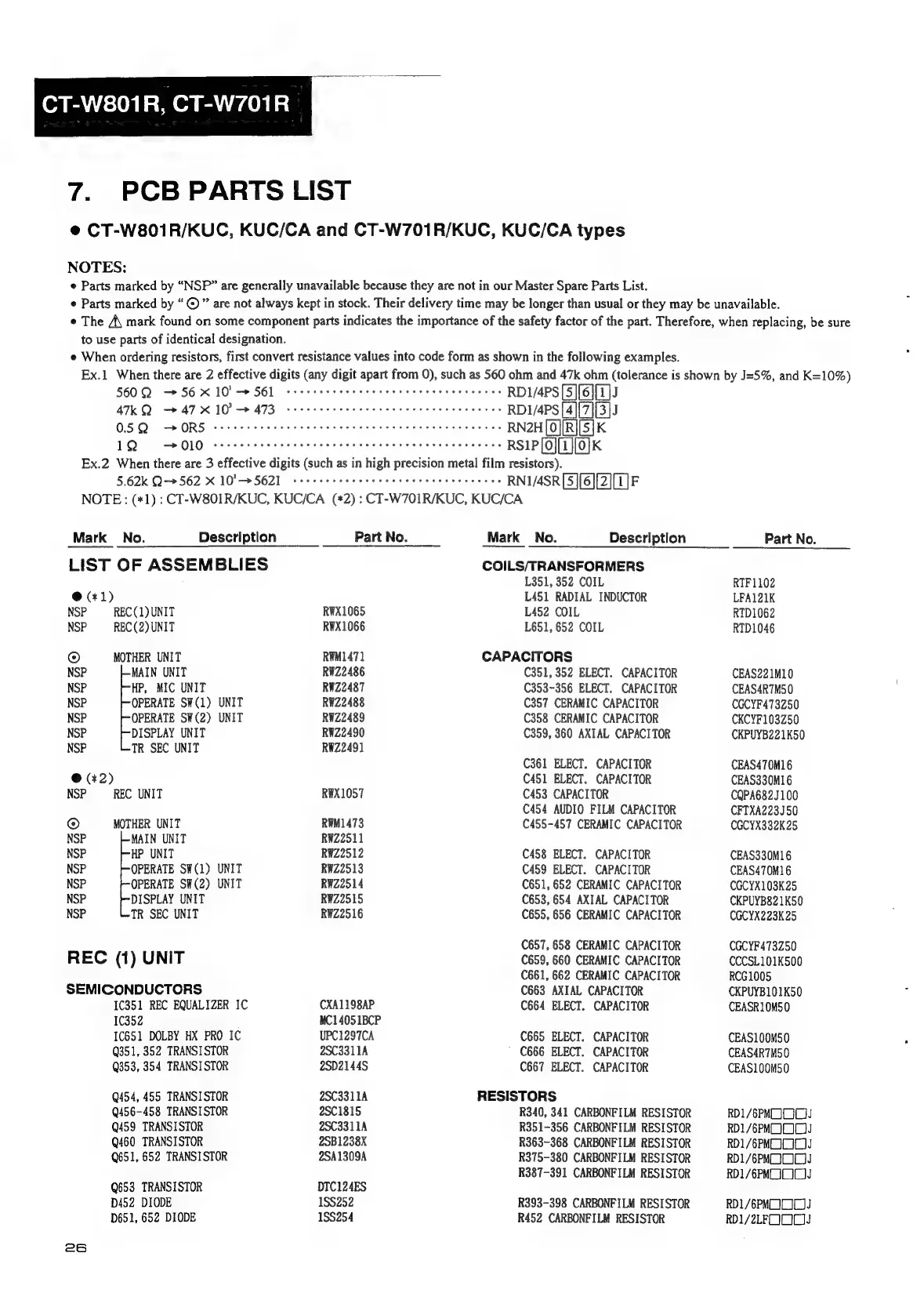

7. PCB PARTS LIST
@ CT-W801R/KUC, KUC/CA and CT-W701R/KUC, KUC/CA types
NOTES:
e Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List.
¢ Parts marked by “©” are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable.
* The A\ mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure
to use parts of identical designation.
e When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%)
560 Q 56K 10'S S61 reece eee e eect e teen neces RD1/4PS (S][6][1 J
ATK OQ AT KO 4T3 ect ete e etter eee nen eens RDI/4PS (4][7][3]J
O50” HORS 5 ise dese eer aeenae ns cee ege gS a bes wesleentals RN2H [ol[RI[S]K
19 0) 0 eee eee ee RS1P[0][1][O]K
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62k Q—> 562 X 105621 cere e reece eee eee e eee eee e eee eane RN1/4SR [5][6][2][1] F
NOTE: (#1) : CT-W801R/KUC, KUC/CA (#2) : CT-W701R/KUC, KUC/CA
Mark No. Description Part No. Mark No. Description Part No.
LIST OF ASSEMBLIES COILS/TRANSFORMERS
L351, 352 COIL RTF1102
@ (#1) L451 RADIAL INDUCTOR LFA121K
NSP REC(1) UNIT R¥X1065 L452 COIL RTD1062
NSP REC (2) UNIT RWX1066 L651, 652 COIL RTD1046
© MOTHER UNIT R¥M1471 CAPACITORS
NSP MAIN UNIT R¥Z2486 C351, 352 ELECT. CAPACITOR CEAS221M10
NSP HP, MIC UNIT R¥Z2487 (353-356 ELECT. CAPACITOR CEAS4R7M5 0
NSP OPERATE S¥(1) UNIT R¥Z2488 C357 CERAMIC CAPACITOR CGCYF473Z50
NSP OPERATE S¥(2) UNIT RWZ2489 C358 CERAMIC CAPACITOR CKCYF103Z50
NSP DISPLAY UNIT RWZ2490 C359, 360 AXIAL CAPACITOR CKPUYB221K50
NSP TR SEC UNIT R¥Z2491
C361 ELECT. CAPACITOR CEAS470M16
@ (#2) C451 ELECT. CAPACITOR CEAS330M16
NSP REC UNIT R¥X1057 C453 CAPACITOR CQPA682J100
C454 AUDIO FILM CAPACITOR CFTXA223J50
© MOTHER UNIT RWM1473 C455-457 CERAMIC CAPACITOR CGCYX332K25
NSP MAIN UNIT R¥Z2511
NSP HP UNIT R¥Z2512 C458 ELECT. CAPACITOR CEAS330M16
NSP OPERATE S¥(1) UNIT RWZ2513 C459 ELECT. CAPACITOR CEAS470M16
NSP OPERATE S¥(2) UNIT RWZ2514 C651, 652 CERAMIC CAPACITOR CGCYX103K25
NSP DISPLAY UNIT R¥Z2515 C653, 654 AXIAL CAPACITOR CKPUYB821K50
NSP TR SEC UNIT RWZ2516 C655, 656 CERAMIC CAPACITOR CGCYX223K 25
C657, 658 CERAMIC CAPACITOR CGCYF473Z50
REC (1) UNIT C659, 660 CERAMIC CAPACITOR CCCSL101K500
C661, 662 CERAMIC CAPACITOR RCG1005
SEMICONDUCTORS C663 AXIAL CAPACITOR CKPUYB101K50
10351 REC EQUALIZER IC CXAL198AP C664 ELECT. CAPACITOR CEASR10M50
1(352 MC14051BCP
1C651 DOLBY HX PRO IC UPC1297CA C665 ELECT. CAPACITOR CEAS100M50
Q351, 352 TRANSISTOR 2SC3311A C666 ELECT. CAPACITOR CEAS4R7M50
Q353, 354 TRANSISTOR 2SD2144S C667 ELECT. CAPACITOR CEAS100M50
Q454, 455 TRANSISTOR 2SC3311A RESISTORS
Q456-458 TRANSISTOR 2SC1815 R340, 341 CARBONFILM RESISTOR RD1/6PM OD
Q459 TRANSISTOR 2SC3311A R351-356 CARBONFILM RESISTOR RD1/6PMIOI0J
Q460 TRANSISTOR 2SB1238X R363-368 CARBONFILM RESISTOR RD1/6PMIOID
Q651, 652 TRANSISTOR 2SA1309A R375-380 CARBONFILM RESISTOR RD1/6PM IOC
R387-391 CARBONFILM RESISTOR RD1/é6PMOI
Q653 TRANSISTOR DIC124ES
D452 DIODE 188252 R393-398 CARBONFILM RESISTOR RD1/6PMOOID
D651, 652 DIODE 188254 R452 CARBONFILM RESISTOR RD1/2LFIOCJ
26

Pioneer CT-W701R Specifications

General

Track System	4-track, 2-channel stereo
Frequency Response (Metal Tape)	20 Hz - 20 kHz
Tape Type	Normal, Chrome, Metal
Type	Double Cassette Deck
Heads	2 x playback
Input	Line In
Output	Line Out
Inputs	Line In: 80 mV
Outputs	Line Out: 0.5 V
Power Supply	AC 220-240 V
Signal to Noise Ratio	70 dB
Signal-to-Noise Ratio	70 dB
Wow and Flutter	0.08% (WRMS)
Wow and Flutter (WRMS)	0.08%
