Pioneer PD-F908 User Manual

PD-F958, PD-F908
3

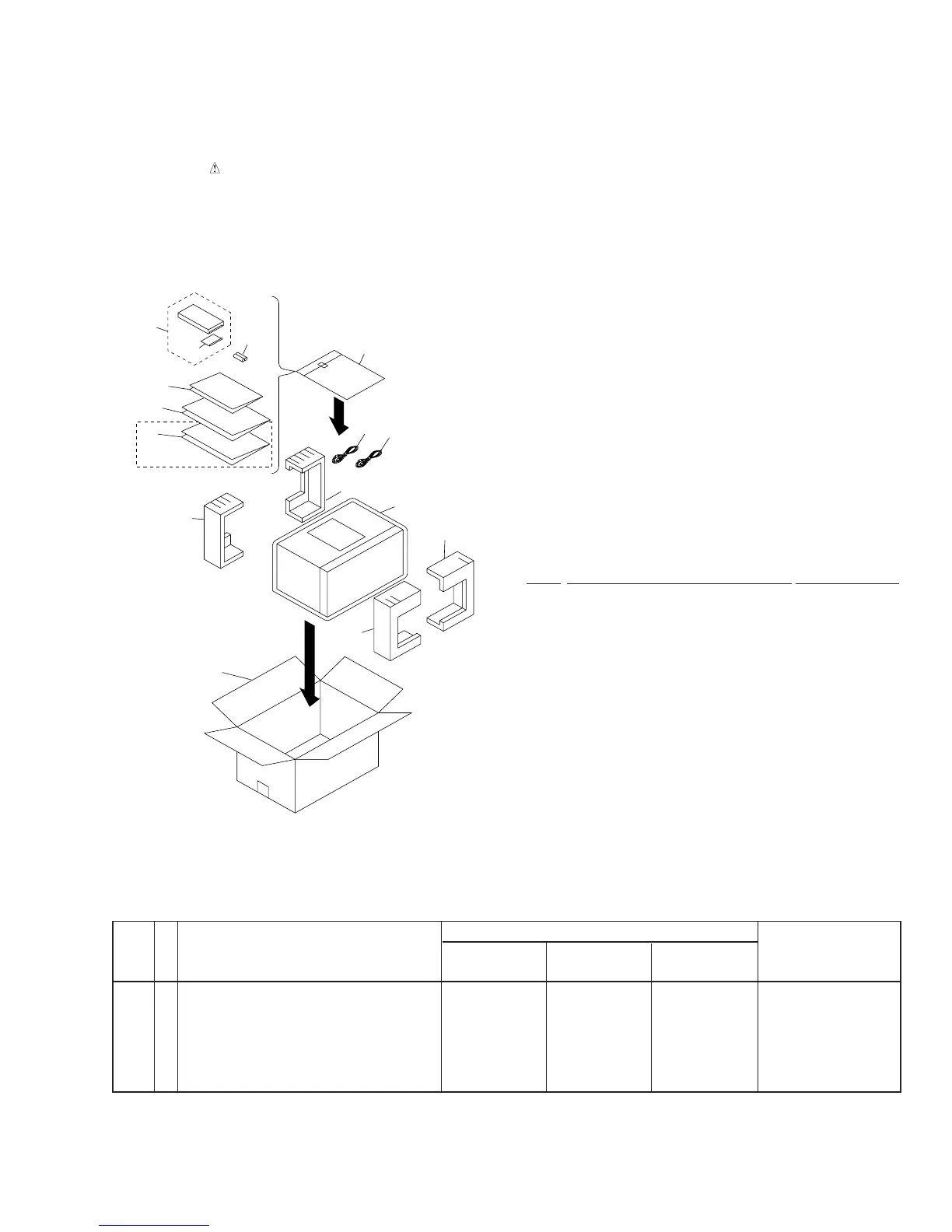

2. EXPLODED VIEWS AND PARTS LIST
NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List.
÷ The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
÷ Screw adjacent to
∞
mark on the product are used for disassembly.
2.1 PACKING
(1) PARTS LIST
1 Control Cable (L=1.0m) PDE1247
2 Output Cable (L=1.0m) PDE1248
3 Remote Control Unit See Contrast table (2)
4 Battery Cover PZN1105
NSP 5 Warranty Card See Contrast table (2)
6 Operating Instructions (English) See Contrast table (2)
7 Operating Instructions (French)) See Contrast table (2)
8 Polyethlene Bag Z21 - 038
9 Styrol Protector F PHA1333
10 Styrol Protector R PHA1334
11 Packing Case See Contrast table (2)
12 Mirror Mat PHF1001
NSP 13 Battery (R6P, AA) VEM 1010
Mark No. Symbol & Description Remarks
Part No.
PD-F958/ PD-F908/ PD-F908/
KUXQ/CA KUXQ KCXQ
(2) CONTRAST TABLE
PD-F908/KUXQ,KCXQ and PD-F958/KUXQ/CA have the same construction except for the following:
3 Remote Control Unit PWW1148 PWW1147 PWW1147
(CU-PD101) (CU-PD100) (CU-PD100)
NSP 5 Warranty Card ARY7023 ARY7023 ARY7024
6 Operating Instructions (English) PRB1278 PRB1277 PRB1277
7 Operating Instructions (French) Not used Not used PRD1034
11 Packing Case PHG2337 PHG2334 PHG2335
Mark No. Description Part No.
Front
9(1/2)
10(1/2)
11
6
5
4
3
9(2/2)
10(2/2)
13
8
2
12
1
7
PD-F908/KCXQ only
