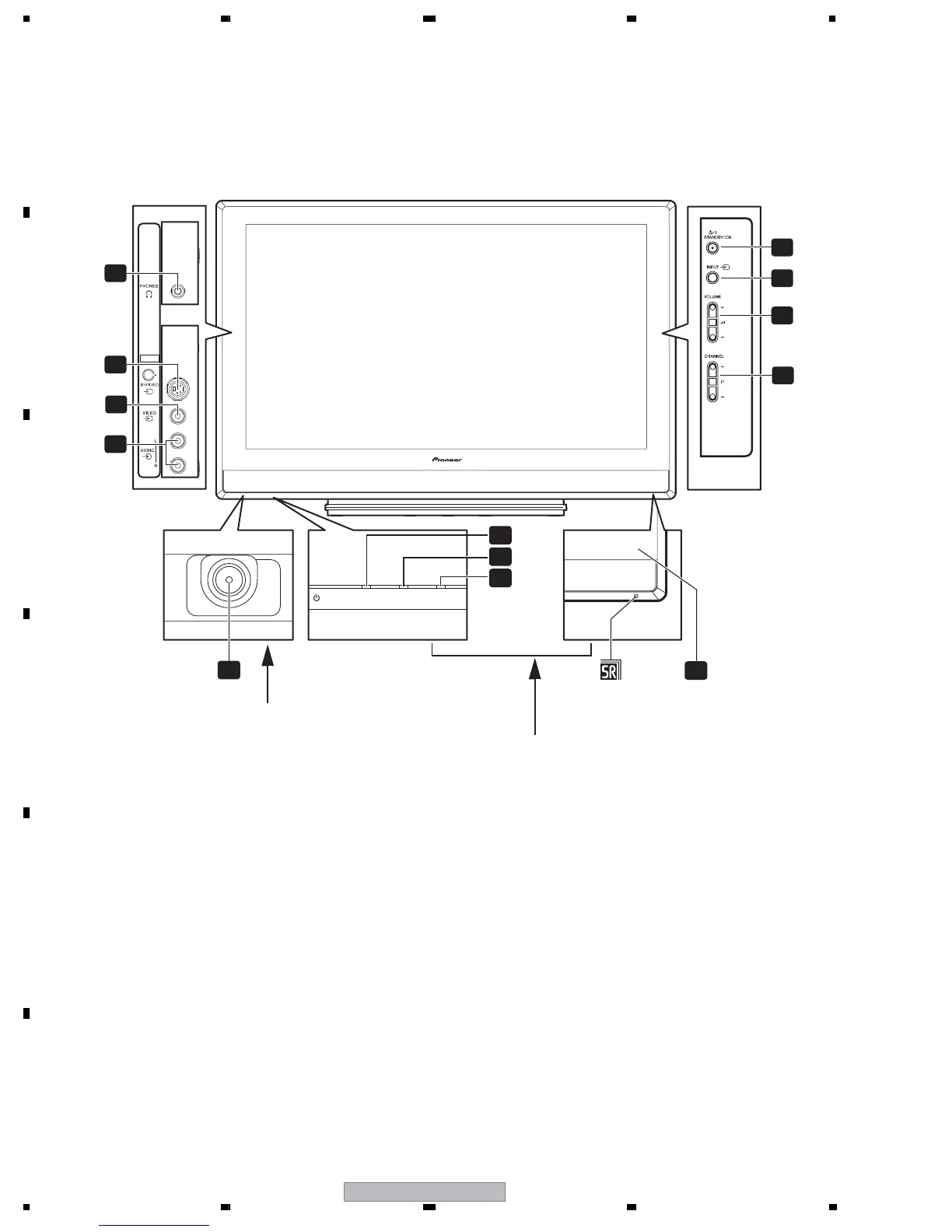

11.3 PANEL FACILITIES
11.3.1 PDP-427XD, PDP-4270XD
5
1
TIMERON STA NDBY
POWER
4
3
2
Front
Side
• Front/side view
Side
Viewed from the front of the display
Viewed from the underside of the display
• For PDP-4270XD
1 POWER button
2 POWER ON indicator
3 STANDBY indicator
4 TIMER indicator
5 Remote control sensor
6 STANDBY/ON button
7 INPUT button
8 VOLUME +/– buttons
9 CHANNEL +/– buttons
10 PHONES output terminal
11 INPUT 4 terminal (S-VIDEO)
12 INPUT 4 terminal (VIDEO)
13 INPUT 4 terminal (AUDIO)
• For PDP-427XD
1 POWER button
2 POWER ON indicator
3 STANDBY indicator
4 TIMER indicator
5 Remote control sensor
6 STANDBY/ON button
7 INPUT button
8 VOLUME +/– buttons
9 CHANNEL +/– buttons
10 PHONES output terminal
11 INPUT 5 terminal (S-VIDEO)
12 INPUT 5 terminal (VIDEO)
13 INPUT 5 terminal (AUDIO)
INPUT 4
10
12
11
13
6
8
9
7

Pioneer PDP-427XD Specifications

General

Depth	115 mm
Width	1040 mm
Height	679 mm
Weight	29600 g
Pixel pitch	- mm
Aspect ratio	16:9
Product color	Black
LED indicators	Stand-by
Noise reduction	Yes
RMS rated power	13 W
Display diagonal	42 \
Headphone outputs	1
Display brightness	1100 cd/m²
Display resolution	1024 x 768 pixels
Display technology	Plasma
Power requirements	AC 220 - 240 V, 50/60 Hz
SCART ports quantity	3
Contrast ratio (typical)	3000:1
Analog signal format system	PAL, SECAM
Power consumption (standby)	0.7 W
Power consumption (typical)	291 W
