10
En
English
Installation and Connections
Power cord connection
Connect a power cord after all component connections
have been completed.
PDP-42MXE10 power cord ratings
Cord ................. Cross-sectional area 3 mm
2
x 1.0 mm
2
(According to CEE 13)
Connector ................................................... 10 A, 250 V
(According to EN60320 Sheet C13)
Plug ................................International use (10 A, 250 V)
Example:
UK : UK 13 Amp Plug with rated 13 Amp fuse
(According to BS1363)
EURO : 10 A / 16 A 250 V (According to CEE 7, 1 V)
CAUTION
For the Plasma Display, a three-core power cord with a ground
terminal is used for efficiency protection.
Always be sure to connect the power cord to a three-pronged
grounded outlet and make sure that the cord is properly
grounded. If you use a power source converter plug, use an
outlet with a ground terminal and screw down the ground line.
NO!
Do not use a power supply voltage other than that indicated (AC
100 - 240 V, 50/60 Hz) as this may cause fire or electric shock.

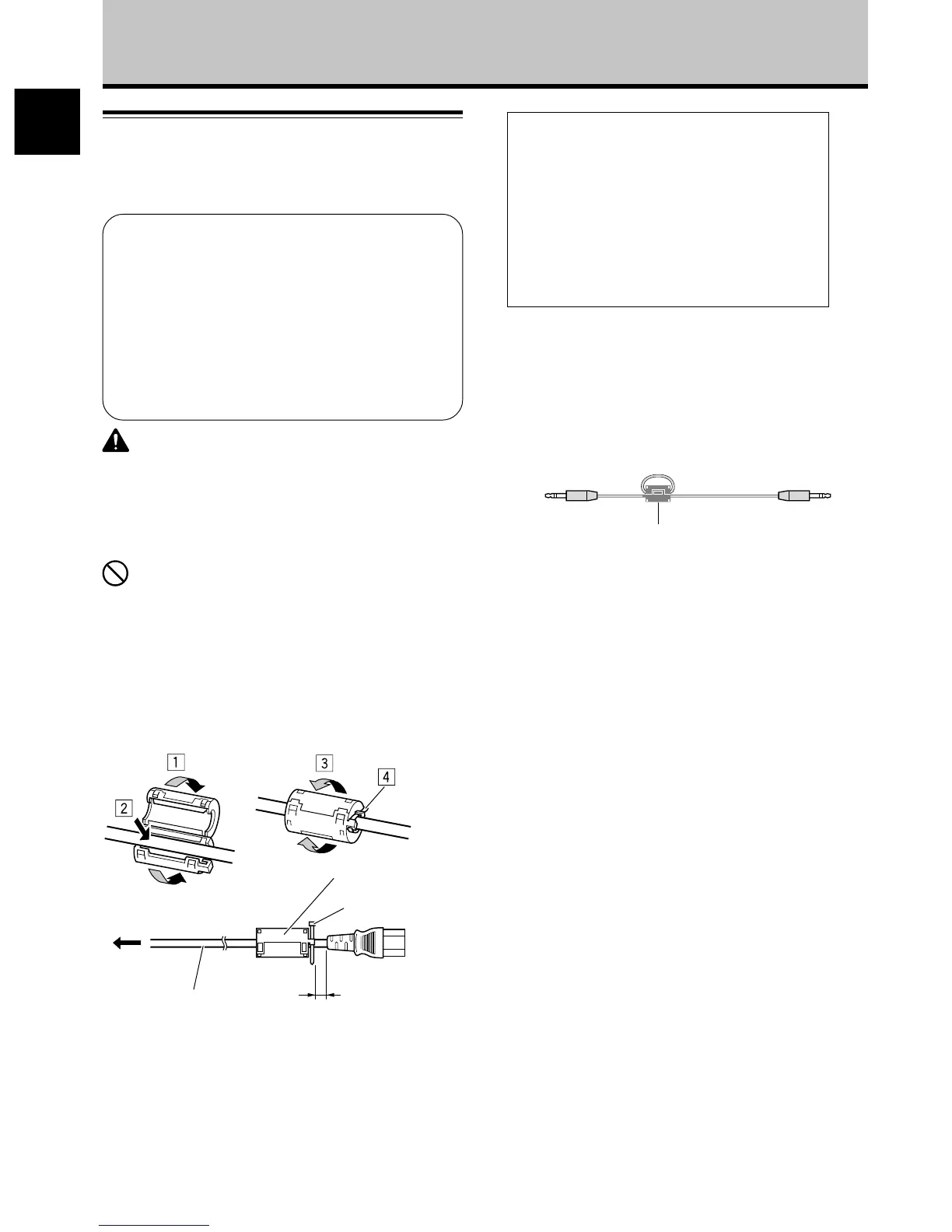

Attaching the ferrite cores
To help prevent noise, attach the accessory ferrite cores
to the both connector ends of the power cord as shown
in the accompanying illustration. Use the provided cable
tie to prevent the ferrite core from slipping on the cable.
Ferrite core
Cable tie
AC power cord
To power
outlet
As close as possible
To AC IN
CAUTION
The MAIN POWER switch on this unit will not
completely shut off all power from the AC outlet.
Since the power cord serves as the main disconnect
device for the unit, you will need to unplug it from
the AC outlet to shut down all power. Therefore,
make sure the unit has been installed so that the
power cord can be easily unplugged from the AC
outlet in case of an accident. To avoid fire hazard,
the power cord should also be unplugged from the
AC outlet when left unused for a long period of time
(for example, when on vacation).
D3-4-2-2-2a_A_En
Note
Regarding the audio cable, attach the supplied ferrite core. If you
do not do this, this monitor will not conform to mandatory CE or
C-Tick standards.
Wind the audio cable (not supplied) around the ferrite core once,
and then fasten the catch.
Audio cable (not supplied)
Ferrite core
