PDP-433CMX
1
2
2
5
555
34
Refer to
"2.17 PANEL CHASSIS (43) ASSY
(AWU1067)".
NSP 1 ADR CONNECT A Assy AWZ6678
NSP 2 ADR CONNECT B Assy AWZ6679
NSP 3 ADR CONNECT C Assy AWZ6680
NSP 4 ADR CONNECT D Assy AWZ6681
NSP 5 BRIDGE A Assy AWZ6728
NSP 6 BRIDGE B Assy AWZ6729
NSP 7 BRIDGE C Assy AWZ6730
NSP 8 BRIDGE D Assy AWZ6731
NSP 9 ADR RESONANCE Assy AWZ6751
10 Screw ABA1301
11 Screw VBB30P100FNI
12 Shading Sheet (43) AMR3313
13 Rear Coner Label AAX2862
Mark No. Description Part No.
•

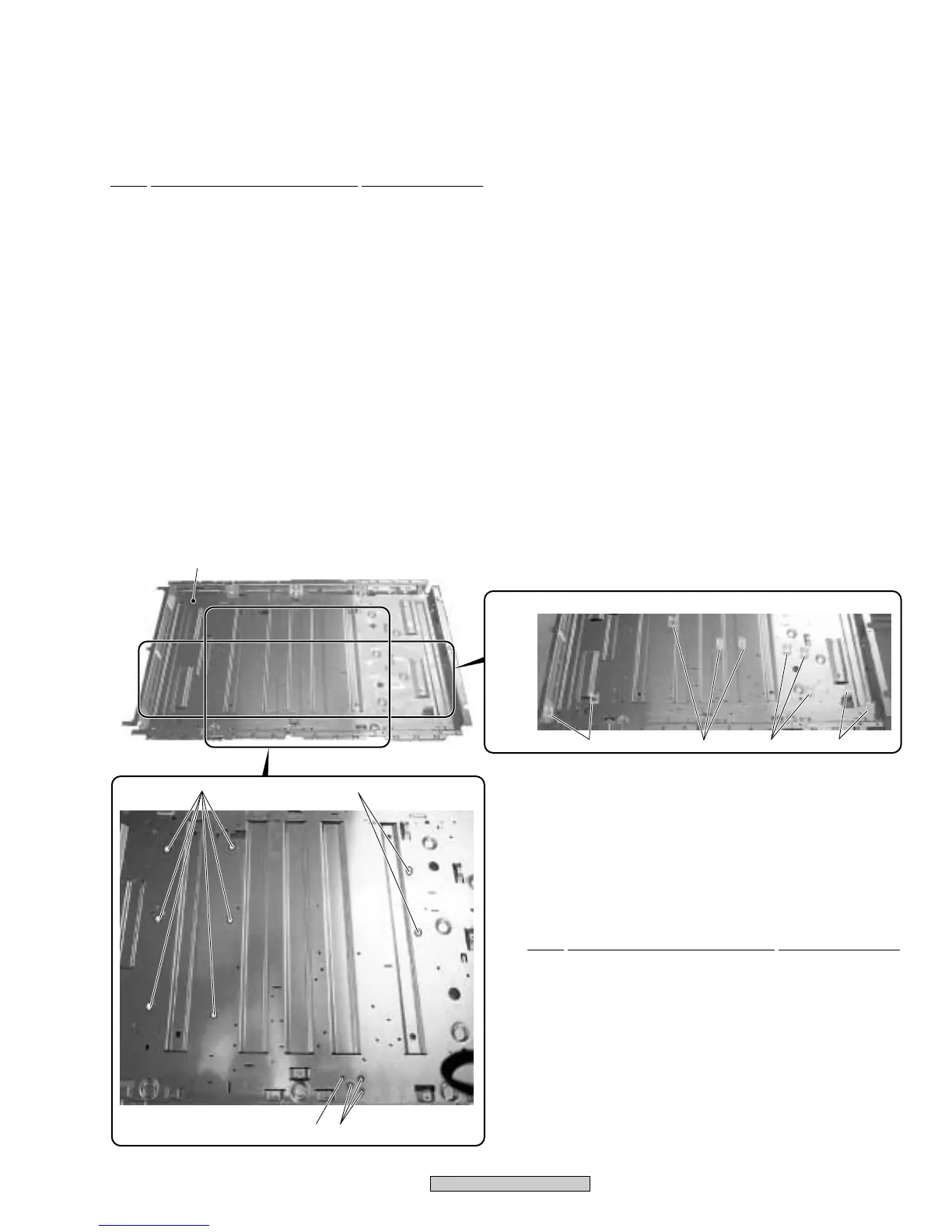

UNDER LAYER SECTION (1) PARTS LIST
2.3 UNDER LAYER SECTION (2)
1 Panel Chassis (43) Assy AWU1067
[Refer to "2.17 PANEL CHASSIS (43) ASSY".]
2 Circuit Board Spacer AEC1872
3 Circuit Board Spacer AEC1873
NSP 4 PCB Spacer AEC1121
5 Wire Saddle AEC1904
Mark No. Description Part No.
•
UNDER LAYER SECTION (2) PARTS LIST
To Next Page
