Pioneer PDP-4345HD

05Part Names
English
13
En

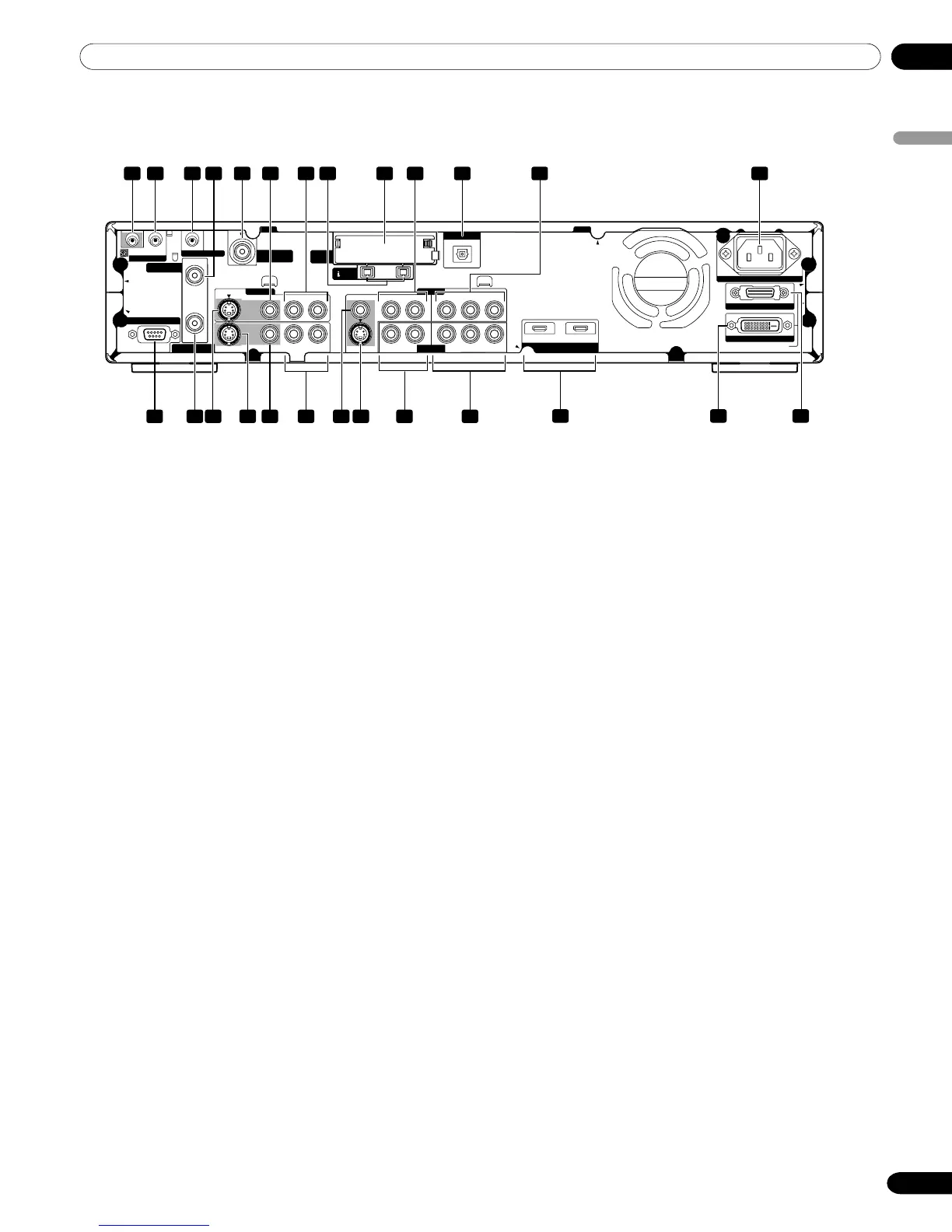

Rear view
1 CONTROL IN terminal
2 CONTROL OUT terminal
3 VCR CONTROL terminal
4 ANTENNA B IN terminal
5 ANTENNA/CABLE A IN terminal
6 INPUT 2 terminal (VIDEO)
7 INPUT 2 terminals (AUDIO)
8 i.LINK terminals
9 Cable CARD slot
10 INPUT 1 terminals (AUDIO)
11 DIGITAL OUT terminal (OPTICAL)
12 INPUT 1 terminals
(COMPONENT VIDEO: Y, C
B/PB, CR/PR)
13 AC IN terminal
14 RS-232C terminal (used for factory setup)
15 ANTENNA B OUT terminal
16 INPUT 2 terminal (S-VIDEO)
17 MONITOR OUT terminal (S-VIDEO)
18 MONITOR OUT terminal (VIDEO)
19 MONITOR OUT terminals (AUDIO)
20 INPUT 1 terminal (VIDEO)
21 INPUT 1 terminal (S-VIDEO)
22 INPUT 3 terminals (AUDIO)
23 INPUT 3 terminals
(COMPONENT VIDEO: Y, C
B/PB, CR/PR)
24 HDMI terminals (INPUT1/INPUT3)
25 SYSTEM CABLE terminal (WHITE)
26 SYSTEM CABLE terminal (BLACK)
MONITOR OUT
INPUT 1
INPUT 2
VCR CONTROL
INPUT 3
ANTENNA B
CONTROL
IN OUT
S-VIDEO
S-VIDEO
VIDEO
VIDEO
R-AUDIO-L
R-AUDIO-L
COMPONENT VIDEO
Y
Y
C
B /P B
C B /P B
C R /P R
C R /P R
S-VIDEO
R-AUDIO-L
R-AUDIO-L
VIDEO
S400
INPUT 1 INPUT 3
HDMI
DIGITAL OUT
OPTICAL
SERVICE ONLY
AC IN
BLACK
WHITE
SYSTEM CABLE
ANTENNA/
CABLE A IN
INPUT 2
INPUT 1
IN
OUT
Cable
CARD
Cable
CARD
(TS)
INPUT 3
1 2 3 4 5 6 7 9 10 11 13
14
15 16 17 18 19 20 21 22 23
25 2624
