PDP-505PE
72
1234
1234
C
D
F
A
B
E
2

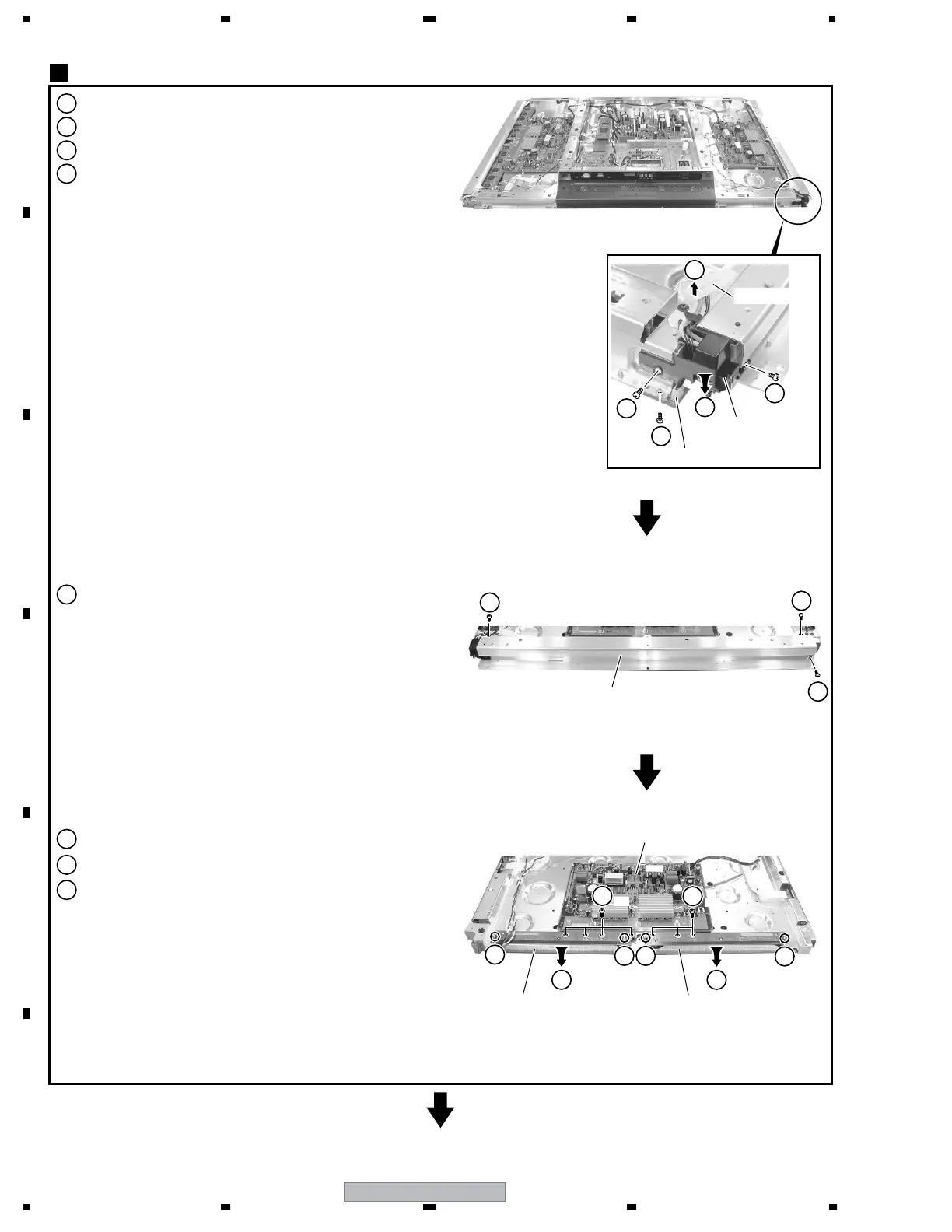

50 X DRIVE Assy
X CONNECTOR A Assy
X CONNECTOR B Assy
5
5
5
1
2
2
3
4
88
6
×3
6
×4
PANEL LED Assy
7
7 7
7
2
Remove the two screws.
1
Remove the PANEL LED Assy by removing one screw.
3
Remove the flat clamp and remove the wires.
4
Remove the Switch Holder.
5
Remove the three screws to remove the Front Chassis VR (50).
6
Remove the seven screws.
7
Remove the four PCB spacers.
8
Remove the X CONNECTOR A and B Assy's.
X CONNECTOR A and B Assy's
Flat Clamp
Switch Holder
Front Chassis VR (50)
To Next Page
