Pioneer PDP-505PU User Manual

PDP-505PE
73
5678
56
7
8
C
D
F
A
B
E
3
50 Y DRIVE Assy
50 SCAN A Assy
50 SCAN B Assy
4
4
4
1
1
2
3
99
5
7
8
8
8
8
6
6
×3
5
×3
7
2

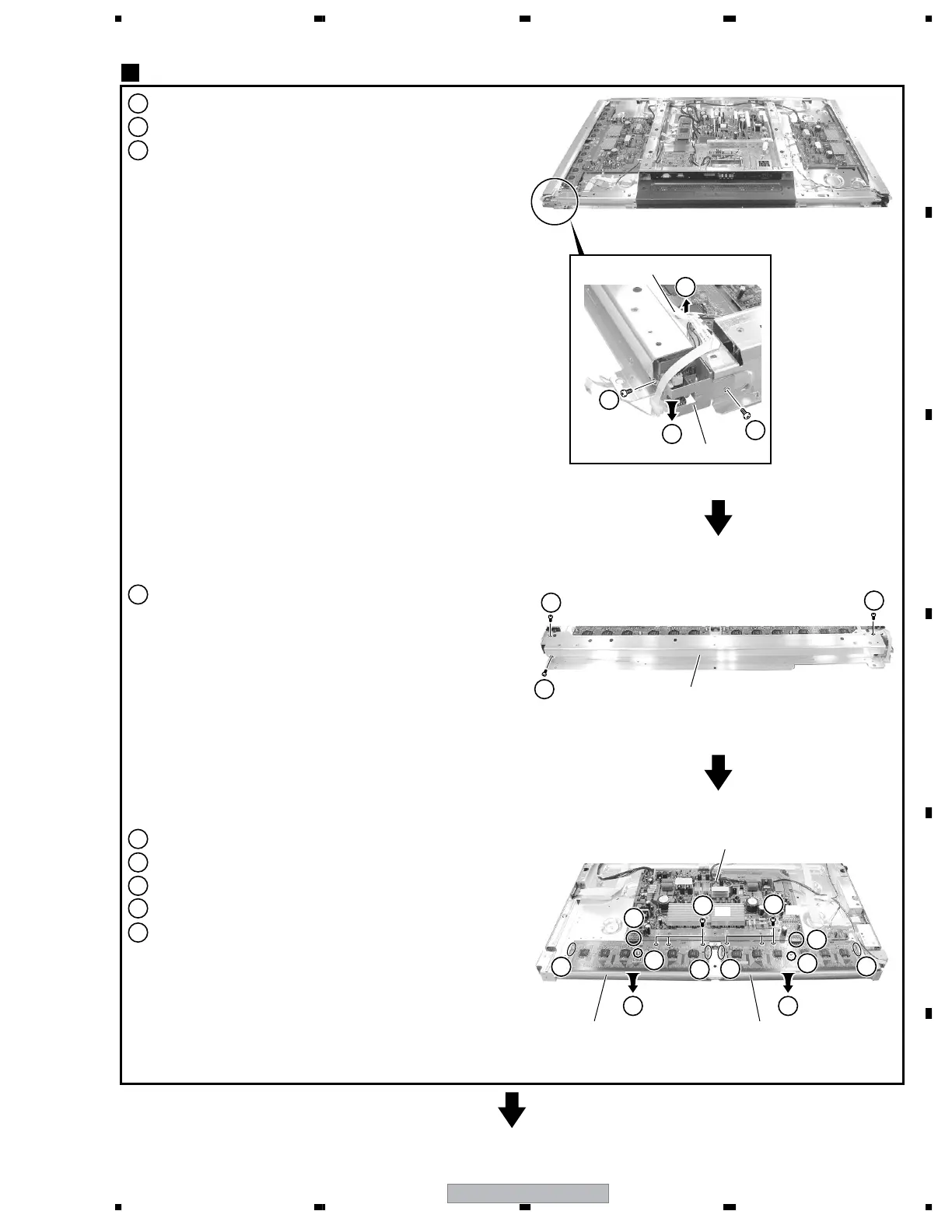

Remove the flat clamp and remove the wires.
1
Remove the two screws.
3
Remove the IR Holder.
4
Remove the three screws to remove the Front Chassis VL (50).
5
Remove the six screws.
6
Disconnect the two pin connectors.
7
Remove the two PCB spacers.
8
Remove the four edge card spacers.
9
Remove the 50 SCAN A and B Assy's.
50 SCAN A and B Assy's
Flat Clamp
IR Holder
Front Chassis VL (50)
