PIPER SENECA II SERVICE MANUAL

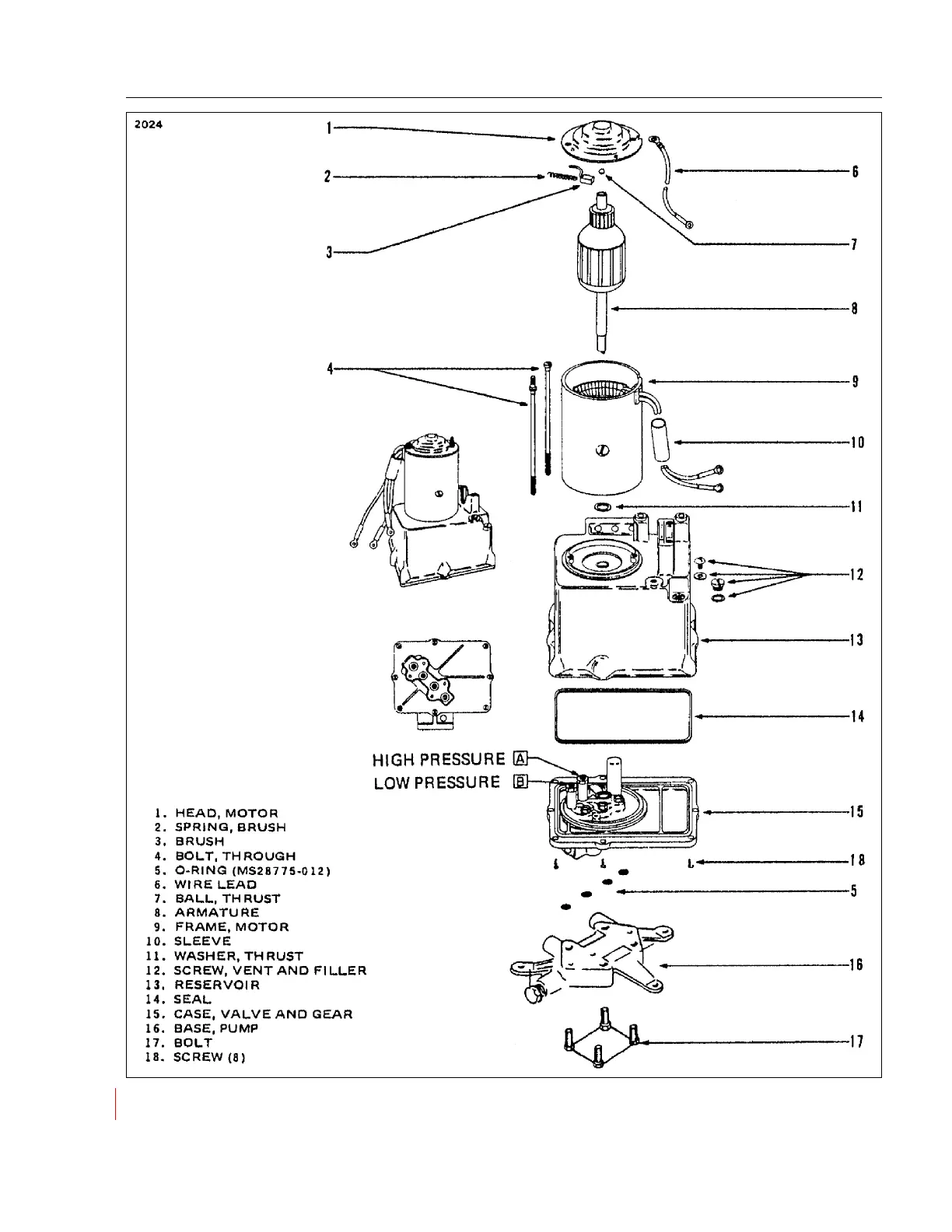

Figure 6-3. Hydraulic Pump/Reservoir, Exploded View (Original Equipment - Prestolite)
01/01/09 VI - HYDRAULIC SYSTEM
1I11
2024
2-----------
3----
1. HEAO, MOTOR
2. SPRING, BRUSH
3, BRUSH
4. SOLT, TH ROUGH
5. 0-RING (MS28775•012)
6. WIRE LEAC
7. BALL, TH RUST
8. ARMATURE
9. FRAME, MOTOR
10. SLEEVE
11. WASHER, THRUST
12. SCREW, VENT AND FILLER
13, RESERVOIR
14. SEAL
15. CASE, VALVE AND GEAR
16. BASE, PUMP
17. BOLT
18. SCREW (8)
HIGH PRESSURE
LOW PRESSURE
----------7
-----------9
a----10
~
~~ ~
I ~ ~
12
I, ---13
-------14
-------15
--------18
-
-
---------------5
