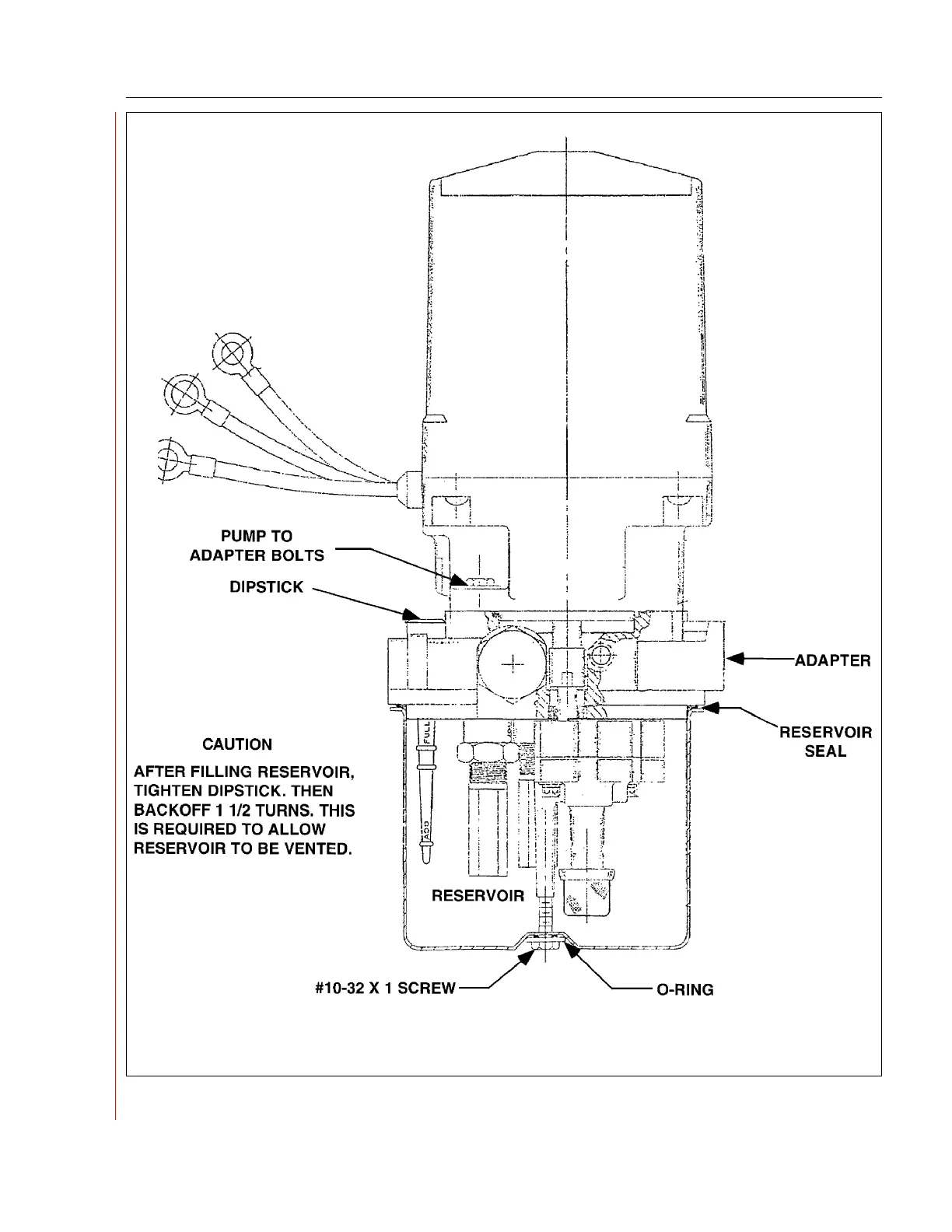

Figure 6-5a. Hydraulic Pump - Oildyne (Sheet 2 of 2)
01/01/09 VI - HYDRAULIC SYSTEM
1I14E
CAUTION
AFTER FILLING RESERVOIR,
TIGHTEN DIPSTICK. THEN
BACKOFF 1 1/2 TURNS. THIS
IS REQUIRED TO ALLOW
RESERVOIR TO BE VENTED.
#10-32 X 1 SCREW
0-RING
RESERVOIR
SEAL
