PIPER SENECA II SERVICE MANUAL
04/30/07 VII - LANDING GEAR AND BRAKE SYSTEM
1J9

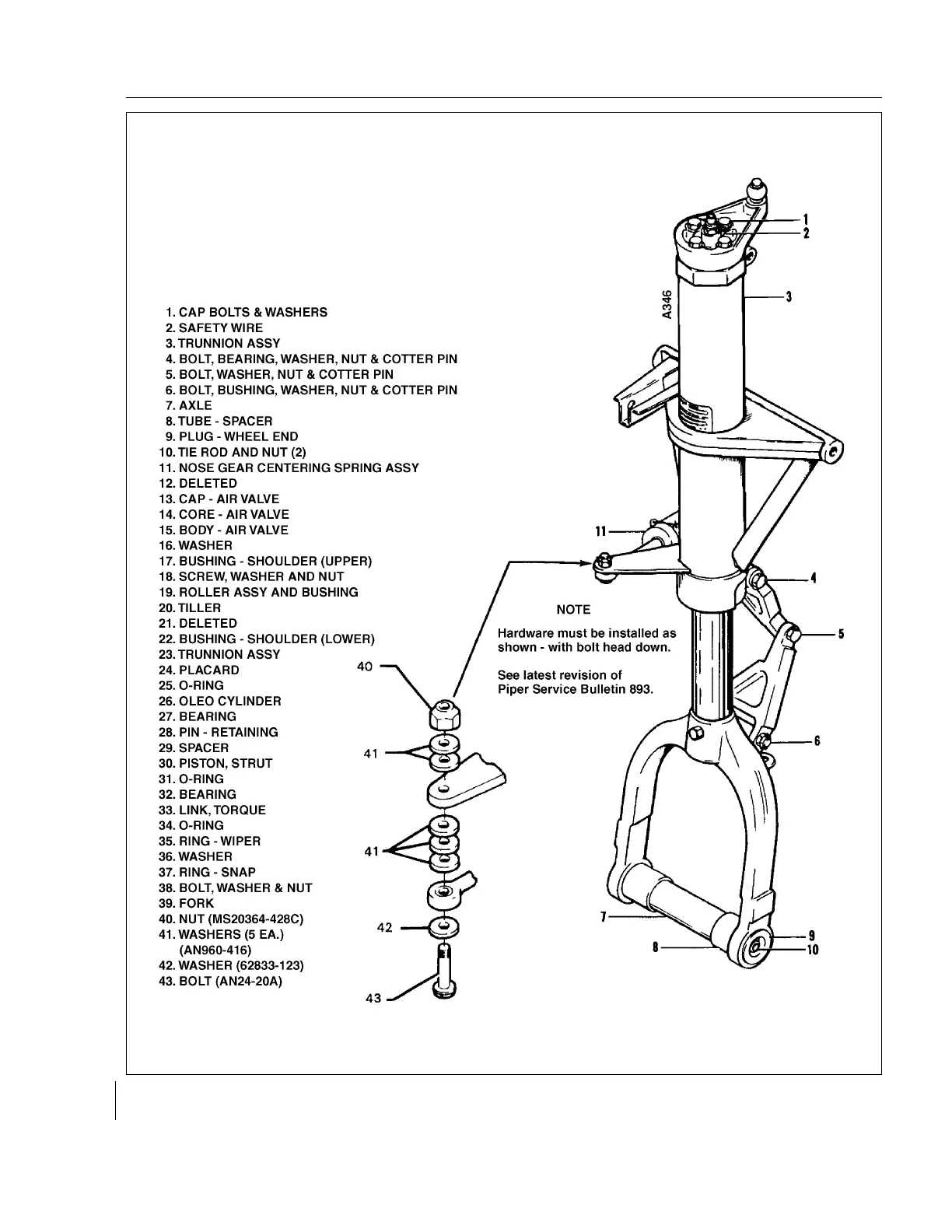

Figure 7-1. Nose Gear Oleo Strut Assembly (Sheet 1 of 2)
1. CAP BOLTS &WASHERS
2. SAFETY WIRE
3. TRUNNION ASSY
4. BOLT, BEARING, WASHER, NUT & COTTER PIN
5. BOLT, WASHER, NUT & COTTER PIN
6. BOLT, BUSHING, WASHER, NUT & COTTER PIN
7.AXLE
8. TUBE - SPACER
9. PLUG - WHEEL END
10. TIE ROD AND NUT (2)
11. NOSE GEAR CENTERING SPRING ASSY
12.DELETED
13. CAP- AIR VALVE
14. CORE - AIR VALVE
15. BODY - AIR VALVE
16. WASHER
17.
BUSHING- SHOULDER (UPPER)
18. SCREW, WASHER AND NUT
19. ROLLER ASSY AND BUSHING
20.TILLER
21. DELETED
22. BUSHING - SHOULDER (LOWER)
23. TRUNNION ASSY
24. PLACARD
25. O-RING
26. OLEO CYLINDER
27. BEARING
28. PIN - RETAINING
29.SPACER
30. PISTON, STRUT
31. O-RING
32. BEARING
33. LINK, TORQUE
34. O-RING
35. RING - WIPER
36.WASHER
37. RING - SNAP
38. BOLT, WASHER & NUT
39. FORK
40. NUT (MS20364-428C)
41. WASHERS (5 EA.)
(AN960-416)
42. WASHER (62833-123)
43. BOLT
(AN24-20A)
40
41
NOTE
Hardware
must be installed as
shown - with bolt head down.
See
latest revision of
Piper Service Bulletin 893.
3
1
2
