PIPER SENECA II SERVICE MANUAL
04/30/07 VII - LANDING GEAR AND BRAKE SYSTEM
1J17

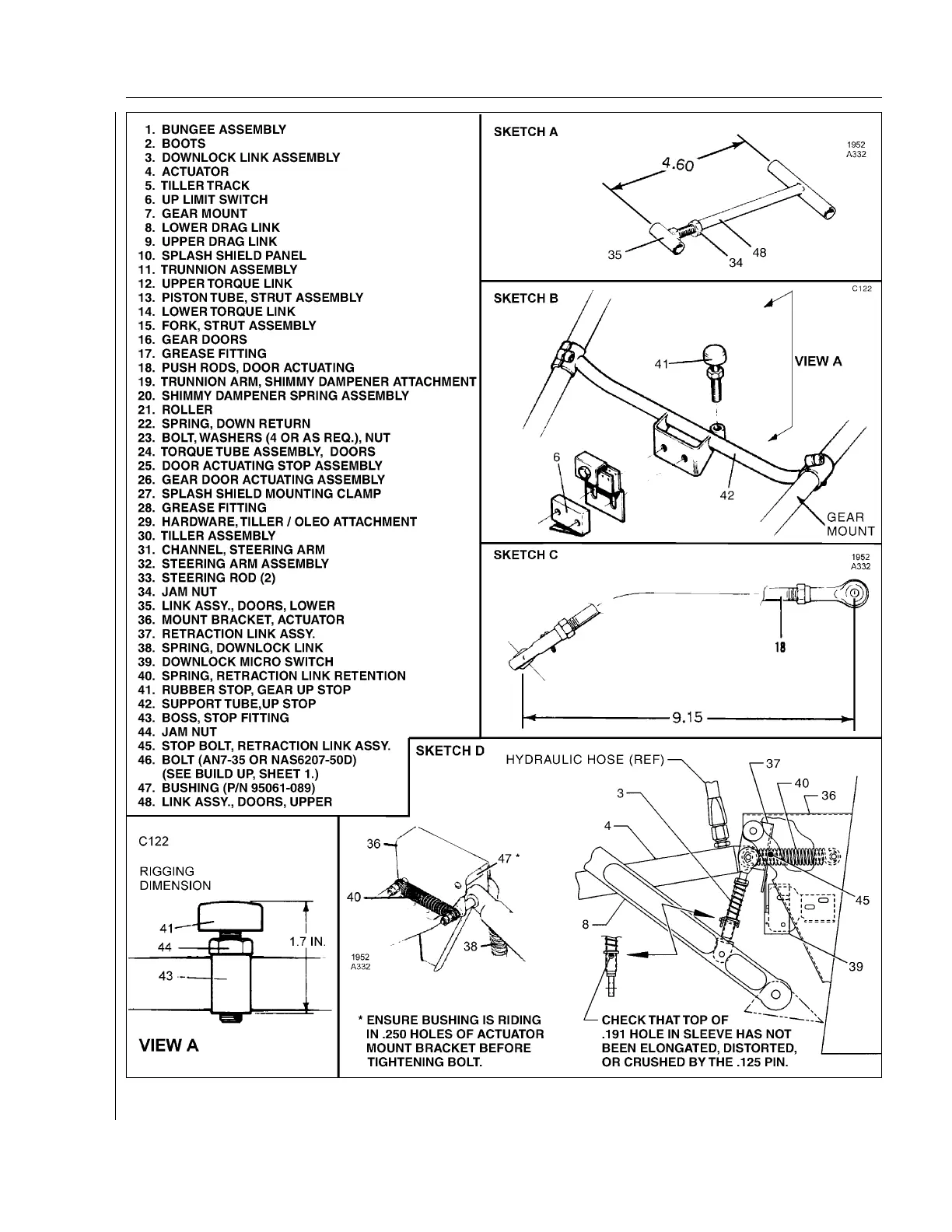

Figure 7-2. Nose Gear Installation (Sheet 2 of 2)
1. BUNGEE ASSEMBLY
2. BOOTS
3. DOWNLOCK
LINK ASSEMBLY
4. ACTUATOR
5. TILLER TRACK
6. UP LIMIT SWITCH
7. GEAR MOUNT
8. LOWER DRAG
LINK
9. UPPER DRAG LINK
10. SPLASH SHIELD PANEL
11. TRUNNION ASSEMBLY
12. UPPERTORQUE LINK
13. PISTON TUBE, STRUT ASSEMBLY
14. LOWER TORQUE
LINK
15. FORK, STRUT ASSEMBLY
16. GEAR DOORS
17. GREASE FITTING
18. PUSH RODS, DOOR ACTUATING
19. TRUNNION ARM, SHIMMY DAMPENER ATTACHMENT
20. SHIMMY DAMPENER SPRING ASSEMBLY
21. ROLLER
22. SPRING, DOWN RETURN
23. BOLT, WASHERS (4 OR
AS REQ.), NUT
24. TORQUE TUBE ASSEMBLY, DOORS
25. DOOR ACTUATING STOP ASSEMBLY
26. GEAR DOOR ACTUATING ASSEMBLY
27. SPLASH SHIELD MOUNTING CLAMP
28. GREASE FITTING
29. HARDWARE, TILLER / OLEO ATTACHMENT
30. TILLER ASSEMBLY
31. CHANNEL, STEERING ARM
32. STEERING ARM ASSEMBLY
33. STEERING
ROD (2)
34. JAM NUT
35. LINK ASSY., DOORS, LOWER
36. MOUNT BRACKET, ACTUATOR
37. RETRACTION
LINK ASSY.
38. SPRING, DOWNLOCK LINK
39. DOWNLOCK MICRO SWITCH
SKETCH A
4.6o~
<
35
34
SKETCH B
SKETCH C
VIEWA
18
1952
A332
C122
1952
A332
40. SPRING, RETRACTION LINK RETENTION
41. RUBBER
STOP, GEAR UP STOP
42. SUPPORT TUBE,UP STOP
43. BOSS, STOP FITTING
44. JAM NUT
✓
..... 1-------9.15 -------
45. STOP BOLT, RETRACTION LINK ASSY. SKETCH D
46. BOLT (AN7-35 OR NAS6207-50D)
(SEE BUILD
UP, SHEET 1.)
HYDRAULIC HOSE (REF)
3
47. BUSHING (P/N 95061-089)
48. LINK ASSY., DOORS, UPPER
C122
RIGGING
DIMENSION
43 -
VIEWA
I
1.7 IN.
* ENSURE BUSHING IS RIDING
IN .250 HOLES OF ACTUATOR
MOUNT BRACKET BEFORE
TIGHTENING BOLT.
'
8
JECKTHATTOP ~~ -----~
.191 HOLE IN SLEEVE HAS NOT
BEEN ELONGATED, DISTORTED,
OR CRUSHED BY THE .125 PIN.
