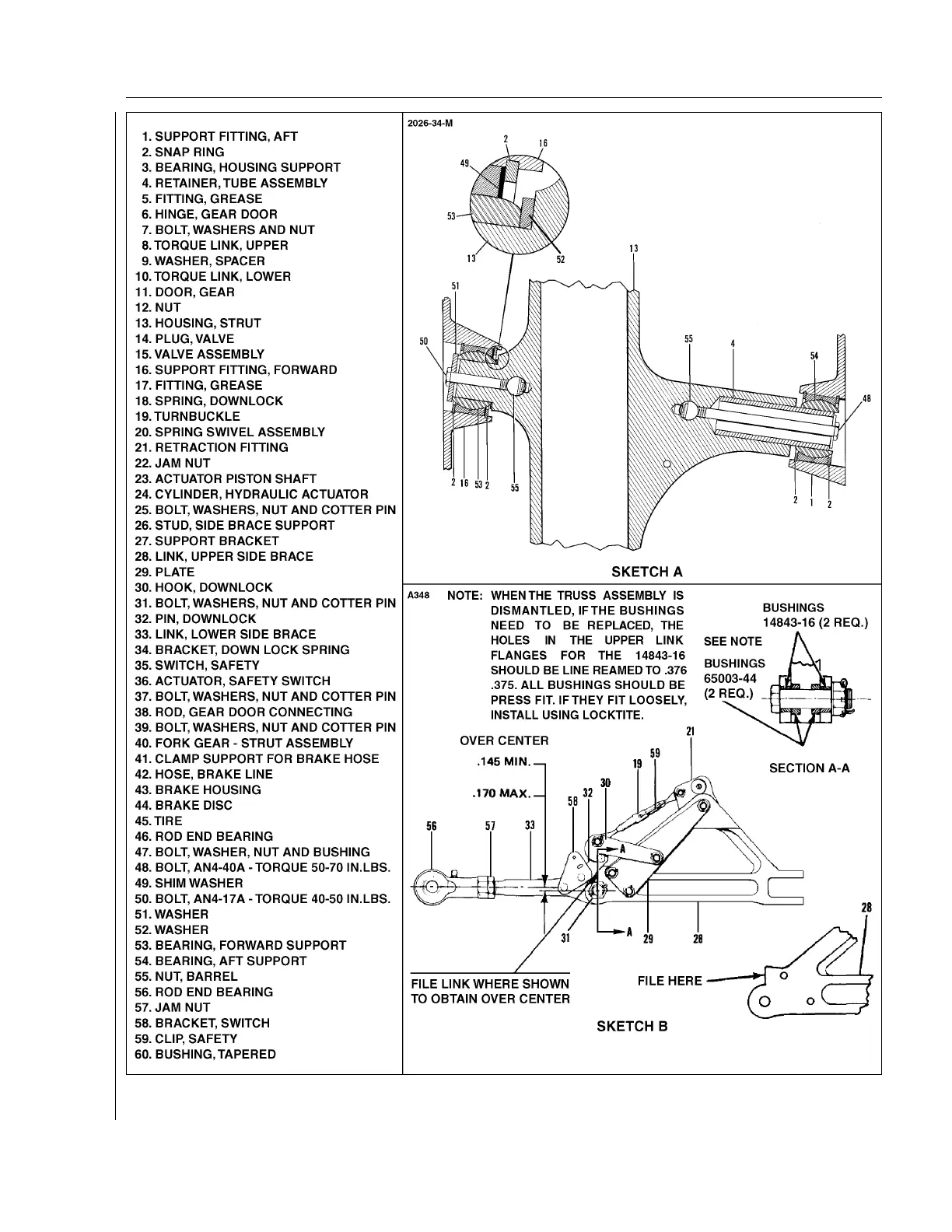

Figure 7-6. Main Gear Installation (Sheet 2 of 2)
1. SUPPORT FITTING, AFT
2.SNAP RING
3. BEARING, HOUSING SUPPORT
4. RETAINER, TUBE ASSEMBLY
5. FITTING, GREASE
6. HINGE, GEAR DOOR
7. BOLT, WASHERS AND NUT
8. TORQUE LINK, UPPER
9. WASHER, SPACER
10. TORQUE LINK, LOWER
11. DOOR, GEAR
12. NUT
13. HOUSING, STRUT
14. PLUG, VALVE
15. VALVE ASSEMBLY
16. SUPPORT FITTING, FORWARD
17. FITTING, GREASE
18. SPRING, DOWNLOCK
19. TURNBUCKLE
20. SPRING SWIVEL ASSEMBLY
21. RETRACTION FITTING
22.JAM NUT
23. ACTUATOR PISTON SHAFT
24. CYLINDER, HYDRAULIC ACTUATOR
25. BOLT, WASHERS, NUT
AND COTTER PIN
26. STUD, SIDE BRACE SUPPORT
27. SUPPORT BRACKET
28. LINK, UPPER SIDE BRACE
29. PLATE
30. HOOK, DOWNLOCK
31. BOLT, WASHERS, NUT
AND COTTER PIN
32. PIN, DOWNLOCK
33. LINK, LOWER SIDE BRACE
34. BRACKET, DOWN
LOCK SPRING
35. SWITCH, SAFETY
36. ACTUATOR, SAFETY SWITCH
37. BOLT, WASHERS, NUT
AND COTTER PIN
38. ROD, GEAR DOOR CONNECTING
39. BOLT, WASHERS, NUT
AND COTTER PIN
40. FORK GEAR - STRUT ASSEMBLY
41.
CLAMP SUPPORT FOR BRAKE HOSE
42. HOSE,
BRAKE LINE
43.
BRAKE HOUSING
44.
BRAKE DISC
45.TIRE
46. ROD END BEARING
47. BOLT, WASHER, NUT AND BUSHING
48. BOLT, AN4-40A - TORQUE 50-70 IN.LBS.
49. SHIM WASHER
50. BOLT, AN4-17A - TORQUE 40-50 IN.LBS.
51. WASHER
52.WASHER
53. BEARING, FORWARD SUPPORT
54. BEARING,
AFT SUPPORT
55. NUT, BARREL
56. ROD END BEARING
57.JAM NUT
58. BRACKET, SWITCH
59. CLIP, SAFETY
60. BUSHING, TAPERED
2026-34-M
13
55
2 16 53 2
SKETCH A
A348 NOTE: WHENTHE TRUSS ASSEMBLY IS
DISMANTLED, IFTHE BUSHINGS
NEED
TO BE REPLACED, THE
HOLES IN THE UPPER LINK
FLANGES
FOR THE 14843-16
SHOULD
BE LINE REAMED TO .376
.375.
ALL BUSHINGS SHOULD BE
PRESS
FIT. IF THEY FIT LOOSELY,
INSTALL USING LOCKTITE.
OVER CENTER
.1-46 MIN.
.170MAX.
57 33
30
58 32
FILE LINK WHERE SHOWN
TO OBTAIN OVER CENTER
59
19
21
A 29 28
FILE HERE
SKETCH B
BUSHINGS
14843-16 (2 REQ.)
SECTION
A-A
28
