PIPER SENECA II SERVICE MANUAL
VII - LANDING GEAR AND BRAKE SYSTEM 04/30/07
1K20

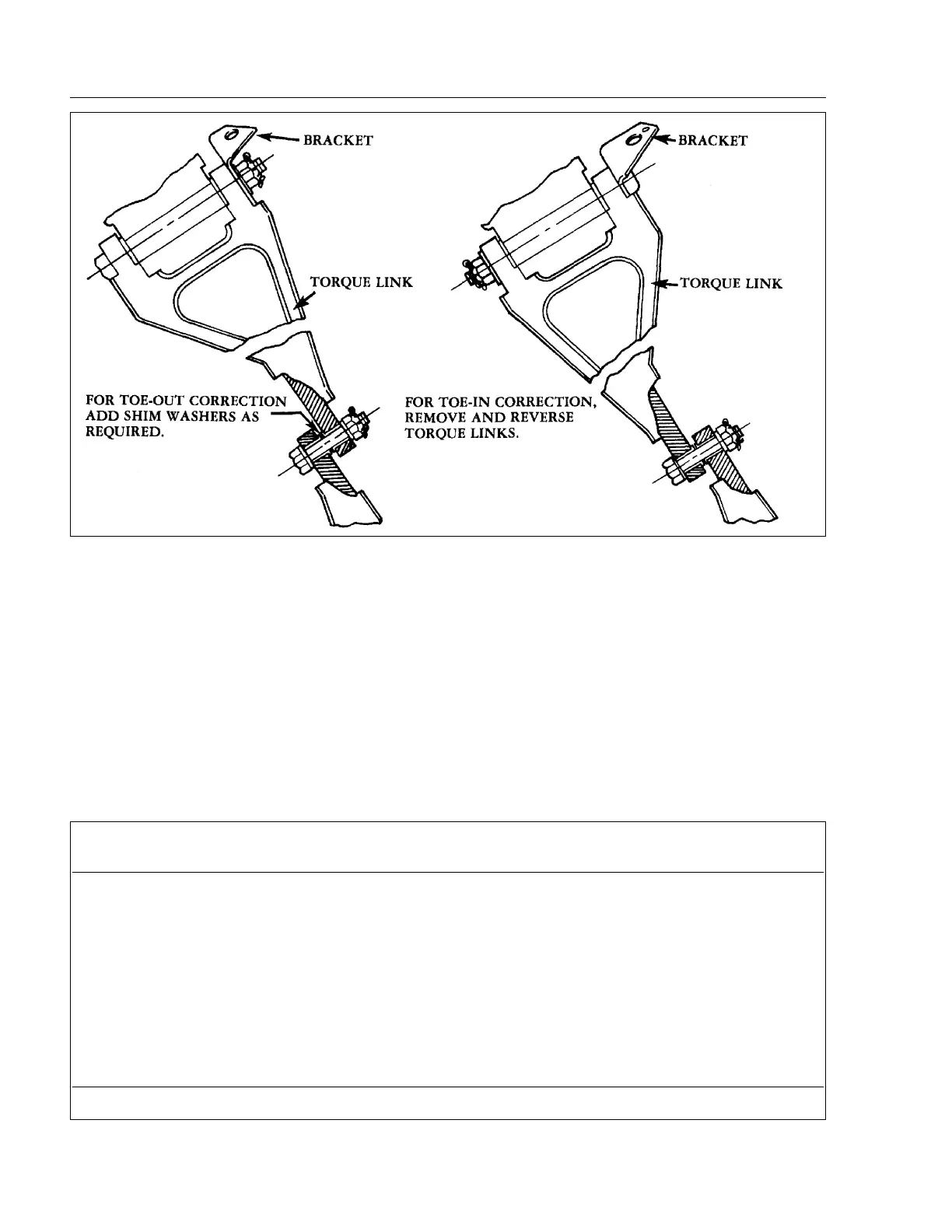

Figure 7-8. Toe-In/Toe-Out Adjustment
TABLE VII-III. TOE-IN AND TOE-OUT CORRECTION CHART
TOE-IN SHIM WASHERS WASHER AN 174
TOE-OUT WASHERS UNDER HEAD UNDER NUT BOLT
0° AN960-416 AN960-416(3) -14
0° 33" AN960-416 AN960-416 AN960-416(2) -14
0° 48" AN960-416L AN960-416 AN960-416 -14
AN960-416
1° 04" AN960-416(2) AN960-416 AN960-416 -14
1° 19" AN960-416L AN960-416L AN960-416 -14
AN960-416(2)
1° 35" AN960-416(3) AN960-416 AN960-416(2) -15
2° 35" AN960-416(4) AN960-416 AN960-416 -15
Max. Allow.
AN960-416L Washers .031 Thick AN960-416 Washers .062 Thick
FOR TOE-OUT CORRECTION
ADD SHIM WASHERS AS
REQUIRED.
FOR TOE-IN CORRECTION,
REMOVE
AND REVERSE
TORQUE LINKS.
TORQUE LINK
