PIPER SENECA II SERVICE MANUAL
VII - LANDING GEAR AND BRAKE SYSTEM 04/30/07
1L16

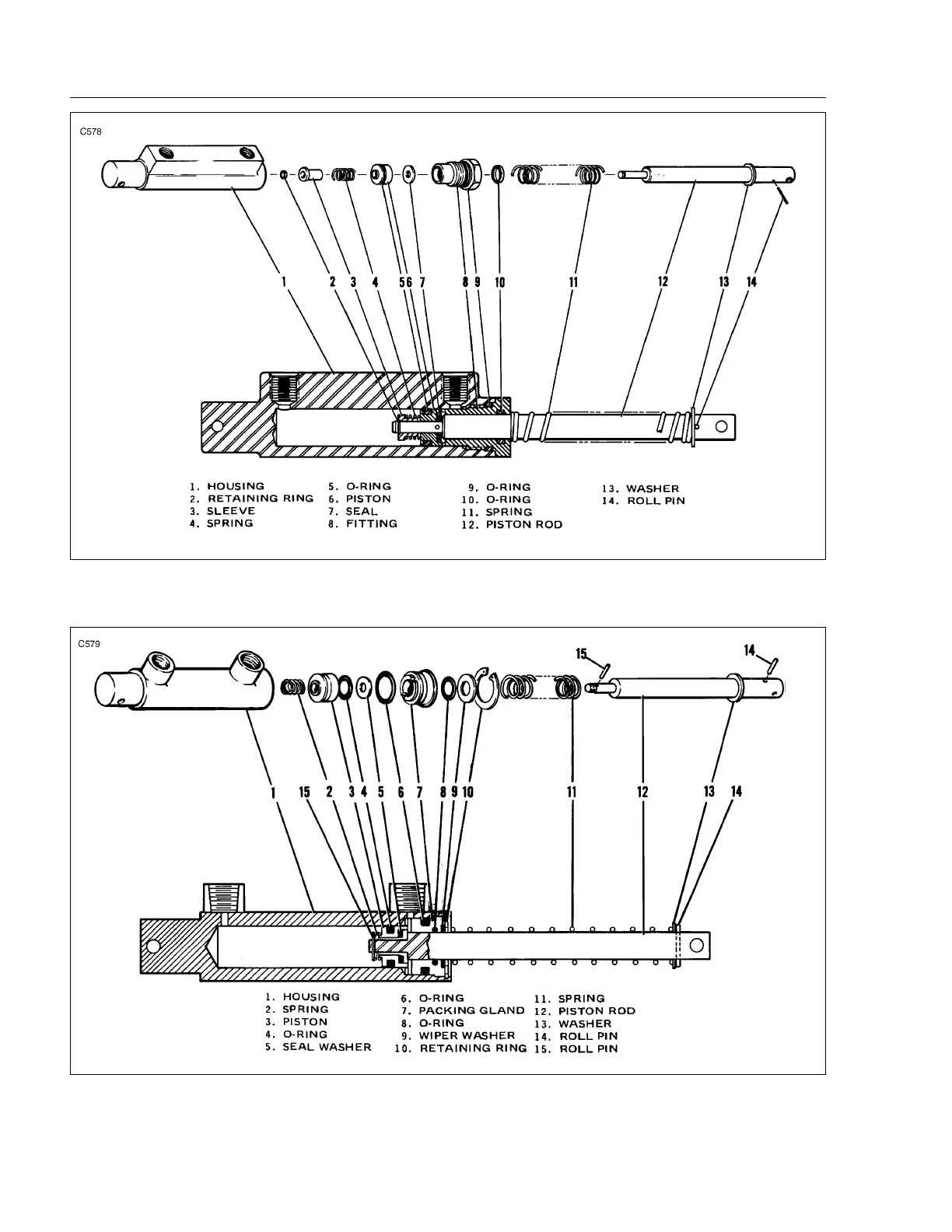

Figure 7-18. Brake Cylinder (17000) (Toe Brake)
Figure 7-19. Brake Cylinder (10-27) (Toe Brake)
C578
C579
1. HOUSING
2. RETAINING RING
3. SLEEVE
5. 0.RING
&. PISTON
7. SE:AL
9. O.RING
13. WASHER
10. Q..RING
14. ROLL PIN
11. SPRING
4. SPRING
8. FITTING
12. PISTON ROD
2 3 4 5 6 7 8 910
1. HOUSING
6. 0-RING
2. SPRING
7. PACKING GLAND
3. PISTON
8. 0-RING
4. 0-RING
9. WIPER WASHER
5. SEAL WASHER
10. RETAINING RING
11. SPRING
12. PISTON ROD
13, WASHER
14. ROLL PIN
15. ROLL PIN
12
13 14
"O
II
11
,.
