1. DE-ICER
2. SL.IP RING
3. BRUSH BL.OCK
4. TIMER
5. AMMETER
6. SHUNT
7. SWITCH
8, WIRING
9. CIRCUIT BREAKER
10. AIRCRAFT POWERSOURCE
Re.issued: 10/11/79
2
3
PIPER SENECA JI SERVICE MANUAL
RREWAU
CONNECTOR

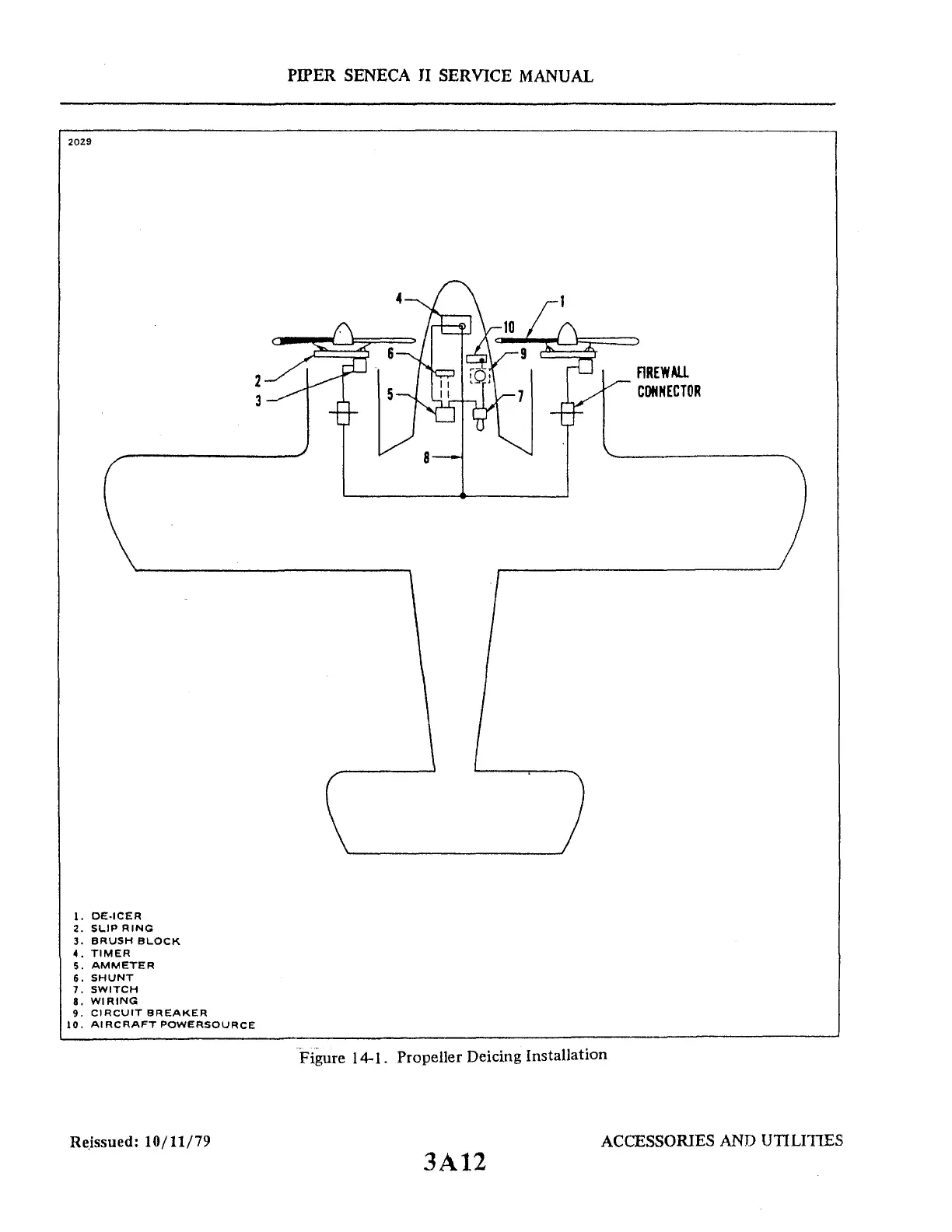

Figure 14-1. Propeller Deicing Installation
