ROUND BACK TV
(UNIVERSAL MONITOR PLATE)

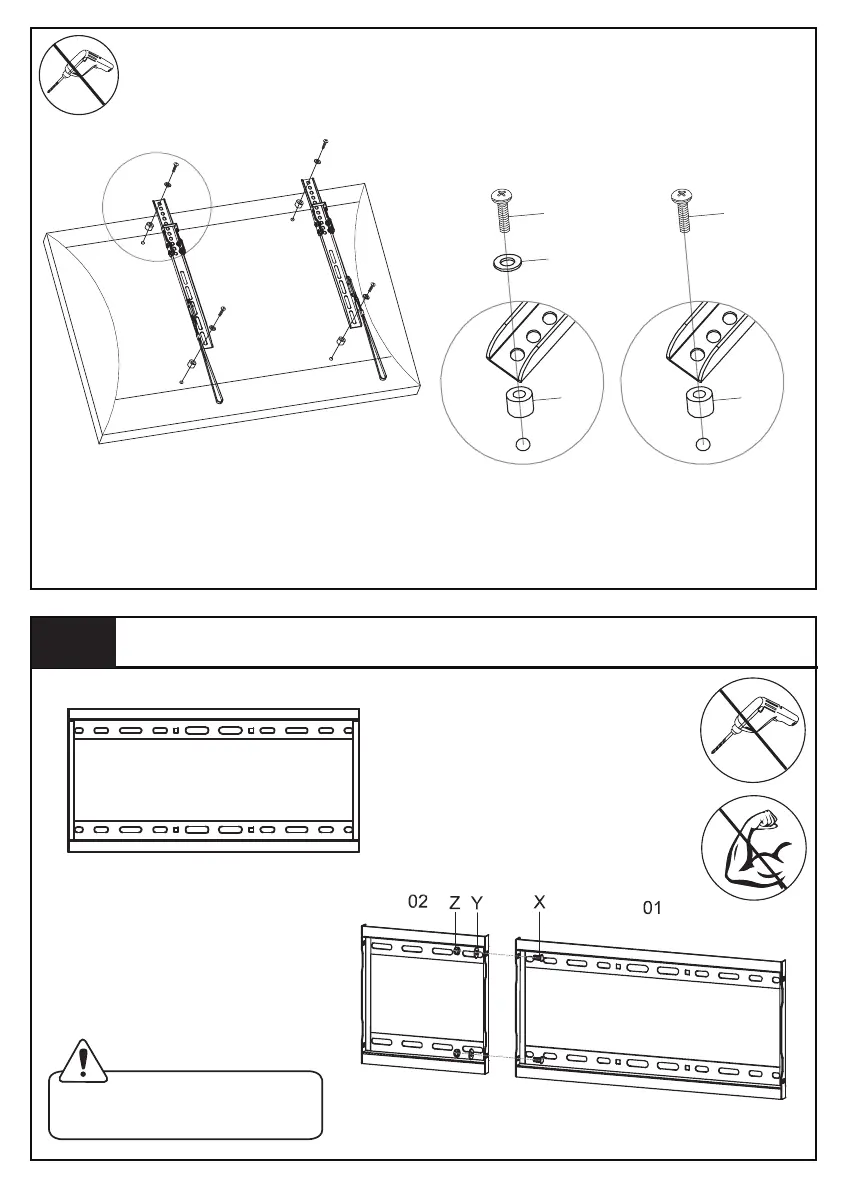

First, make sure the diameter of the bolt(M-A - M-G) fits your TV. Then, please see
the diagram above. You will need to thread the bolt into the TV using the washer
(M-H) and spacer (M-I or M-J) if necessary with a screwdriver(Not included). Please
make sure the monitor brackets(03/04) are vertically centered and level with each
other.
M-B/M-D
M-H
M-I
M-J
M-F/M-G
M-I
M-J
Step 3
Assemble Mount(Optional)
4
Medium
16’’ Studs
VESA:100X100-400X400mm
24’’ Studs
VESA:100X100-600X400mm
Large
DO NOT overtighten.
Tighten only until snug.
