4B-3

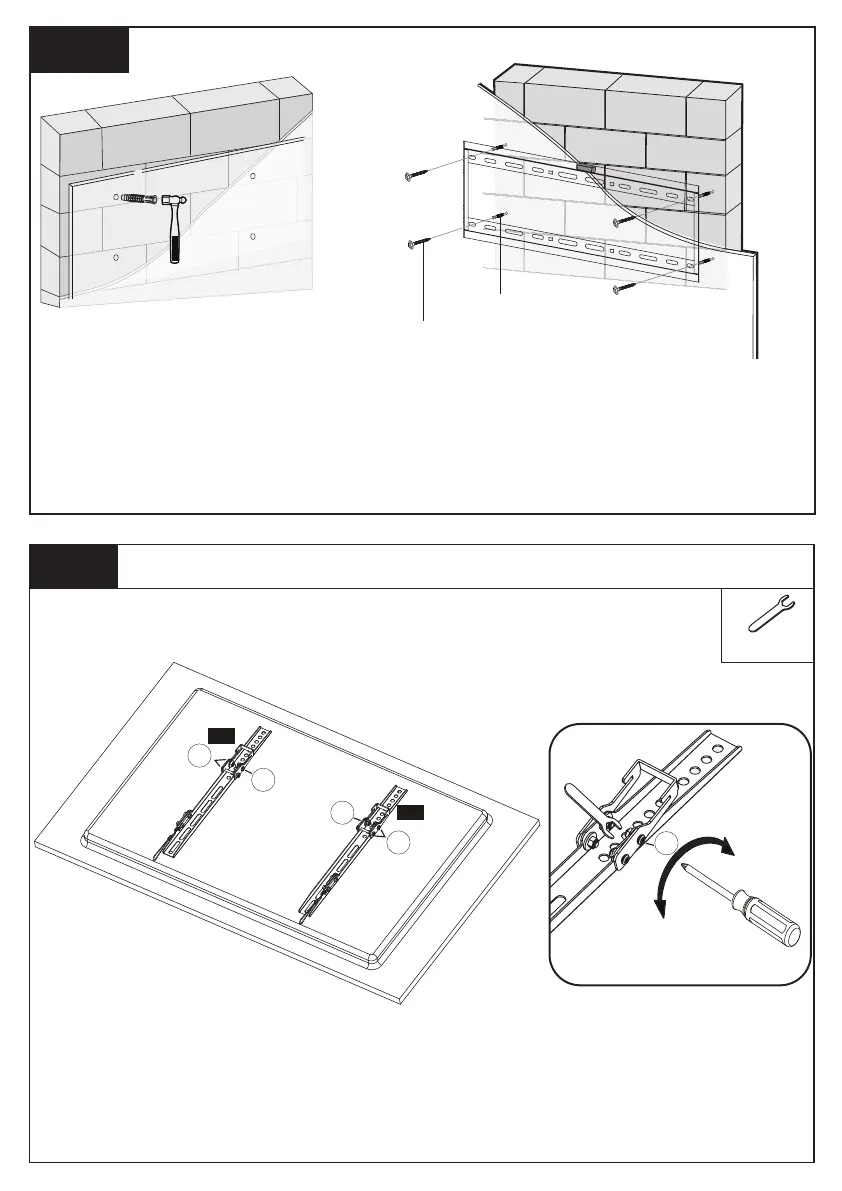

Use the hammer to
knock anchors [B] into
the wall.
8
A
B
Install wall plate using lag bolts [A] and anchors [B].
Be sure the anchors [B] are seated flush with the
concrete surface. Tighten the lag bolts [A] only until
they are pulled firmly against the wall plate. DO NOT
over-tighten the lag bolts [A].
Step 5
Ajust the Tilt Tension Screws [S] to Adjust the Tilt Angles of TV
8mm Wrench
03
04
Top of TV
Bottom of TV
S
S
S
S
S
Loosen the six tilt tension screws [S] on both brackets, adjust the hook of the
bracket to the desired angle, then tighten tilt tension screws with a wrench (not
included) and a screwdriver (not included) to fix the tilting angle of TV.
