Pipishell PILTK4 - Solid Concrete or Concrete Block Option

4B-1 4B-2
ø10mm
60mm

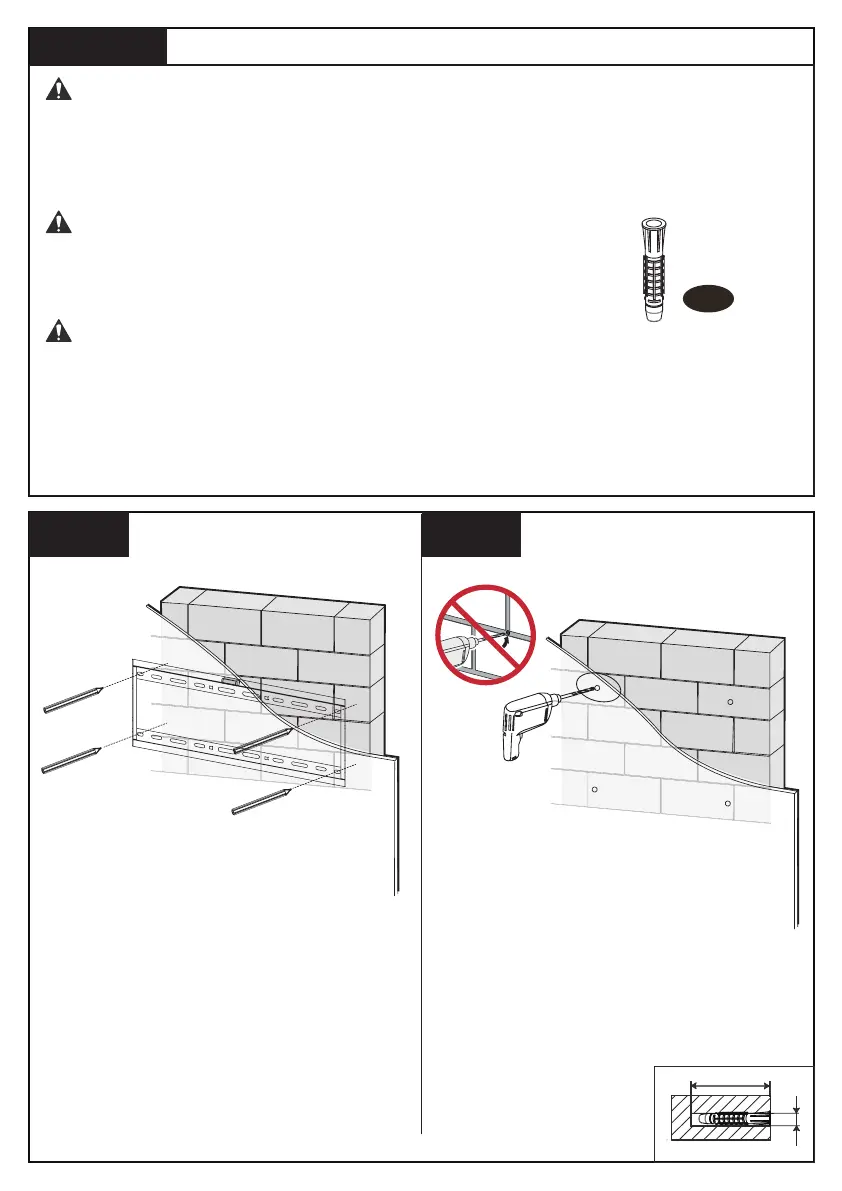

Position the wall plate at your
desired height, level the wall plate
and mark the pilot hole locations.
Drill 4 pilot holes using a 10mm
diameter drill bit. Make sure the
depth is not less than 60mm. Never
drill into the mortar between blocks.
7
Step 4B
Avoid potential personal injury or property damage! DO NOT
over-tighten the lag bolts [A]. Tighten the lag bolts [A] only until they
are pulled firmly against the wall plate [01] or [01/02]. .
WARNING:
Wall
Anchor
B
WARNING:
Ensure the wall plate is securely fastened to the wall
before continuing on to the next step.
WARNING:
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Mount the wall plate [01] or [01/02]. directly onto the concrete
surface
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
Solid Concrete or Concrete Block Option
