Pipishell PILTK4 - Attach Wall Plate to Wall

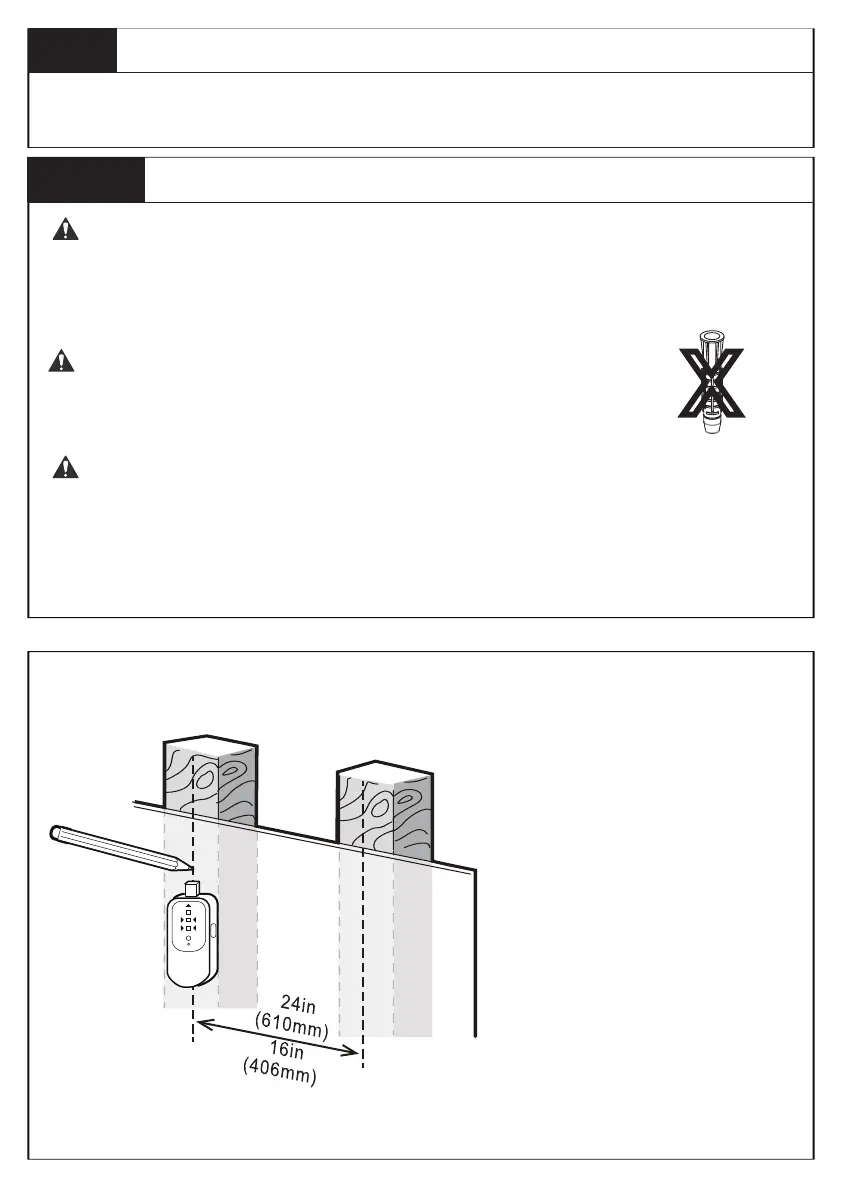

Use a stud finder(not
included)to locate wood
studs. Mark the edge and
center locations.
Step 4
Step 4A
X
For wood stud installation, follow STEP 4A
For concrete installation, follow STEP 4B
Attach Wall Plate [01] or [01/02] to Wall
Wood Stud Option
WARNING:
WARNING:
Ensure the wall plate is securely fastened to the wall
before continuing on to the next step.
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Nominal wood stud size: common 2 x 4 in. (51 x 102 mm) minimum
1½ x 3½ in. (38 x 89 mm)
● Stud center must be verified
WARNING:
Avoid potential personal injury or property damage! DO NOT
over-tighten the lag bolts [A]. Tighten the lag bolts [A] only
until they are pulled firmly against the wall plate
[01] or
[01/02]
.
5
