ENGLISH
22

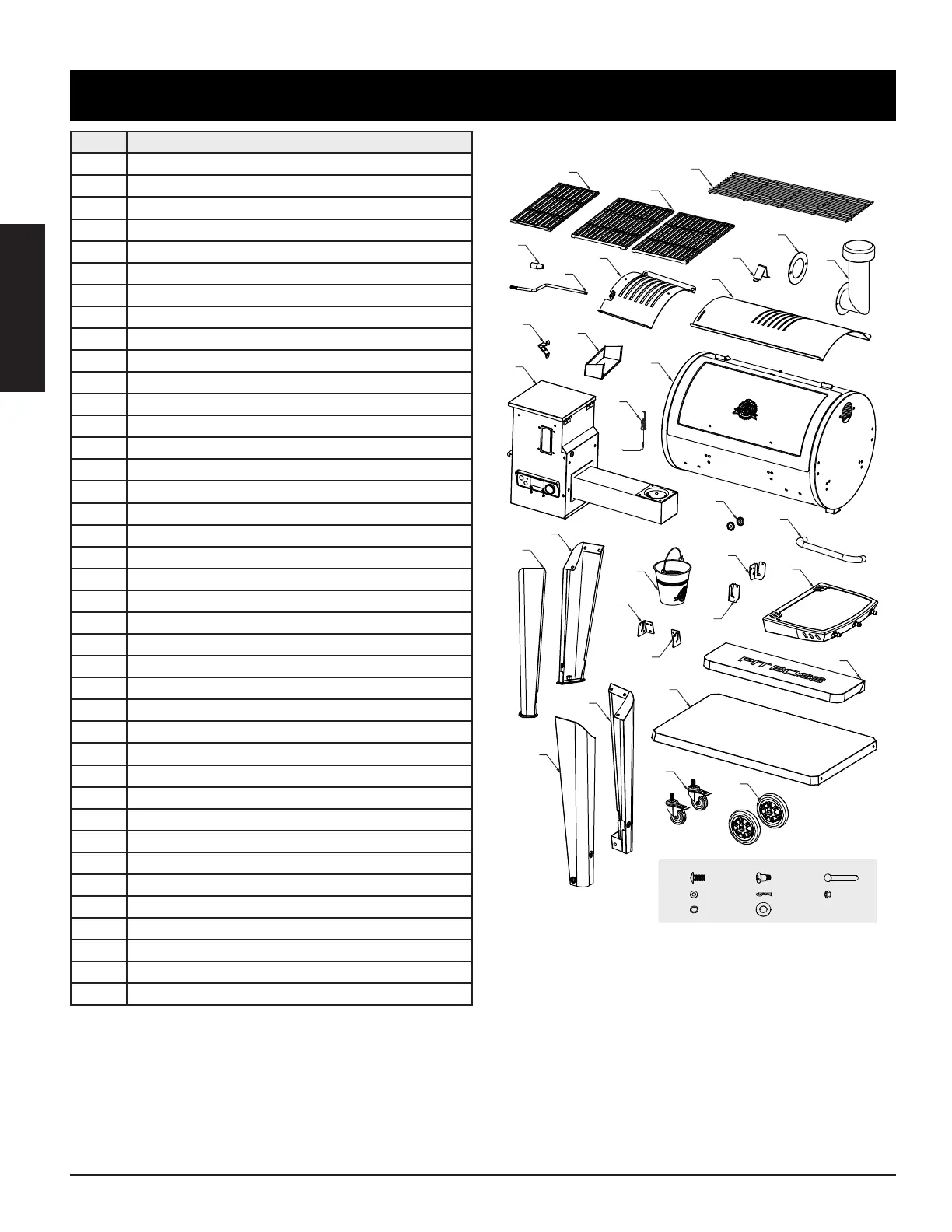

Part Description
1 Upper Cooking Rack (x1)
2 Cooking Grid A (x1)
3 Cooking Grid B (x2)
4 Lid Stopper (x1)
5 Chimney Gasket (x1)
6 Chimney (x1)
7 Flame Broiler Adjusting Bar Handle (x1)
8 Flame Broiler Adjusting Bar (x1)
9 Flame Broiler Slider (x1)
10 Flame Broiler Main Plate (x1)
11 Bottle Opener (x1)
12 Spice Box (x1)
13 Hopper Assembly (x1)
14 Main Barrel (x1)
15 Meat Probe (x1)
16 Lid Handle Bezel (x2)
17 Lid Handle (x1)
18 Support Leg / Front (x1)
19 Support Leg / Back (x1)
20 Support Leg for Wheel / Front (x1)
21 Support Leg for Wheel / Back (x1)
22 Grease Bucket (x1)
23 Side Shelf Bracket / Front (x1)
24 Side Shelf Bracket / Back (x1)
25 Side Shelf (x1)
26 Front Shelf Bracket / Left (x1)
27 Front Shelf Bracket / Right (x1)
28 Front Shelf (x1)
29 Bottom Shelf (x1)
30 Locking Caster Wheel (x2)
31 Wheel (x2)
A Screw (x30)
B Washer (x30)
C Locking Washer (x30)
D Step Screw (x4)
E Wheel Cotter Pin (x2)
F Wheel Washer (x2)
G Wheel Axle Pin (x2)
H Locking Nut (x4)
NOTE: Due to ongoing product development, parts are subject to change without notice.
1
2
3
5
4
11
12
14
18
16
17
20
21
23
24
25
26
27
28
29
30
31
22
19
9
7
8
10
6
15
13
